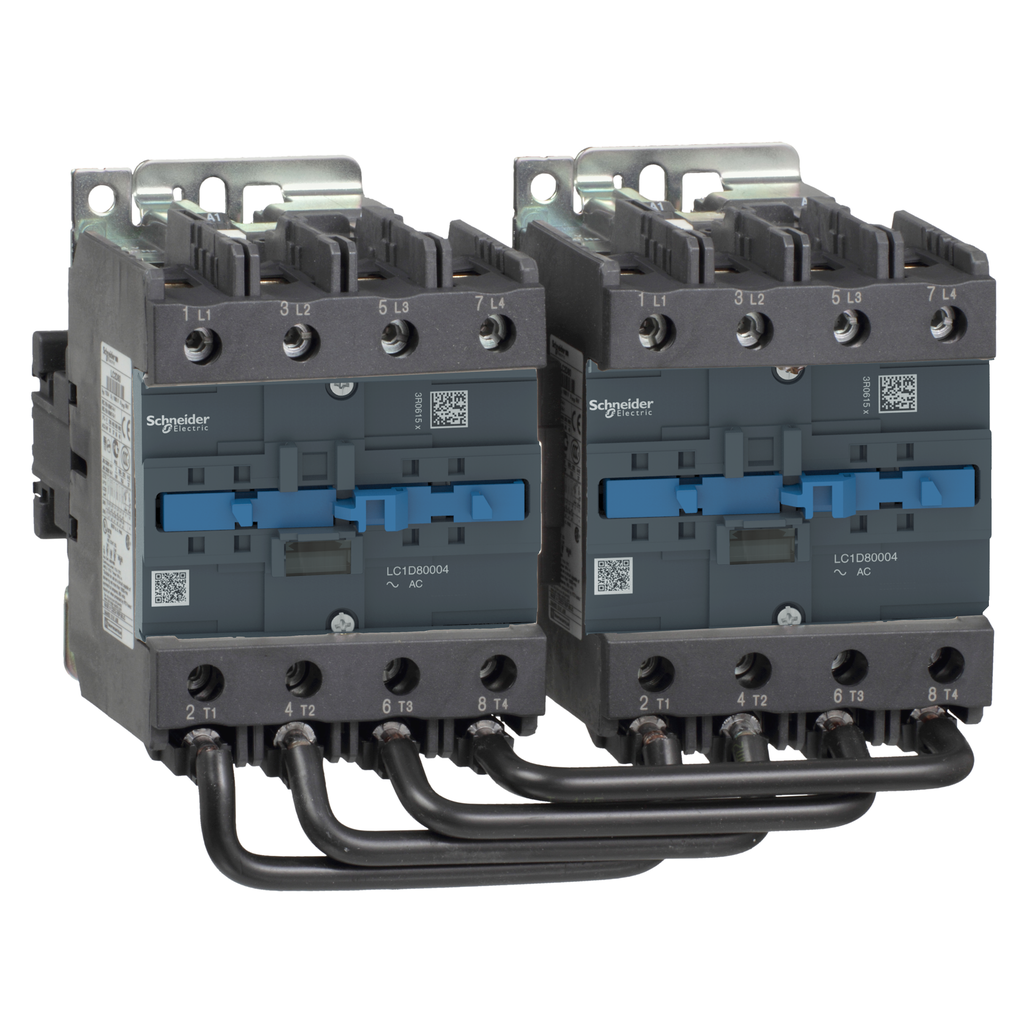

LC2D80004M5 - TeSys Deca changeover contactor , 4P(4 NO) , AC-1 ,

LC2D80004M5

TeSys Deca changeover contactor , 4P(4 NO) , AC-1 , <= 440V, 125A, 220V AC coil

Add to Quote Catalogue

Specifications

Mechanical Robustness	vibrations contactor open2 Gn, 5...300 Hz shocks contactor open8 Gn for 11 ms vibrations contactor closed3 Gn, 5...300 Hz shocks contactor closed10 Gn for 11 ms
Ambient Air Temperature For Operation	-40-60 °C 60-70 °C with derating
Height	127 mm
Climatic Withstand	IACS E10
Pollution Degree	3
Net Weight	3.2 kg
Flame Retardance	V1 conforming to UL 94
Ambient Air Temperature For Storage	-60-80 °C
Protective Treatment	TH IEC 60068-2-30
Ip Degree Of Protection	IP20 front face IEC 60529
Operating Altitude	0...9842.52 ft (0...3000 m)
Fire Resistance	850 °C IEC 60695-2-1
Width	207 mm
Depth	158 mm
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP110205EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	N/A
Eu Rohs Directive	Compliant
Control Circuit Voltage Limits	0.3...0.6 Uc -40-55 °C drop-out AC 50 Hz 0.85...1.1 Uc -40-55 °C operational AC 50 Hz
Inrush Power In Va	200-200 VA 50 Hz cos phi 0.75 (at 20 °C)
Coil Technology	without built-in suppressor module
Hold-In Power Consumption In Va	20-20 VA 50 Hz cos phi 0.3 (at 20 °C)
Heat Dissipation	6-10 W 50 Hz
Country of Origin	Czechia
Width	207 mm
Height	127 mm
Weight	3.2 kg
Product Certifications	UL CSA RINA CCC DNV-GL LROS (Lloyds register of shipping) BV UKCA EAC CB
Interlocking Type	mechanical
[Uc] Control Circuit Voltage	220 V AC 50 Hz
[Ue] Rated Operational Voltage	power circuit <= 690 V AC 25...400 Hz power circuit <= 300 V DC
Power Dissipation Per Pole	12.5 W AC-1
Average Impedance	0.8 mOhm - Ith 125 A 50 Hz for power circuit
[Ith] Conventional Free Air Thermal Current	125 A (at 60 °C) for power circuit
Mounting Support	plate rail
Control Circuit Type	AC 50 Hz
Standards	CSA C22.2 No 60947-4-1 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.4
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Contactor Application	resistive load
Rated Breaking Capacity	1100 A at 440 V for power circuit conforming to IEC 60947
Product Or Component Type	changeover contactor
Irms Rated Making Capacity	1100 A at 440 V for power circuit conforming to IEC 60947
Product Name	TeSys Deca
Associated Fuse Rating	200 A gG at <= 690 V coordination type 1 for power circuit 160 A gG at <= 690 V coordination type 2 for power circuit
[Uimp] Rated Impulse Withstand Voltage	8 kV IEC 60947
Connections - Terminals	control circuit screw clamp terminals 1 1-4 mm²flexible without cable end control circuit screw clamp terminals 2 1-4 mm²flexible without cable end control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end control circuit screw clamp terminals 1 1-4 mm²solid control circuit screw clamp terminals 2 1-4 mm²solid control circuit screw clamp terminals 1 1-2.5 mm²flexible with cable end power circuit connector 1 4-50 mm²flexible without cable end power circuit connector 2 4-25 mm²flexible without cable end power circuit connector 1 4-50 mm²flexible with cable end power circuit connector 2 4-16 mm²flexible with cable end power circuit connector 1 4-50 mm²solid power circuit connector 2 4-25 mm²solid
Range	TeSys
Pole Contact Composition	4 NO
Device Presentation	preassembled, with prewired power connections
Utilisation Category	AC-1 AC-3 AC-3e AC-4
[Ie] Rated Operational Current	125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit 80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit 80 A (at <60 °C) at <= 440 V AC AC-3e for power circuit 55 A (at <60 °C) at <= 400 V AC AC-4 for power circuit
Maximum Operating Rate	3600 cyc/h 60 °C
Tightening Torque	control circuit 1.2 N.m screw clamp terminals flat Ø 6 mm control circuit 1.2 N.m screw clamp terminals Philips No 2 power circuit 12 N.m connector flat Ø 6 to Ø 8 mm power circuit 12 N.m connector hexagonal 4 mm control circuit 1.2 N.m screw clamp terminals pozidriv No 2
Electrical Durability	0.8 Mcycles 125 A AC-1 <= 690 V
Mechanical Durability	10 Mcycles
Poles Description	4P
Operating Time	20...35 ms closing 6...20 ms opening
Overvoltage Category	III
[Ui] Rated Insulation Voltage	power circuit 600 V CSA power circuit 600 V UL power circuit 1000 V IEC 60947-4-1
Device Short Name	LC2D
[Icw] Rated Short-Time Withstand Current	135 A 40 °C - 10 min for power circuit 320 A 40 °C - 1 min for power circuit 640 A 40 °C - 10 s for power circuit 990 A 40 °C - 1 s for power circuit
Protective Cover	without
