LC2D40G7 - Reversing Contactor, TeSys Deca, 3P(3NO), AC-3,

LC2D40G7

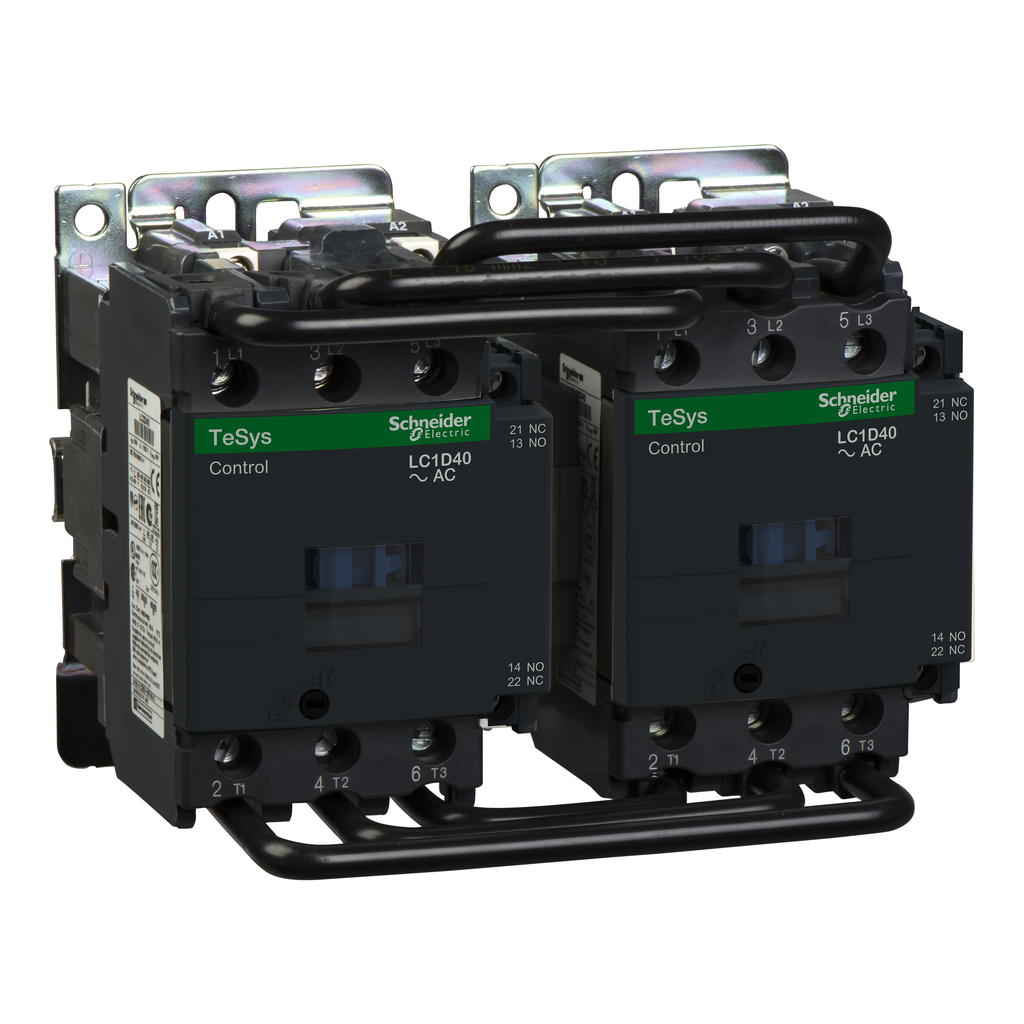

Reversing Contactor, TeSys Deca, 3P(3NO), AC-3, <=440V, 40A, 120V AC 60Hz coil

Add to Quote Catalogue

Specifications

Product Certifications	GOST CCC GL LROS (Lloyds register of shipping) BV UL DNV RINA CSA
Ambient Air Temperature For Operation	-5-60 °C
Standards	CSA C22.2 No 14 IEC 60947-4-1 EN 60947-4-1 UL 508 IEC 60947-5-1 EN 60947-5-1
Shock Resistance	10 gn contactor closed 8 gn contactor opened
Vibration Resistance	2 gn 5-300 Hz contactor opened 4 gn 5-300 Hz contactor closed
Ambient Air Temperature For Storage	-60-80 °C
Protective Treatment	TH 3)IEC 60068
Ip Degree Of Protection	IP2X IEC 60529 IP2X VDE 0106
Operating Altitude	9842.52 ft (3000 m) without derating
Fire Resistance	850 °C IEC 60695-2-1
Permissible Ambient Air Temperature Around The Device	-40-70 °C at Uc
Heat Dissipation	6-10 W at 50/60 Hz for control circuit
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP110205EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	N/A
Eu Rohs Directive	Compliant
Non-Overlap Time	1.5 ms on de-energisation between NC and NO contacts 1.5 ms on energisation between NC and NO contacts
Interlocking Type	mechanical
Minimum Switching Current	5 mA for control circuit
[Ue] Rated Operational Voltage	power circuit <= 1000 V AC 25...400 Hz
Height	132 mm
Power Dissipation Per Pole	2.4 W AC-3 - Ith 60 A
Average Impedance	- Ith 60 A 50 Hz for power circuit
Auxiliary Contact Composition	1 NO + 1 NC
Control Circuit Voltage Limits	drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C) operational: 0.8...1.1 Uc at 50 Hz (at <60 °C) operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
[Ith] Conventional Free Air Thermal Current	10 A (at 60 °C) for control circuit 60 A (at 60 °C) for power circuit
Mounting Support	rail plate
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Insulation Resistance	> 10 MOhm for control circuit
Rated Breaking Capacity	800 A at 440 V for power circuit conforming to IEC 60947
Irms Rated Making Capacity	140 A AC for control circuit conforming to IEC 60947-5-1 800 A at 440 V for power circuit conforming to IEC 60947
Associated Fuse Rating	10 A gG for control circuit conforming to IEC 60947-5-1 80 A gG at <= 690 V coordination type 1 for power circuit 80 A gG at <= 690 V coordination type 2 for power circuit
Net Weight	2.4 kg
Inrush Power In Va	200-200 VA cos phi 0.75 (at 20 °C) 220-220 VA cos phi 0.75 (at 20 °C)
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947
Coil Technology	without built-in bidirectional peak limiting diode suppressor
Flame Retardance	V1 conforming to UL 94
Minimum Switching Voltage	17 V for control circuit
Maximum Operating Rate	3600 cyc/h 60 °C
Tightening Torque	control circuit 1.7 N.m 1-2.5 mm² flat Ø 6 mm control circuit 1.7 N.m 1-2.5 mm² Philips No 2 control circuit 1.7 N.m 1-4 mm² flat Ø 6 mm control circuit 1.7 N.m 1-4 mm² Philips No 2 power circuit 5 N.m 1-25 mm² hexagonal power circuit 8 N.m 1-35 mm² hexagonal
Assembly Style	ready assembled
Mechanical Durability	6000000 cycles
Auxiliary Contacts Type	mechanically linked 1 NO + 1 NC IEC 60947-5-1 mirror contact 1 NC IEC 60947-4-1
Hold-In Power Consumption In Va	20-20 VA 50 Hz cos phi 0.3 (at 20 °C) 22-22 VA 60 Hz cos phi 0.3 (at 20 °C) 26-26 VA 50 Hz cos phi 0.3 (at 20 °C) 26-26 VA 60 Hz cos phi 0.3 (at 20 °C)
Operating Time	12...26 ms closing 4...19 ms opening
Width	165 mm
Overvoltage Category	III
Depth	142 mm
[Ui] Rated Insulation Voltage	control circuit 600 V CSA control circuit 600 V UL power circuit 600 V CSA power circuit 600 V UL control circuit 690 V IEC 60947-1 power circuit 690 V IEC 60947-1
Protective Cover	with
Country of Origin	Czechia
Width	165 mm
Height	132 mm
Weight	2.4 kg
Control Circuit Type	AC
[Uc] Control Circuit Voltage	120 V AC 60 Hz
Range Of Product	TeSys Deca
Contactor Application	motor control
Product Or Component Type	reversing contactor
Connections - Terminals	control circuit 1 1-4 mm²flexible with cable end power circuit 2 1-25 mm²flexible with cable end power circuit 2 1-25 mm²flexible without cable end power circuit 2 1-25 mm²solid without cable end power circuit 2 1-35 mm²flexible with cable end power circuit 2 1-35 mm²flexible without cable end power circuit 2 1-35 mm²solid without cable end control circuit 1 1-4 mm²flexible without cable end control circuit 1 1-4 mm²solid without cable end control circuit 2 1-2.5 mm²flexible with cable end control circuit 2 1-4 mm²flexible without cable end control circuit 2 1-4 mm²solid without cable end power circuit 1 1-35 mm²flexible with cable end power circuit 1 1-35 mm²flexible without cable end power circuit 1 1-35 mm²solid without cable end
Pole Contact Composition	3 NO
Utilisation Category	AC-4 AC-2 AC-3
[Ie] Rated Operational Current	power circuit 40 A AC AC-3 60 °C)
Poles Description	3P
Motor Power Kw	11 kW 220...240 V AC 50/60 Hz 22 kW 415 V AC 50/60 Hz 22 kW 440 V AC 50/60 Hz 22 kW 500 V AC 50/60 Hz 30 kW 660...690 V AC 50/60 Hz 18.5 kW 380...400 V AC 50/60 Hz
Device Short Name	LC2D
Coil Type	standard

Reversing Contactor, TeSys Deca, 3P(3NO), AC-3, <=440V, 40A, 120V AC 60Hz coil
