LC2D40AG7TQ - reversing contactor TeSys Deca - 3 poles - AC-3 - 440V 40A - coil 120V AC 60 Hz - TQPKG

LC2D40AG7TQ

reversing contactor TeSys Deca - 3 poles - AC-3 - 440V 40A - coil 120V AC 60 Hz - TQPKG

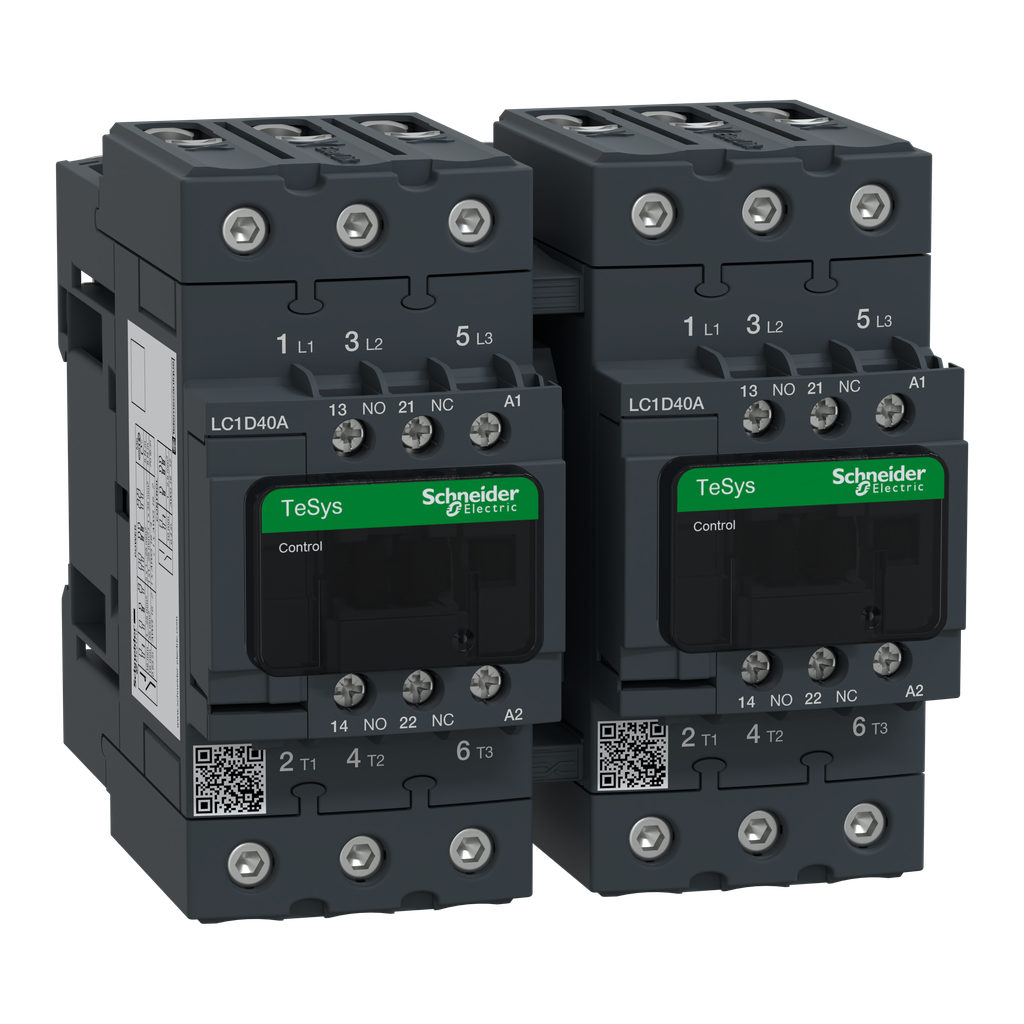

TeSys D reversing contactor, 3 poles (3NO), for motor control applications up to 40A/590V AC-3 (18.5kW@400V). It provides low consumption 100-250V AC/DC coils with electronic control, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), power connection by EverLink BTR screw connectors, control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (119mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Non-Overlap Time	1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Minimum Switching Current	5 mA for signalling circuit
Control Circuit Voltage Limits	0.3...0.6 Uc -40-70 °C drop-out AC 60 Hz 0.85...1.1 Uc -40-60 °C operational AC 60 Hz 1...1.1 Uc 60-70 °C operational AC 60 Hz
Insulation Resistance	> 10 MOhm for signalling circuit
Inrush Power In Va	160-160 VA 60 Hz 0.75 20 °C)
Coil Technology	built-in bidirectional peak limiting diode suppressor
Minimum Switching Voltage	17 V for signalling circuit
Signalling Circuit Frequency	25...400 Hz
Heat Dissipation	4-5 W 60 Hz
Auxiliary Contacts Type	mechanically linked 1 NO + 1 NC IEC 60947-5-1 mirror contact 1 NC IEC 60947-4-1
Hold-In Power Consumption In Va	13-13 VA 20 °C) 0.3 60 Hz
Country of Origin	France
Width	119 mm
Height	122 mm
Weight	1.87 kg
Interlocking Type	mechanical
[Uc] Control Circuit Voltage	120 V AC 60 Hz
[Ue] Rated Operational Voltage	power circuit <= 690 V AC 25...400 Hz power circuit <= 300 V DC
Power Dissipation Per Pole	5.4 W AC-1 3.4 W AC-3
Average Impedance	1.5 mOhm - Ith 60 A 50 Hz for power circuit
Auxiliary Contact Composition	1 NO + 1 NC
[Ith] Conventional Free Air Thermal Current	10 A (at 60 °C) for signalling circuit 60 A (at 60 °C) for power circuit
Mounting Support	plate rail
Control Circuit Type	AC 60 Hz
Standards	CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508 IEC 60335-1
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Contactor Application	resistive load motor control
Rated Breaking Capacity	800 A at 220/415/440 V for power circuit conforming to IEC 60947
Product Or Component Type	reversing contactor
Product Certifications	CCC CSA DNV EAC UKCA
Irms Rated Making Capacity	140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 800 A at 440 V for power circuit conforming to IEC 60947-4
Product Name	TeSys Deca
Associated Fuse Rating	10 A gG for signalling circuit conforming to IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947
Connections - Terminals	control circuit screw clamp terminals 1 1-4 mm²flexible without cable end control circuit screw clamp terminals 2 1-4 mm²flexible without cable end control circuit screw clamp terminals 1 1-4 mm²flexible with cable end control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end control circuit screw clamp terminals 1 1-4 mm²solid without cable end control circuit screw clamp terminals 2 1-4 mm²solid without cable end power circuit screw clamp terminals 1 1-35 mm²flexible without cable end power circuit screw clamp terminals 2 1-25 mm²flexible without cable end power circuit screw clamp terminals 1 1-35 mm²flexible with cable end power circuit screw clamp terminals 2 1-25 mm²flexible with cable end power circuit screw clamp terminals 1 1-35 mm²solid without cable end power circuit screw clamp terminals 2 1-25 mm²solid without cable end
Range	TeSys TeSys Deca
Pole Contact Composition	3 NO
Device Presentation	preassembled with reversing power busbar
Utilisation Category	AC-1 AC-3
[Ie] Rated Operational Current	60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit 40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Operating Time	4...19 ms opening 12...26 ms closing
Maximum Operating Rate	3600 cyc/h 60 °C
Electrical Durability	1.5 Mcycles 40 A AC-3 <= 440 V 1.4 Mcycles 60 A AC-1 <= 440 V
Tightening Torque	control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm control circuit 1.7 N.m screw clamp terminals Philips No 2 power circuit 8 N.m EverLink BTR screw connectors 25-35 mm² hexagonal 4 mm power circuit 5 N.m EverLink BTR screw connectors 1-25 mm² hexagonal 4 mm
Poles Description	3P
Overvoltage Category	III
Motor Power Kw	18.5 kW at 380...400 V AC 50 Hz 11 kW at 220...230 V AC 50 Hz 22 kW at 415...440 V AC 50 Hz 22 kW at 500 V AC 50 Hz 30 kW at 660...690 V AC 50 Hz
Maximum Horse Power Rating	10 hp at 200/208 V AC 60 Hz for 3 phase motors 3 hp at 115 V AC 60 Hz for 1 phase motors 30 hp at 575...600 V AC 60 Hz for 3 phase motors 30 hp at 460...480 V AC 60 Hz for 3 phase motors 5 hp at 230...240 V AC 60 Hz for 1 phase motors 10 hp at 230...240 V AC 60 Hz for 3 phase motors
[Ui] Rated Insulation Voltage	power circuit 690 V IEC 60947-4-1 power circuit 600 V CSA power circuit 600 V UL signalling circuit 690 V IEC 60947-1 signalling circuit 600 V CSA signalling circuit 600 V UL
Mechanical Durability	6000000 cycles
Device Short Name	LC2D
[Icw] Rated Short-Time Withstand Current	100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit 320 A 40 °C - 10 s for power circuit 720 A 40 °C - 1 s for power circuit 72 A 40 °C - 10 min for power circuit 165 A 40 °C - 1 min for power circuit
Protective Cover	with
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1503009EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	ENVEOLI1503009EN
Eu Rohs Directive	Compliant
Mechanical Robustness	vibrations contactor open2 Gn, 5...300 Hz vibrations contactor closed4 Gn, 5...300 Hz shocks contactor closed10 Gn for 11 ms shocks contactor open15 Gn for 11 ms
Ambient Air Temperature For Operation	-40-60 °C 60-70 °C with derating
Height	122 mm
Climatic Withstand	IACS E10 IEC 60947-1 Annex Q category D
Pollution Degree	3
Net Weight	1.87 kg
Flame Retardance	V1 conforming to UL 94
Ambient Air Temperature For Storage	-60-80 °C
Protective Treatment	TH IEC 60068-2-30
Ip Degree Of Protection	IP20 front face IEC 60529
Operating Altitude	0...9842.52 ft (0...3000 m)
Fire Resistance	960 °C IEC 60695-2-1
Width	119 mm
Depth	120 mm

reversing contactor TeSys Deca - 3 poles - AC-3 - 440V 40A - coil 120V AC 60 Hz - TQPKG

Specifications

Documents
