LC2D32JL - Reversing Contactor, TeSys Deca, 3P(3NO), AC-3,

LC2D32JL

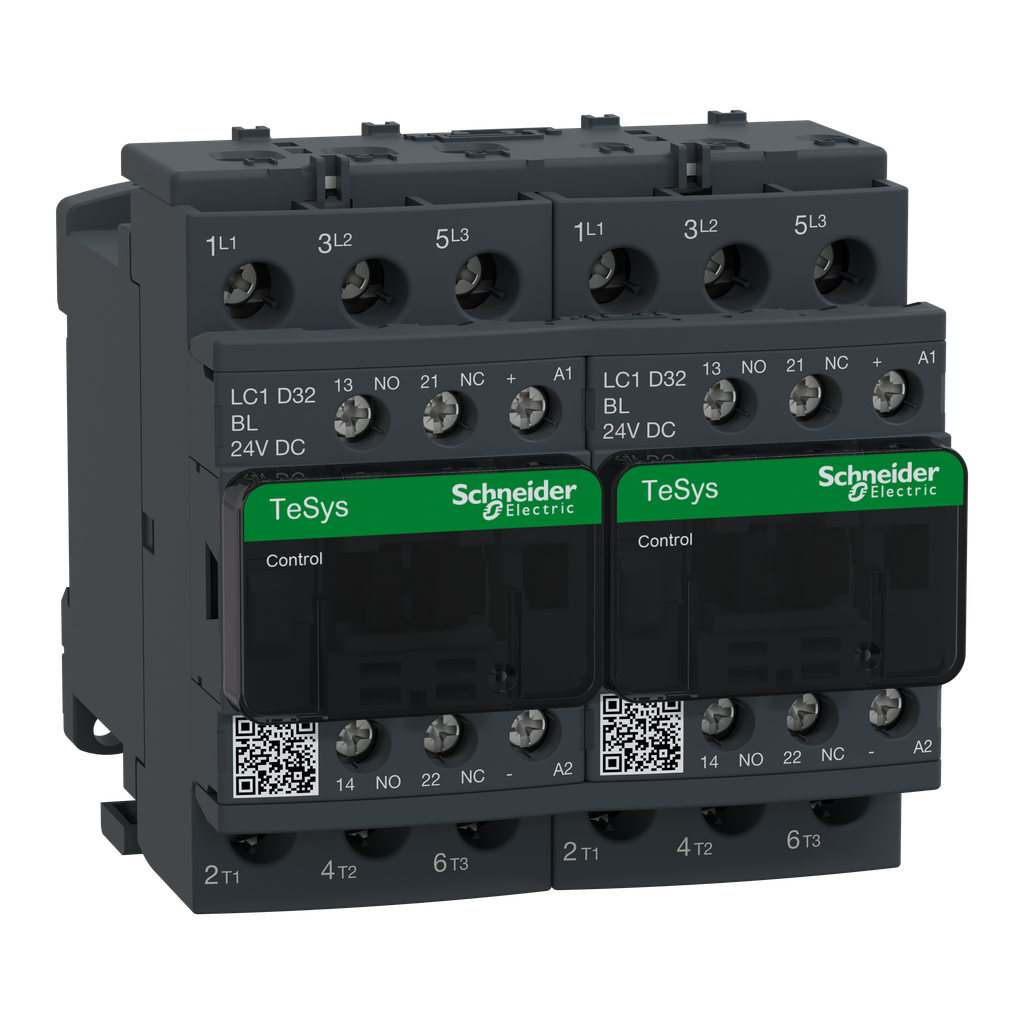

Reversing Contactor, TeSys Deca, 3P(3NO), AC-3, <=440V, 32A, 12V DC coil, screw clamp terminals

Add to Quote Catalogue

Specifications

Mechanical Robustness	vibrations contactor open2 Gn, 5...300 Hz vibrations contactor closed4 Gn, 5...300 Hz shocks contactor closed15 Gn for 11 ms shocks contactor open8 Gn for 11 ms
Ambient Air Temperature For Operation	-40-60 °C 60-70 °C with derating
Height	85 mm
Climatic Withstand	IACS E10 IEC 60947-1 Annex Q category D
Pollution Degree	3
Net Weight	1.127 kg
Flame Retardance	V1 conforming to UL 94
Ambient Air Temperature For Storage	-60-80 °C
Protective Treatment	TH IEC 60068-2-30
Ip Degree Of Protection	IP20 front face IEC 60529
Operating Altitude	0...9842.52 ft (0...3000 m)
Fire Resistance	850 °C IEC 60695-2-1
Width	90 mm
Depth	101 mm
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP110230EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1102030EN
Eu Rohs Directive	Compliant with Exemptions
Non-Overlap Time	1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Minimum Switching Current	5 mA for signalling circuit
Control Circuit Voltage Limits	0.1...0.3 Uc -40-70 °C drop-out DC 0.8...1.25 Uc -40-60 °C operational DC 1...1.25 Uc 60-70 °C operational DC
Hold-In Power Consumption In W	2.4-2.4 W 20 °C
Insulation Resistance	> 10 MOhm for signalling circuit
Coil Technology	built-in bidirectional peak limiting diode suppressor
Time Constant	40 ms
Minimum Switching Voltage	17 V for signalling circuit
Signalling Circuit Frequency	25...400 Hz
Inrush Power In W	2.4-2.4 W 20 °C)
Auxiliary Contacts Type	mechanically linked 1 NO + 1 NC IEC 60947-5-1 mirror contact 1 NC IEC 60947-4-1
Country of Origin	France
Width	90 mm
Height	85 mm
Weight	1.127 kg
Product Certifications	RINA GOST CCC UL LROS (Lloyds register of shipping) CSA DNV GL BV
Interlocking Type	mechanical
[Uc] Control Circuit Voltage	12 V DC
[Ue] Rated Operational Voltage	power circuit <= 690 V AC 25...400 Hz power circuit <= 300 V DC
Power Dissipation Per Pole	2 W AC-3 5 W AC-1
Average Impedance	2 mOhm - Ith 50 A 50 Hz for power circuit
Auxiliary Contact Composition	1 NO + 1 NC
[Ith] Conventional Free Air Thermal Current	10 A (at 60 °C) for signalling circuit 50 A (at 60 °C) for power circuit
Mounting Support	rail plate
Control Circuit Type	DC low consumption
Standards	CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Contactor Application	resistive load motor control
Rated Breaking Capacity	550 A at 440 V for power circuit conforming to IEC 60947
Product Or Component Type	reversing contactor
Irms Rated Making Capacity	140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 550 A at 440 V for power circuit conforming to IEC 60947
Product Name	TeSys D
Associated Fuse Rating	10 A gG for signalling circuit conforming to IEC 60947-5-1 63 A gG at <= 690 V coordination type 1 for power circuit 63 A gG at <= 690 V coordination type 2 for power circuit
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947
Connections - Terminals	control circuit screw clamp terminals 1 1-4 mm²flexible without cable end control circuit screw clamp terminals 2 1-4 mm²flexible without cable end control circuit screw clamp terminals 1 1-4 mm²flexible with cable end control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end control circuit screw clamp terminals 1 1-4 mm²solid control circuit screw clamp terminals 2 1-4 mm²solid power circuit screw clamp terminals 1 2.5-10 mm²flexible without cable end power circuit screw clamp terminals 2 2.5-10 mm²flexible without cable end power circuit screw clamp terminals 1 1-10 mm²flexible with cable end power circuit screw clamp terminals 2 1.5-6 mm²flexible with cable end power circuit screw clamp terminals 1 1.5-10 mm²solid power circuit screw clamp terminals 2 2.5-10 mm²solid
Range	TeSys
Pole Contact Composition	3 NO
Device Presentation	preassembled with reversing power busbar
Utilisation Category	AC-3 AC-1
[Ie] Rated Operational Current	32 A (at <60 °C) at <= 440 V AC AC-3 for power circuit 50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Maximum Operating Rate	3600 cyc/h 60 °C
Tightening Torque	control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm control circuit 1.7 N.m screw clamp terminals Philips No 2 power circuit 2.5 N.m screw clamp terminals flat Ø 6 mm power circuit 2.5 N.m screw clamp terminals Philips No 2
Electrical Durability	1.65 Mcycles 32 A AC-3 <= 440 V 1.4 Mcycles 50 A AC-1 <= 440 V
Mechanical Durability	30 Mcycles
Poles Description	3P
Operating Time	65.45...88.55 ms closing 20...30 ms opening
Overvoltage Category	III
Motor Power Kw	7.5 kW at 220...230 V AC 50 Hz 15 kW at 380...400 V AC 50 Hz 15 kW at 415...440 V AC 50 Hz 18.5 kW at 500 V AC 50 Hz 18.5 kW at 660...690 V AC 50 Hz
Maximum Horse Power Rating	2 hp at 115 V AC 60 Hz for 1 phase motors 5 hp at 230/240 V AC 60 Hz for 1 phase motors 7.5 hp at 200/208 V AC 60 Hz for 3 phase motors 10 hp at 230/240 V AC 60 Hz for 3 phase motors 20 hp at 460/480 V AC 60 Hz for 3 phase motors 30 hp at 575/600 V AC 60 Hz for 3 phase motors
[Ui] Rated Insulation Voltage	power circuit 690 V IEC 60947-4-1 power circuit 600 V CSA power circuit 600 V UL signalling circuit 690 V IEC 60947-1 signalling circuit 600 V CSA signalling circuit 600 V UL
Device Short Name	LC2D
[Icw] Rated Short-Time Withstand Current	60 A 40 °C - 10 min for power circuit 138 A 40 °C - 1 min for power circuit 260 A 40 °C - 10 s for power circuit 430 A 40 °C - 1 s for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit
Protective Cover	with

Reversing Contactor, TeSys Deca, 3P(3NO), AC-3, <=440V, 32A, 12V DC coil, screw clamp terminals
