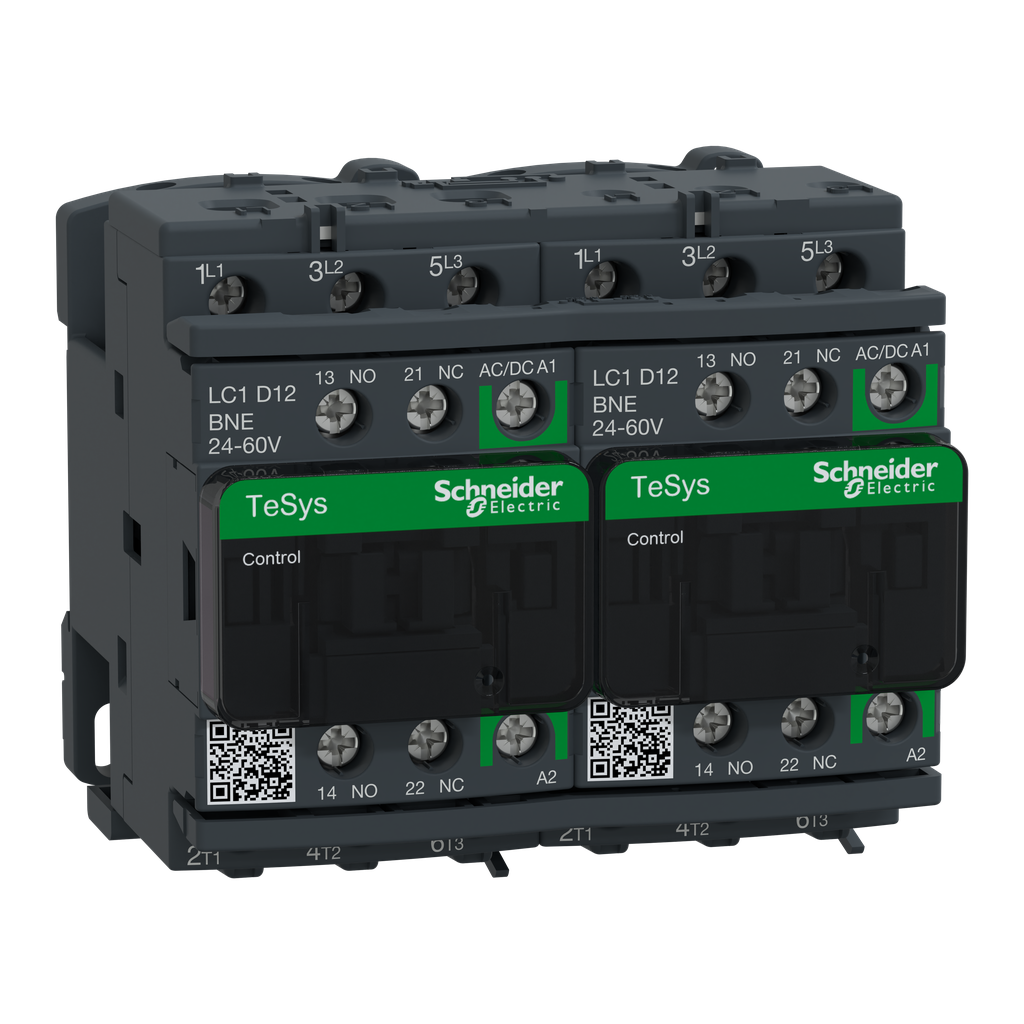

LC2D12BNE

TeSys Deca reversing contactor - 3P - <= 440 V - 12 A AC-3 - 24...60 V AC/DC coil

LC2D12BNE is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications. Rated 12A AC-3 5.5kW@400V, it includes a 24-60V AC/DC low consumption electronic coil, 2NO+2NC aux contacts, a mechanical interlock. LC2D12BNE is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications up to 5.5kW@400V. It includes a 24-60V AC/DC low consumption electronic coil and 2NO+2NC built-in auxiliary contacts, NC mirror certified. Compact, DIN-rail mounting, with mechanical interlock and pre-wired reversing circuit, it procures reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Compact product, 90mm wide, for DIN-rail and panel mounting. Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with an electronic coil, wide band voltage 24-60V, AC/DC compatible, low consumption. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 2 million cycles at 12A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Connection by screw clamp terminals.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Interlocking Type	mechanical
[Uc] Control Circuit Voltage	24...60 V AC 50/60 Hz 24...60 V DC
[Ue] Rated Operational Voltage	power circuit <= 690 V AC 25...400 Hz
Power Dissipation Per Pole	1.56 W AC-1 0.36 W AC-3
Average Impedance	2.5 mOhm - Ith 25 A 50 Hz power circuit
Auxiliary Contact Composition	1 NO + 1 NC
[Ith] Conventional Free Air Thermal Current	10 A 60 °C signalling circuit 25 A 60 °C power circuit
Mounting Support	plate rail
Control Circuit Type	AC 50/60 Hz AC/DC electronic DC AC/DC electronic
Standards	EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC 60335-1
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Contactor Application	motor control resistive load
Rated Breaking Capacity	250 A 440 V power circuit IEC 60947
Product Or Component Type	reversing contactor
Product Certifications	CCC CSA EAC UL KC DNV-GL LROS (Lloyds register of shipping) UKCA
Irms Rated Making Capacity	250 A 440 V power circuit IEC 60947 140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1
Product Name	Tesys Deca green TeSys Deca
Associated Fuse Rating	10 A gG signalling circuit IEC 60947-5-1 40 A gG <= 690 V type 1 power circuit 25 A gG <= 690 V type 2 power circuit
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947
Connections - Terminals	power circuit screw clamp terminals 1 1-4 mm²flexible without cable end power circuit screw clamp terminals 2 1-4 mm²flexible without cable end power circuit screw clamp terminals 1 1-4 mm²flexible with cable end power circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end power circuit screw clamp terminals 1 1-4 mm²solid power circuit screw clamp terminals 2 1-4 mm²solid control circuit screw clamp terminals 1 1-4 mm²flexible without cable end control circuit screw clamp terminals 2 1-4 mm²flexible without cable end control circuit screw clamp terminals 1 1-4 mm²flexible with cable end control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end control circuit screw clamp terminals 1 1-4 mm²solid control circuit screw clamp terminals 2 1-4 mm²solid
Range	TeSys TeSys Deca
Pole Contact Composition	3 NO
Device Presentation	preassembled with reversing power busbar
Utilisation Category	AC-1 AC-3
Operating Time	45...55 ms closing 20...90 ms opening
[Ie] Rated Operational Current	25 A 60 °C) <= 440 V AC AC-1 power circuit 12 A 60 °C) <= 440 V AC AC-3 power circuit
Maximum Operating Rate	3600 cyc/h 60 °C
Electrical Durability	2.3 Mcycles 11 A AC-3 <= 440 V 0.8 Mcycles 25 A AC-1 <= 440 V
Tightening Torque	power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm power circuit 1.7 N.m screw clamp terminals Philips No 2 control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm control circuit 1.7 N.m screw clamp terminals Philips No 2 control circuit 1.7 N.m screw clamp terminals pozidriv No 2 power circuit 1.7 N.m screw clamp terminals pozidriv No 2
Poles Description	3P
Overvoltage Category	III
Motor Power Kw	3 kW 220...230 V AC 50 Hz 5.5 kW 380...400 V AC 50 Hz 5.5 kW 415 V AC 50 Hz 5.5 kW 440 V AC 50 Hz 7.5 kW 500 V AC 50 Hz 7.5 kW 660...690 V AC 50 Hz
Maximum Horse Power Rating	0.5 hp 115 V at AC 60 Hz for 1 phase 2 hp 230/240 V at AC 60 Hz for 1 phase 3 hp 200/208 V at AC 60 Hz for 3 phase 3 hp 230/240 V at AC 60 Hz for 3 phase 7.5 hp 460/480 V at AC 60 Hz for 3 phase 10 hp 575/600 V at AC 60 Hz for 3 phase
[Ui] Rated Insulation Voltage	power circuit 690 V IEC 60947-4-1 signalling circuit 690 V IEC 60947-1
Mechanical Durability	15 Mcycles
Device Short Name	LC2D
[Icw] Rated Short-Time Withstand Current	105 A 40 °C - 10 s power circuit 210 A 40 °C - 1 s power circuit 30 A 40 °C - 10 min power circuit 61 A 40 °C - 1 min power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circuit 140 A - 100 ms signalling circuit
Protective Cover	with
Warranty	18 months
Non-Overlap Time	1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Minimum Switching Current	5 mA signalling circuit
Control Circuit Voltage Limits	<= 0.1 Uc -40-70 °C drop-out AC/DC 0.85...1.1 Uc -40-60 °C operational AC 0.8...1.1 Uc -40-60 °C operational DC 1...1.1 Uc 60-70 °C operational AC/DC
Hold-In Power Consumption In W	0.6-0.6 W 20 °C
Insulation Resistance	> 10 MOhm signalling circuit
Inrush Power In Va	15-15 VA 50/60 Hz 20 °C)
Coil Technology	built-in bidirectional peak limiting
Minimum Switching Voltage	17 V signalling circuit
Signalling Circuit Frequency	25...400 Hz
Heat Dissipation	0.6-0.6 W 50/60 Hz
Inrush Power In W	14-14 W 20 °C
Auxiliary Contacts Type	mechanically linked 1 NO + 1 NC IEC 60947-5-1 mirror contact 1 NC IEC 60947-4-1
Hold-In Power Consumption In Va	0.9-0.9 VA 20 °C) 50/60 Hz
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1609001EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1609001EN
Eu Rohs Directive	Compliant
Halogen Content Performance	Halogen free plastic parts & cables product
Mechanical Robustness	vibrations contactor open2 Gn, 5...300 Hz vibrations contactor closed4 Gn, 5...300 Hz shocks contactor open10 Gn for 11 ms shocks contactor closed15 Gn for 11 ms
Ambient Air Temperature For Operation	-40-60 °C 60-70 °C with derating
Height	77 mm
Climatic Withstand	IACS E10 IEC 60947-1 Annex Q category D
Pollution Degree	3
Net Weight	0.793 kg
Flame Retardance	V1 conforming to UL 94
Ambient Air Temperature For Storage	-60-80 °C
Protective Treatment	TH IEC 60068-2-30
Ip Degree Of Protection	IP20 front face IEC 60529
Operating Altitude	0...9842.52 ft (0...3000 m)
Fire Resistance	850 °C IEC 60695-2-1
Color	Gray SE GREY 6) Green SE GREEN 2)
Width	90 mm
Depth	86 mm
