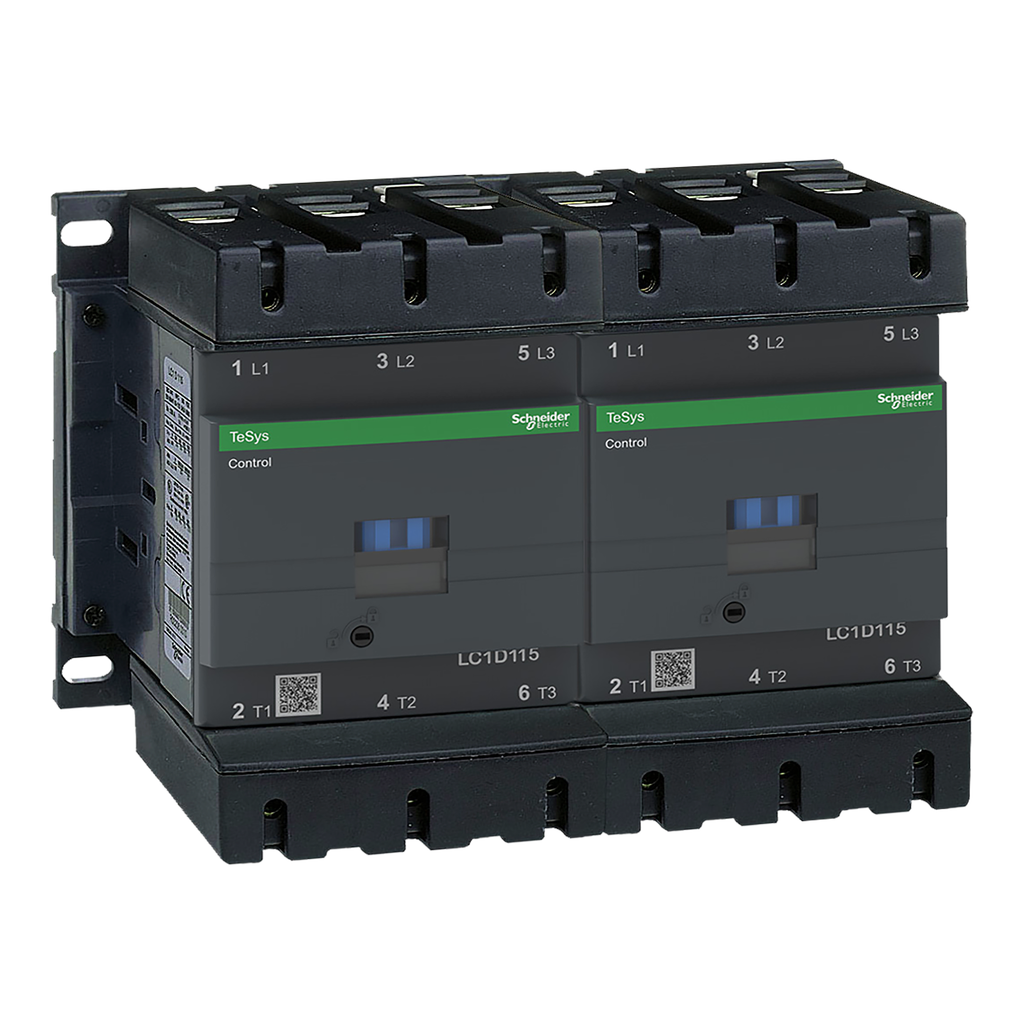

LC2D1156F7

REVERSING CONTACTOR

Add to Quote Catalogue

Specifications

Mechanical Robustness	vibrations contactor open2 Gn, 5...300 Hz vibrations contactor closed4 Gn, 5...300 Hz shocks contactor closed15 Gn for 11 ms shocks contactor open6 Gn for 11 ms
Ambient Air Temperature For Operation	-40-60 °C 60-70 °C with derating
Height	158 mm
Climatic Withstand	IACS E10
Pollution Degree	3
Net Weight	6.35 kg
Flame Retardance	V1 conforming to UL 94
Ambient Air Temperature For Storage	-60-80 °C
Protective Treatment	TH IEC 60068-2-30
Ip Degree Of Protection	IP20 front face IEC 60529
Operating Altitude	0...9842.52 ft (0...3000 m)
Fire Resistance	850 °C IEC 60695-2-1
Width	266 mm
Depth	148 mm
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP060301EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI100405EN
Eu Rohs Directive	Compliant with Exemptions
Non-Overlap Time	1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Minimum Switching Current	5 mA for signalling circuit
Control Circuit Voltage Limits	0.3...0.5 Uc 55-55 °C drop-out AC 50/60 Hz 0.8...1.15 Uc 55-55 °C operational AC 50/60 Hz
Insulation Resistance	> 10 MOhm for signalling circuit
Inrush Power In Va	280-350 VA 60 Hz 0.8 20 °C) 280-350 VA 50 Hz 0.8 20 °C)
Coil Technology	built-in bidirectional peak limiting diode suppressor
Minimum Switching Voltage	17 V for signalling circuit
Signalling Circuit Frequency	25...400 Hz
Heat Dissipation	3-8 W 50/60 Hz
Auxiliary Contacts Type	mechanically linked 1 NO + 1 NC IEC 60947-5-1 mirror contact 1 NC IEC 60947-4-1
Hold-In Power Consumption In Va	2-18 VA 20 °C) 0.3 60 Hz 2-18 VA 20 °C) 0.3 50 Hz
Country of Origin	Czechia
Width	266 mm
Height	158 mm
Weight	6.35 kg
Interlocking Type	mechanical electrical
[Uc] Control Circuit Voltage	110 V AC 50/60 Hz
[Ue] Rated Operational Voltage	power circuit <= 1000 V AC 25...400 Hz power circuit <= 300 V DC
Power Dissipation Per Pole	24 W AC-1 7.9 W AC-3
Average Impedance	0.6 mOhm - Ith 200 A 50 Hz for power circuit
Auxiliary Contact Composition	1 NO + 1 NC
[Ith] Conventional Free Air Thermal Current	200 A (at 60 °C) for power circuit
Mounting Support	plate rail
Control Circuit Type	AC 50/60 Hz
Standards	CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Contactor Application	motor control resistive load
Rated Breaking Capacity	1100 A at 440 V for power circuit conforming to IEC 60947
Product Or Component Type	reversing contactor
Product Certifications	BV CCC CSA DNV GL RINA UL EAC UKCA
Irms Rated Making Capacity	140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 1260 A at 440 V for power circuit conforming to IEC 60947
Product Name	TeSys Deca
Associated Fuse Rating	10 A gG for signalling circuit conforming to IEC 60947-5-1 250 A gG at <= 690 V coordination type 1 for power circuit 200 A gG at <= 690 V coordination type 2 for power circuit
[Uimp] Rated Impulse Withstand Voltage	8 kV IEC 60947
Connections - Terminals	control circuit lugs-ring terminals 8 mm) power circuit lugs-ring terminals 25 mm) power circuit bars 1 5 x 25 mm
Range	TeSys
Pole Contact Composition	3 NO
Device Presentation	preassembled with reversing power busbar
Utilisation Category	AC-1 AC-3
[Ie] Rated Operational Current	200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit 115 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Operating Time	20...50 ms closing 6...20 ms opening
Maximum Operating Rate	2400 cyc/h 60 °C
Electrical Durability	0.8 Mcycles 200 A AC-1 <= 440 V 0.95 Mcycles 115 A AC-3 <= 440 V
Tightening Torque	control circuit 1.2 N.m lugs-ring terminals flat Ø 6 mm M3.5 control circuit 1.2 N.m lugs-ring terminals Philips No 2 M3.5 power circuit 12 N.m lugs-ring terminals hexagonal 13 mm M8 power circuit 12 N.m bars hexagonal 13 mm M8 control circuit 1.2 N.m lugs-ring terminals pozidriv No 2 M3.5
Poles Description	3P
Overvoltage Category	III
Motor Power Kw	30 kW at 220...230 V AC 50-60 Hz 55 kW at 380...400 V AC 50-60 Hz 59 kW at 415 V AC 50-60 Hz 59 kW at 440 V AC 50-60 Hz 75 kW at 500 V AC 50-60 Hz 80 kW at 660...690 V AC 50-60 Hz 65 kW at 1000 V AC 50-60 Hz
Maximum Horse Power Rating	30 hp at 200/208 V AC 60 Hz for 3 phase motors 40 hp at 230/240 V AC 60 Hz for 3 phase motors 75 hp at 460/480 V AC 60 Hz for 3 phase motors 100 hp at 575/600 V AC 60 Hz for 3 phase motors
[Ui] Rated Insulation Voltage	power circuit 600 V CSA power circuit 600 V UL signalling circuit 690 V IEC 60947-1 signalling circuit 600 V CSA signalling circuit 600 V UL power circuit 1000 V IEC 60947-4-1
Mechanical Durability	8000000 cycles
Device Short Name	LC2D
[Icw] Rated Short-Time Withstand Current	250 A 40 °C - 10 min for power circuit 550 A 40 °C - 1 min for power circuit 950 A 40 °C - 10 s for power circuit 1100 A 40 °C - 1 s for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit
Protective Cover	with
