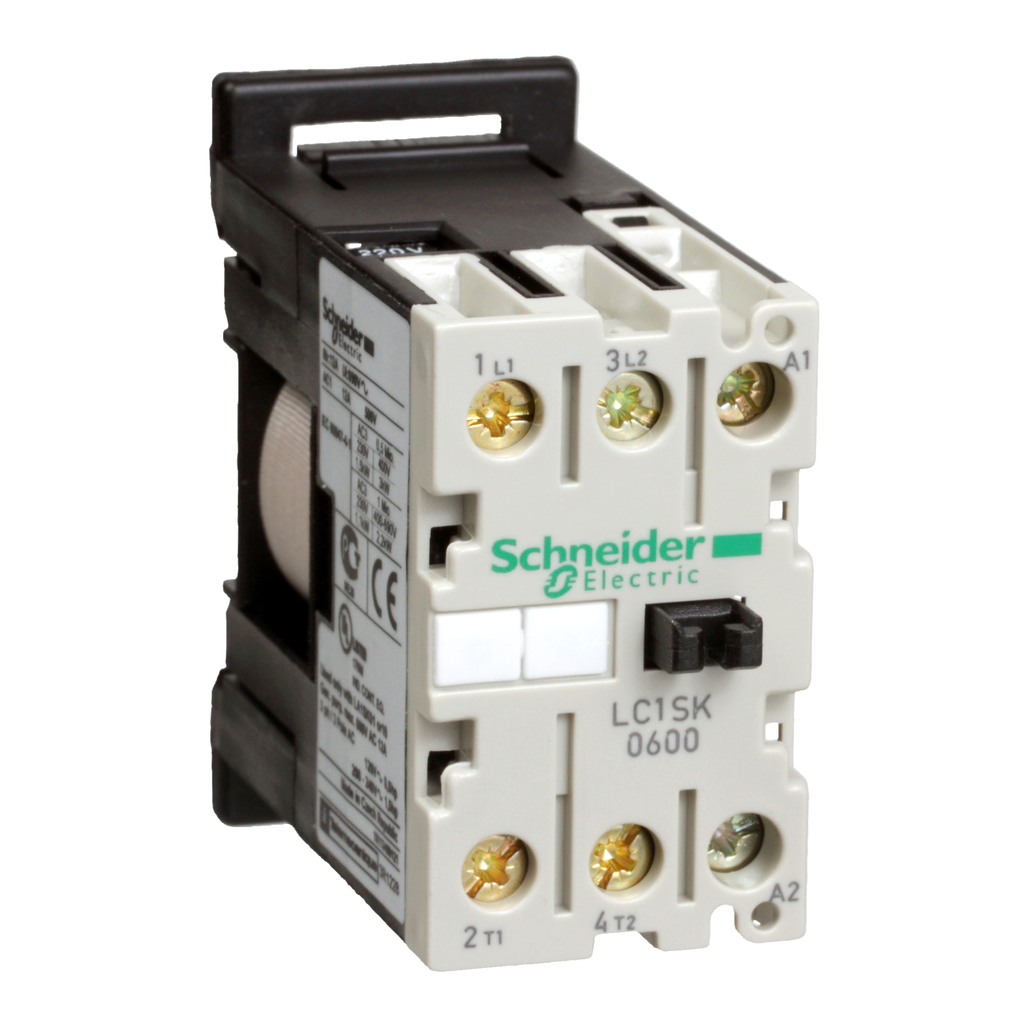

Mini contactor, TeSys SK, 2P(2NO), AC-3, 690V 6A, 220V AC coil
TeSys SK mini-contactor, 2 poles (2NO), for non inductive load applications up to 12A/690V AC-1, and for 1-phase motor control applications up to 6A/690V AC-3 (for 3-phase motors an add-on contact block LA1SK must be mounted on contactor). It provides a 220V 50/60Hz AC control circuit, connection by screw clamp terminals. For operating rates until 1200 cycles/hour and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Add-on contact blocks LA1SK (power pole, instantaneous auxiliary contacts) and suppressor modules LA4SK available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation | -20-50 °C |
|---|---|
| Height | 56 mm |
| Net Weight | 0.132 kg |
| Ambient Air Temperature For Storage | -50-70 °C |
| Protective Treatment |
|
| Ip Degree Of Protection | IP2X VDE 0106 |
| Operating Altitude | 6561.68 ft (2000 m) without derating |
| Width | 27 mm |
| Depth | 55.5 mm |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1503003EN |
| Sustainable Offer Status | Green Premium product |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1503003EN |
| Eu Rohs Directive | Compliant with Exemptions |
| Product Certifications |
|
| [Uc] Control Circuit Voltage | 220 V AC 50/60 Hz |
| Average Impedance | 4 mOhm - Ith 12 A 50 Hz |
| Control Circuit Voltage Limits |
|
| [Ith] Conventional Free Air Thermal Current | 12 A (at 55 °C) for power circuit |
| Standards |
|
| Mounting Support | rail |
| Control Circuit Type | AC 50/60 Hz |
| Rated Breaking Capacity |
|
| Irms Rated Making Capacity |
|
| Associated Fuse Rating | 16 A gI at <= 440 V for power circuit conforming to IEC 60947 |
| Inrush Power In Va | 16-16 VA (at 20 °C) |
| Connections - Terminals |
|
| Maximum Operating Rate | 1200 cyc/h |
| Tightening Torque | 0.8 N.m connector pozidriv No 1 |
| Mechanical Durability | 10 Mcycles |
| Hold-In Power Consumption In Va | 4.2-4.2 VA (at 20 °C) |
| Operating Time |
|
| [Ui] Rated Insulation Voltage |
|
| [Icw] Rated Short-Time Withstand Current | 50 A 55 °C for power circuit |
| Heat Dissipation | 1.4-1.4 W 50/60 Hz |
| Country of Origin | Czechia |
| Width | 27 mm |
| Height | 56 mm |
| Weight | 0.132 kg |
| [Ue] Rated Operational Voltage | power circuit 690 V AC 50/60 Hz |
| Contactor Application |
|
| Product Or Component Type | mini contactor |
| Product Name | TeSys SK |
| Range | TeSys |
| Pole Contact Composition | 2 NO |
| Utilisation Category |
|
| [Ie] Rated Operational Current |
|
| Poles Description | 2P |
| Device Short Name | LC1SK |
