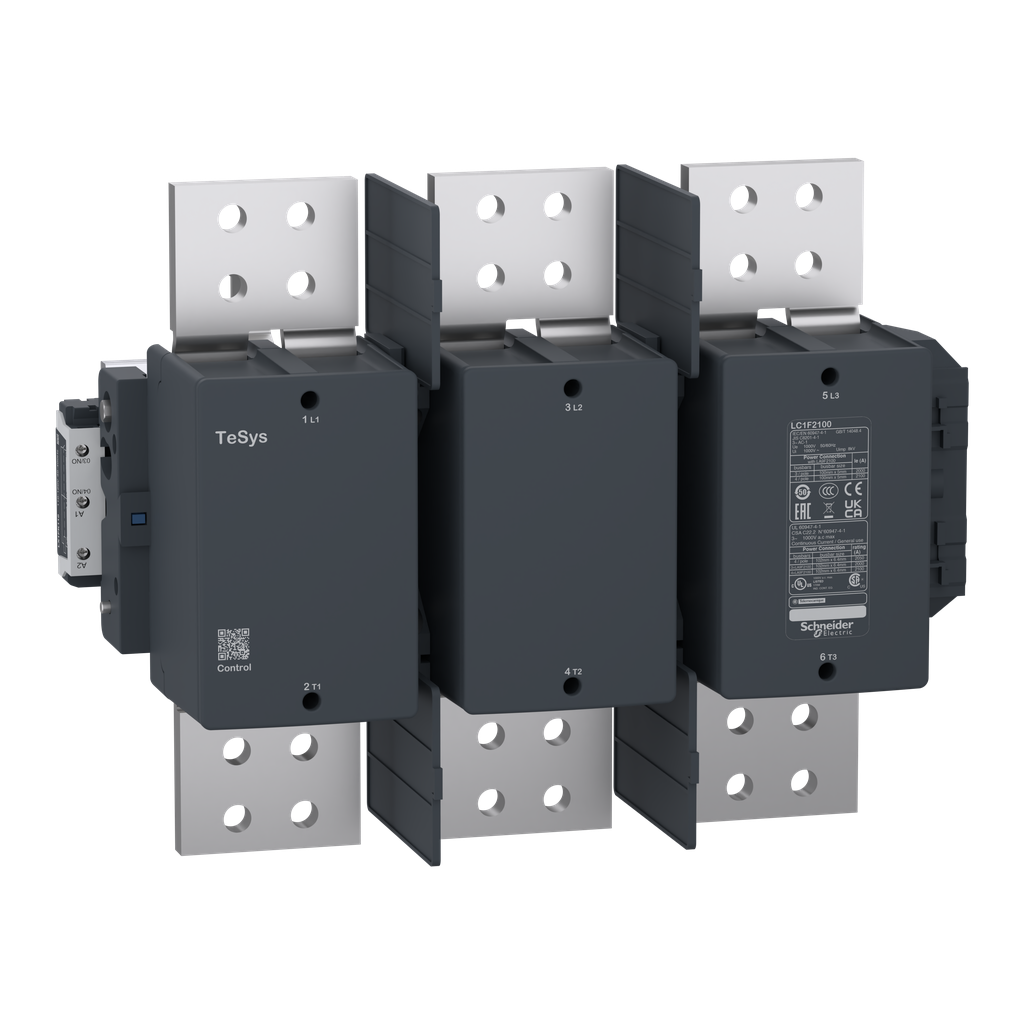

LC1F2100P7

contactor, TeSys F, 3P(3NO), AC-1, <=1000V 2100A, coil 230V AC

TeSys F contactor, 3 poles (3NO), 2100A/1000V AC-1, for non-inductive load applications. It provides a low sealed consumption 230V 40-400Hz AC coil, bolt terminals for bars or cables with lugs. For high operating rates until 600 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Height	332 mm
Ambient Air Temperature For Operation	-5-40 °C
Net Weight	31 kg
Ambient Air Temperature For Storage	-60-80 °C
Protective Treatment	TH
Operating Altitude	9842.52 ft (3000 m) without derating
Width	438 mm
Depth	238.6 mm
Permissible Ambient Air Temperature Around The Device	-40-60 °C
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP110206EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1102006EN
Eu Rohs Directive	Compliant with Exemptions
Product Certifications	UL CSA CCC CB Scheme EAC UKCA
Power Dissipation Per Pole	200 W AC-1
Average Impedance	0.1 mOhm - Ith 2100 A 50 Hz
[Ith] Conventional Free Air Thermal Current	2100 A (at 40 °C)
Control Circuit Voltage Limits	operational 0.85...1.1 Uc 40...400 Hz 55 °C) drop-out 0.3...0.5 Uc 40...400 Hz 55 °C)
Standards	EN 60947-1 JIS C8201-4-1 EN 60947-4-1 IEC 60947-4-1 IEC 60947-1 UL 60947-4-1 CSA C22.2 No 60947-4-1
Mounting Support	plate
Control Circuit Type	AC 40...400 Hz
Rated Breaking Capacity	3150 A conforming to IEC 60947-4-1
Associated Fuse Rating	2000 A gG at <= 440 V
[Uimp] Rated Impulse Withstand Voltage	8 kV
Inrush Power In Va	2200-2200 VA, 40...400 Hz 0.9 20 °C)
Connections - Terminals	control circuit screw clamp terminals 1 1-4 mm²flexible without cable end control circuit screw clamp terminals 2 1-4 mm²flexible without cable end control circuit screw clamp terminals 1 1-4 mm²flexible with cable end control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end control circuit screw clamp terminals 1 1-4 mm²solid without cable end control circuit screw clamp terminals 2 1-4 mm²solid without cable end power circuit bar 4 100 x 5 mm power circuit bolted connection
Pole Contact Composition	3 NO
Operating Time	100...170 ms opening 40...75 ms closing
Maximum Operating Rate	600 cyc/h 55 °C
Tightening Torque	control circuit 1.2 N.m power circuit 58 N.m
Compatibility Code	LC1F
Hold-In Power Consumption In Va	36-36 VA, 40...400 Hz 0.9 20 °C)
Overvoltage Category	III
[Ui] Rated Insulation Voltage	1000 V IEC 60947-4-1 1500 V VDE 0110 group C 1000 V UL 60947-4-1
[Icw] Rated Short-Time Withstand Current	10000 A 40 °C - 10 s 7500 A 40 °C - 30 s 5500 A 40 °C - 1 min 4200 A 40 °C - 3 min 3000 A 40 °C - 10 min
Heat Dissipation	36-36 W
Country of Origin	Czechia
Width	438 mm
Height	332 mm
Weight	31 kg
[Uc] Control Circuit Voltage	230 V AC 40...400 Hz
Range Of Product	TeSys F
[Ue] Rated Operational Voltage	<= 1000 V AC 50/60 Hz <= 460 V DC
Contactor Application	resistive load
Product Or Component Type	contactor
Range	TeSys
Utilisation Category	AC-1
[Ie] Rated Operational Current	2100 A (at <40 °C) AC AC-1
Poles Description	3P
Device Short Name	LC1F
