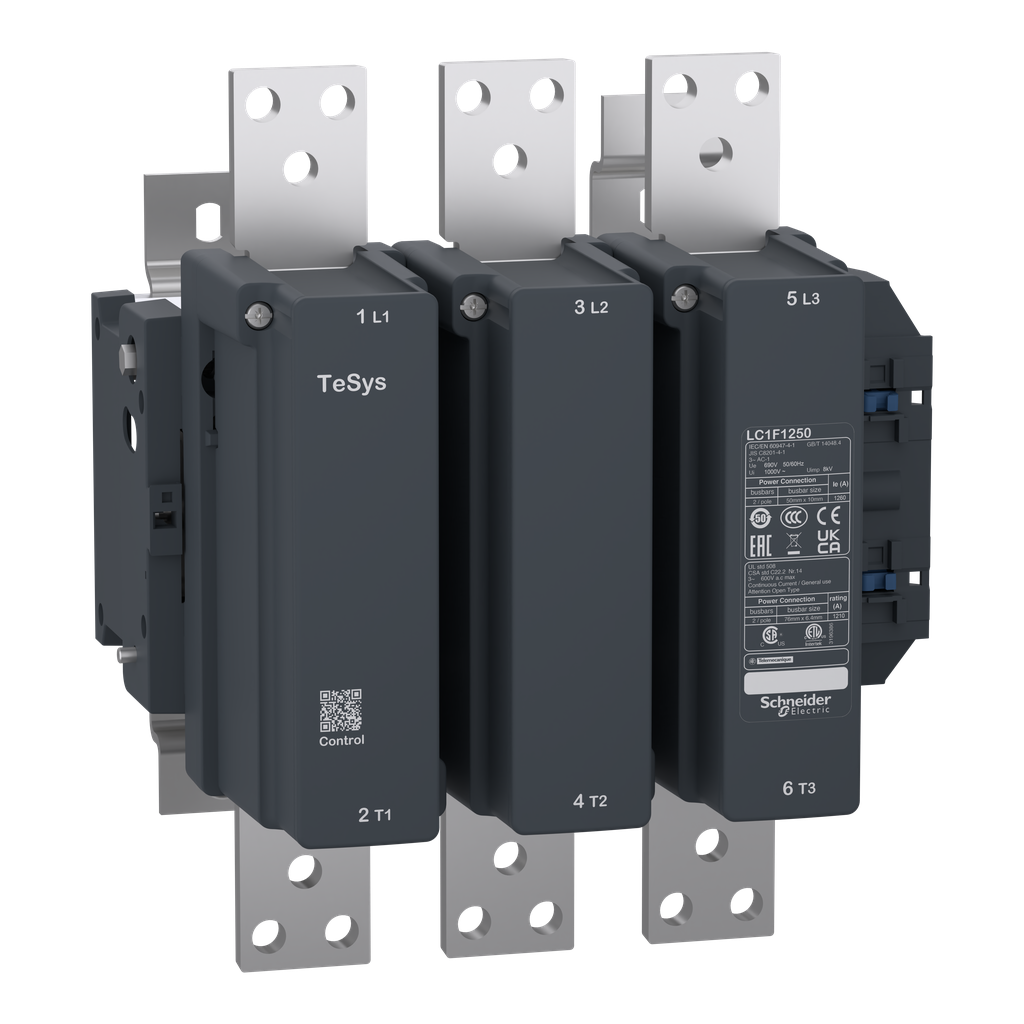

LC1F1250F7

contactor, TeSys F, 3P(3NO), AC-1, <=690V 1260 A, coil 110V AC

Add to Quote Catalogue

Specifications

Ambient Air Temperature For Operation	-5-40 °C
Height	338 mm
Net Weight	19 kg
Ambient Air Temperature For Storage	-60-80 °C
Protective Treatment	TH
Operating Altitude	9842.52 ft (3000 m) without derating
Width	309 mm
Depth	255 mm
Permissible Ambient Air Temperature Around The Device	-40-60 °C
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1505009EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1505009EN
Eu Rohs Directive	Compliant with Exemptions
Product Certifications	CB UL CSA CQC CE UKCA CCC
Power Dissipation Per Pole	120 W AC-1
Average Impedance	0.12 mOhm - Ith 1260 A 50 Hz
[Ith] Conventional Free Air Thermal Current	1260 A (at 40 °C)
Control Circuit Voltage Limits	operational 0.85...1.1 Uc 40...400 Hz 55 °C) drop-out 0.25...0.5 Uc 40...400 Hz 55 °C)
Standards	EN 60947-1 IEC 60947-1 IEC 60947-4-1 JIS C8201-4-1 EN 60947-4-1
Mounting Support	plate
Control Circuit Type	AC 40...400 Hz
Rated Breaking Capacity	1890 A conforming to IEC 60947-4-1
Associated Fuse Rating	1000 A gG at <= 440 V
[Uimp] Rated Impulse Withstand Voltage	8 kV
Inrush Power In Va	1650-1650 VA, 40...400 Hz 0.9 20 °C)
Connections - Terminals	control circuit screw clamp terminals 1 1-4 mm²flexible without cable end control circuit screw clamp terminals 2 1-4 mm²flexible without cable end control circuit screw clamp terminals 1 1-4 mm²flexible with cable end control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end control circuit screw clamp terminals 1 1-4 mm²solid without cable end control circuit screw clamp terminals 2 1-4 mm²solid without cable end power circuit bar 2 100 x 5 mm power circuit bolted connection
Pole Contact Composition	3 NO
Operating Time	40...80 ms closing 100...200 ms opening
Maximum Operating Rate	1200 cyc/h 55 °C
Tightening Torque	control circuit 1.2 N.m power circuit 58 N.m
Compatibility Code	LC1F
Hold-In Power Consumption In Va	22-22 VA, 40...400 Hz 0.9 20 °C)
Overvoltage Category	III
[Ui] Rated Insulation Voltage	1000 V IEC 60947-4-1 1500 V VDE 0110 group C
[Icw] Rated Short-Time Withstand Current	3000 A 40 °C - 3 min 8000 A 40 °C - 10 s 5200 A 40 °C - 30 s 4000 A 40 °C - 1 min 2000 A 40 °C - 10 min
Heat Dissipation	20-20 W
Country of Origin	Czechia
Width	309 mm
Height	338 mm
Weight	19 kg
[Uc] Control Circuit Voltage	110 V AC 40...400 Hz
Range Of Product	TeSys F
[Ue] Rated Operational Voltage	<= 460 V DC <= 690 V AC 50/60 Hz
Contactor Application	resistive load
Product Or Component Type	contactor
Range	TeSys
Utilisation Category	AC-1
[Ie] Rated Operational Current	1260 A (at <40 °C) AC-1
Poles Description	3P
Device Short Name	LC1F

contactor, TeSys F, 3P(3NO), AC-1, <=690V 1260 A, coil 110V AC
