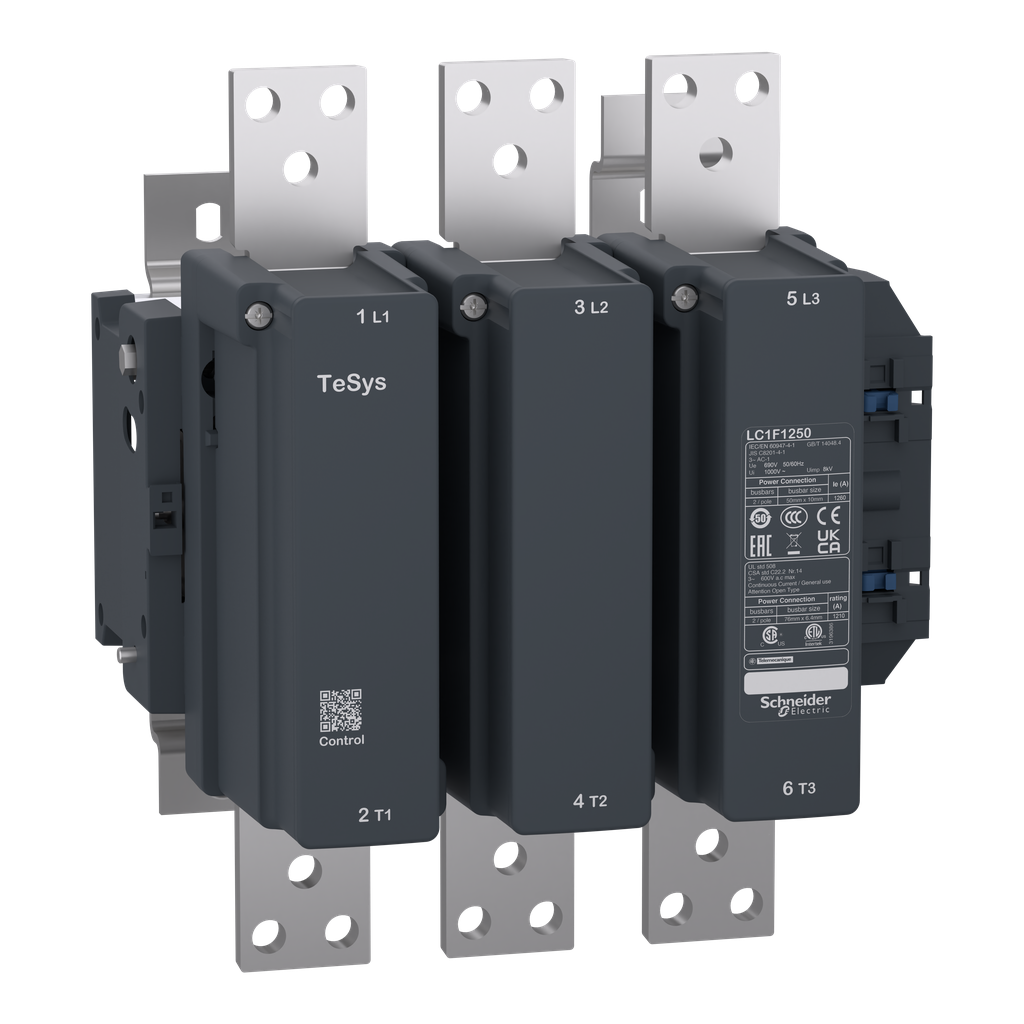

LC1F1250 - contactor body withou coil, TeSys F, 3P(3NO), AC-1

LC1F1250

contactor body withou coil, TeSys F, 3P(3NO), AC-1 <=440V 1260A with coil LX1/ LX9, 110…600V AC 40/400Hz, LX4, 48…250V DC

TeSys F contactor, 3 poles (3NO), 1250A/690V AC-1, for non-inductive load applications. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 600 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Mechanical Robustness	vibrations contactor open2 Gn, 5...300 Hz vibrations contactor closed4 Gn, 5...300 Hz shocks contactor open6 Gn for 1/2 sine wave (11 ms) shocks contactor closed15 Gn for 1/2 sine wave (11 ms)
Ambient Air Temperature For Operation	-5-40 °C
Height	338 mm
Net Weight	19 kg
Ambient Air Temperature For Storage	-60-80 °C
Protective Treatment	TH
Operating Altitude	9842.52 ft (3000 m) without derating
Width	309 mm
Depth	255 mm
Permissible Ambient Air Temperature Around The Device	-40-60 °C
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1505009EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1505009EN
Eu Rohs Directive	Compliant with Exemptions
Product Certifications	CB UL CSA CQC CE UKCA CCC
Power Dissipation Per Pole	120 W AC-1
Average Impedance	0.12 mOhm - Ith 1260 A 50 Hz
Control Circuit Voltage Limits	operational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coil drop-out: 0.25...0.5 Uc AC 40...400 Hz with LX1/LX9 coil operational: 0.85...1.1 Uc DC with LX4 coil drop-out: 0.2...0.35 Uc DC with LX4 coil
[Ith] Conventional Free Air Thermal Current	1260 A (at 40 °C)
Standards	IEC 60947-1 EN 60947-1 JIS C8201-4-1 EN 60947-4-1 IEC 60947-4-1
[Uc] Control Circuit Voltage	110...600 V AC 40...400 Hz with LX1/LX9 coil 28...250 V DC with LX4 coil
Mounting Support	plate
Rated Breaking Capacity	1890 A conforming to IEC 60947-4-1
Irms Rated Making Capacity	1890 A conforming to IEC 60947-4-1
Associated Fuse Rating	1400 A gG at <= 440 V for power circuit
[Uimp] Rated Impulse Withstand Voltage	8 kV
Connections - Terminals	power circuit bar 2 power circuit bolted connection control circuit screw clamp terminals 1 1-4 mm²flexible without cable end control circuit screw clamp terminals 2 1-4 mm²flexible with cable end control circuit screw clamp terminals 1 1-4 mm²flexible with cable end control circuit screw clamp terminals 2 1-2.5 mm²solid without cable end control circuit screw clamp terminals 1 1-4 mm² control circuit screw clamp terminals 2 1-4 mm²
Inrush Power In Va	1500-1730 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil 1420-1920 VA (at 20 °C)with LX4 coil
Maximum Operating Rate	1200 cyc/h 55 °C
Operating Time	40...80 ms closing with LX1/LX9 coil 100...200 ms opening with LX1/LX9 coil 60...70 ms closing with LX4 coil 40...50 ms opening with LX4 coil
Tightening Torque	power circuit 58 N.m control circuit 1.2 N.m
Mechanical Durability	1 Mcycles
Hold-In Power Consumption In Va	20-25 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil 6.5-12.5 VA (at 20 °C)with LX4 coil
Overvoltage Category	III
[Ui] Rated Insulation Voltage	1000 V IEC 60947-4-1 1500 V VDE 0110 group C
[Icw] Rated Short-Time Withstand Current	3000 A 40 °C - 3 min 5200 A 40 °C - 30 s 4000 A 40 °C - 1 min 2000 A 40 °C - 10 min 8000 A 40 °C - 10 s
Heat Dissipation	20-20 W
Country of Origin	Czechia
Width	309 mm
Height	338 mm
Weight	19 kg
[Ue] Rated Operational Voltage	<= 690 V AC 50/60 Hz
Contactor Application	resistive load
Product Or Component Type	contactor
Product Name	TeSys F
Range	TeSys
Pole Contact Composition	3 NO
[Ie] Rated Operational Current	1260 A 40 °C) <= 440 V AC-1
Utilisation Category	AC-1
Poles Description	3P
Device Short Name	LC1F

contactor body withou coil, TeSys F, 3P(3NO), AC-1 <=440V 1260A with coil LX1/ LX9, 110…600V AC 40/400Hz, LX4, 48…250V DC
