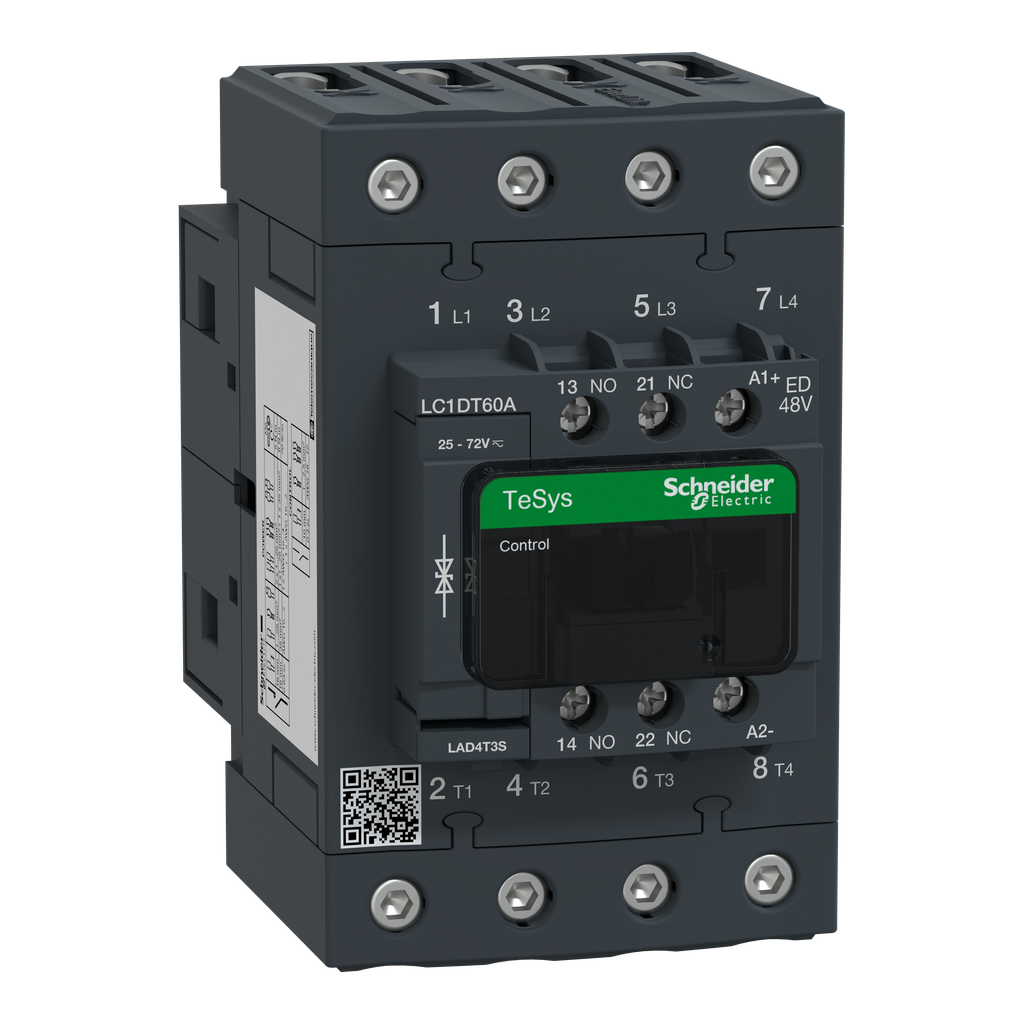

LC1DT60AED

TeSys Deca contactor , 4P(4 NO) , AC-1 , <= 440V, 60 A , 48V DC standard coil

TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 60A/690V AC-1. It provides a 48V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (70mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	DNV UL LROS (Lloyds register of shipping) RINA GL CCC BV CSA GOST
Height	122 mm
Standards	CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508 IEC 60335-1
Climatic Withstand	IACS E10 exposure to damp heat IEC 60947-1 Annex Q category D exposure to damp heat
Net Weight	1.165 kg
Flame Retardance	V1 conforming to UL 94
Protective Treatment	THIEC 60068-2-30
Ip Degree Of Protection	IP20 front face IEC 60529
Mechanical Robustness	vibrations contactor open 2 Gn, 5...300 Hz) vibrations contactor closed 4 Gn, 5...300 Hz) shocks contactor closed 15 Gn for 11 ms) shocks contactor open 10 Gn for 11 ms)
Operating Altitude	0...9842.52 ft (0...3000 m)
Fire Resistance	850 °C IEC 60695-2-1
Width	70 mm
Depth	120 mm
Permissible Ambient Air Temperature Around The Device	-40-60 °C 60-70 °C with derating
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1503009EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	ENVEOLI1503009EN
Eu Rohs Directive	Compliant
Non-Overlap Time	1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Minimum Switching Current	5 mA for signalling circuit
Power Dissipation Per Pole	5.8 W AC-1
Average Impedance	1.6 mOhm - Ith 60 A 50 Hz for power circuit
Auxiliary Contact Composition	1 NO + 1 NC
[Ith] Conventional Free Air Thermal Current	10 A (at 60 °C) for signalling circuit 60 A (at 60 °C) for power circuit
Control Circuit Voltage Limits	0.1...0.3 Uc -40-70 °C drop-out DC 0.75...1.25 Uc -40-60 °C operational DC 1...1.25 Uc 60-70 °C operational DC
Mounting Support	plate rail
Control Circuit Type	DC standard
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Pollution Degree	3
Hold-In Power Consumption In W	7.4-7.4 W 20 °C
Insulation Resistance	> 10 MOhm for signalling circuit
Rated Breaking Capacity	800 A at 440 V for power circuit conforming to IEC 60947
Irms Rated Making Capacity	140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 800 A at 440 V for power circuit conforming to IEC 60947
Associated Fuse Rating	10 A gG for signalling circuit conforming to IEC 60947-5-1 80 A gG at <= 690 V coordination type 1 for power circuit 80 A gG at <= 690 V coordination type 2 for power circuit
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947
Pole Contact Composition	4 NO
Connections - Terminals	control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end power circuit: screw clamp terminal 1 1-35 mm² - cable stiffness: flexible without cable end power circuit: screw clamp terminal 2 1-25 mm² - cable stiffness: flexible without cable end power circuit: screw clamp terminal 1 1-35 mm² - cable stiffness: flexible with cable end power circuit: screw clamp terminal 2 1-25 mm² - cable stiffness: flexible with cable end power circuit: screw clamp terminal 1 1-35 mm² - cable stiffness: solid without cable end power circuit: screw clamp terminal 2 1-25 mm² - cable stiffness: solid without cable end
Coil Technology	built-in bidirectional peak limiting diode suppressor
Time Constant	34 ms
Operating Time	50 ±15 % ms closing 16...24 ms opening
Minimum Switching Voltage	17 V for signalling circuit
Maximum Operating Rate	3600 cyc/h 60 °C
Signalling Circuit Frequency	25...400 Hz
Tightening Torque	control circuit 1.7 N.m EverLink BTR screw connectors flat Ø 6 mm control circuit 1.7 N.m EverLink BTR screw connectors Philips No 2 power circuit 8 N.m EverLink BTR screw connectors 25-35 mm² hexagonal 4 mm power circuit 5 N.m EverLink BTR screw connectors 1-25 mm² hexagonal 4 mm control circuit 1.7 N.m EverLink BTR screw connectors pozidriv No 2 power circuit 2.5 N.m EverLink BTR screw connectors pozidriv No 2
Electrical Durability	0.7 Mcycles 60 A AC-1 <= 440 V
Mechanical Durability	10 Mcycles
Inrush Power In W	19-19 W 20 °C)
Auxiliary Contacts Type	mechanically linked 1 NO + 1 NC IEC 60947-5-1 mirror contact 1 NC IEC 60947-4-1
Compatibility Code	LC1D
Overvoltage Category	III
[Ui] Rated Insulation Voltage	power circuit 600 V CSA power circuit 600 V UL signalling circuit 690 V IEC 60947-1 signalling circuit 600 V CSA signalling circuit 600 V UL power circuit 690 V IEC 60947-4-1
[Icw] Rated Short-Time Withstand Current	320 A 40 °C - 10 s for power circuit 720 A 40 °C - 1 s for power circuit 72 A 40 °C - 10 min for power circuit 165 A 40 °C - 1 min for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit
Protective Cover	with
Country of Origin	France
Width	70 mm
Height	122 mm
Weight	1.165 kg
[Uc] Control Circuit Voltage	48 V DC
[Ue] Rated Operational Voltage	power circuit <= 690 V AC 25...400 Hz power circuit <= 300 V DC
Range Of Product	TeSys Deca
Contactor Application	resistive load
Product Or Component Type	contactor
Range	TeSys TeSys Deca
Utilisation Category	AC-1
[Ie] Rated Operational Current	60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Poles Description	4P
Device Short Name	LC1D

TeSys Deca contactor , 4P(4 NO) , AC-1 , <= 440V, 60 A , 48V DC standard coil
