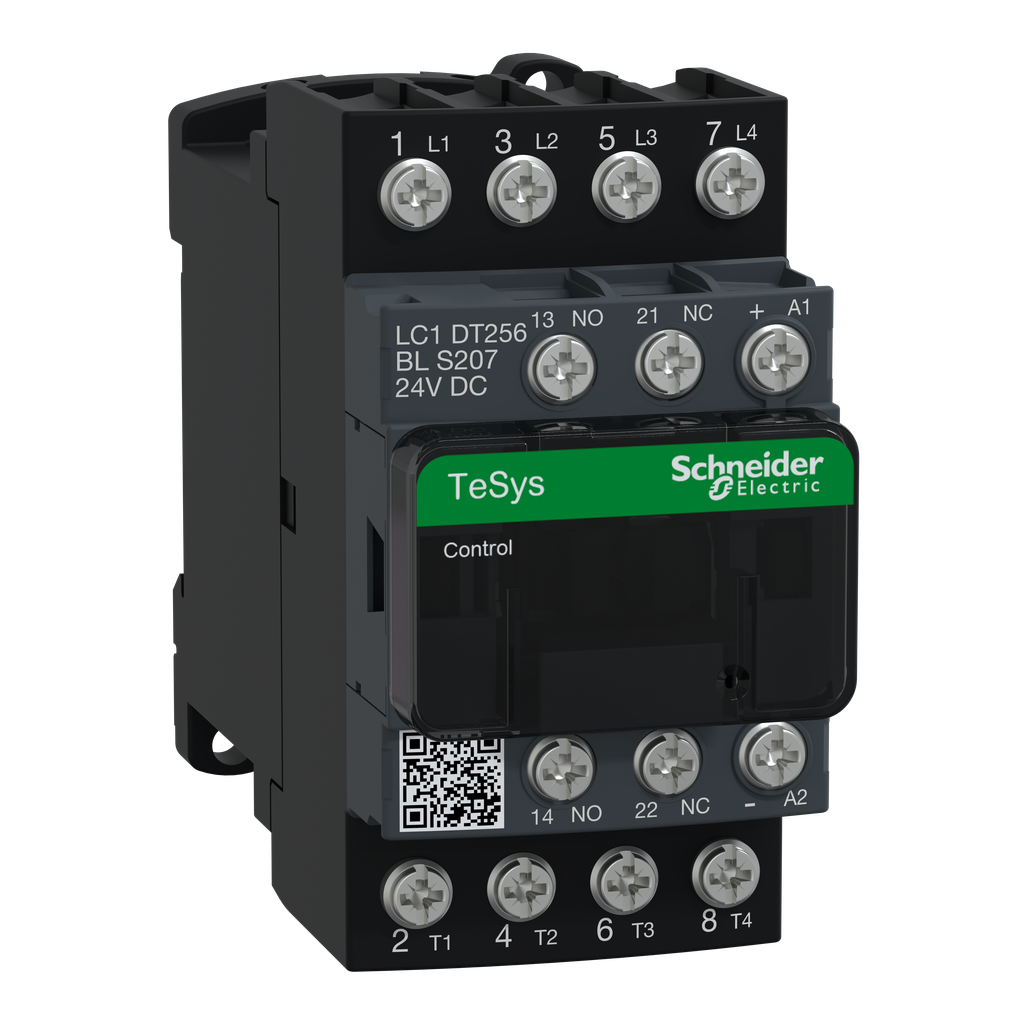

LC1DT256BLS207 - Contactor, TeSys Deca S207,4P(4NO),AC-1 25A ,

LC1DT256BLS207

Contactor, TeSys Deca S207,4P(4NO),AC-1 25A , <=440V, 24V DC coil low consumption coil, lugs-ring terminal

Add to Quote Catalogue

Specifications

Height	85 mm
Climatic Withstand	IACS E10 IEC 60947-1 Annex Q category D
Net Weight	0.365 kg
Ambient Air Temperature For Storage	-60-80 °C
Mechanical Robustness	vibrations contactor open 2 Gn, 5...300 Hz) vibrations contactor closed 4 Gn, 5...300 Hz) shocks contactor open 10 Gn for 11 ms) shocks contactor closed 15 Gn for 11 ms)
Fire Resistance	850 °C IEC 60695-2-1
Width	45 mm
Depth	99 mm
Country of Origin	France
Width	45 mm
Height	85 mm
Weight	0.365 kg
[Ue] Rated Operational Voltage	power circuit <= 690 V AC 25...400 Hz
Range Of Product	TeSys Deca
Contactor Application	resistive load
Product Or Component Type	contactor
Range	TeSys TeSys Deca
Utilisation Category	AC-1 AC-3 AC-3e AC-4
[Ie] Rated Operational Current	25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit 12 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Poles Description	4P
Device Short Name	LC1D
Product Certifications	IEC CCC EAC UA TR UKCA CB
Non-Overlap Time	1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Minimum Switching Current	5 mA for signalling circuit
Power Dissipation Per Pole	1.56 W AC-1 0.36 W AC-3
Average Impedance	2.5 mOhm - Ith 25 A 50 Hz for power circuit
Auxiliary Contact Composition	1 NO + 1 NC
[Ith] Conventional Free Air Thermal Current	10 A (at 60 °C) for signalling circuit 25 A (at 60 °C) for power circuit
Control Circuit Voltage Limits	0.1...0.25 Uc -40-70 °C drop-out DC 0.7...1.25 Uc -40-70 °C operational DC
Mounting Support	plate rail
Control Circuit Type	DC low consumption
Standards	EN/IEC 60947-4-1 EN/IEC 60947-5-1 EN 45545: R22 HL3 EN 45545: R26 HL3 DIN 5510-2
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Hold-In Power Consumption In W	4-4 W 20 °C
Insulation Resistance	> 10 MOhm for signalling circuit
Rated Breaking Capacity	250 A at 440 V for power circuit conforming to IEC 60947
Irms Rated Making Capacity	250 A at 440 V for power circuit conforming to IEC 60947 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1
Associated Fuse Rating	10 A gG for signalling circuit conforming to IEC 60947-5-1 40 A gG at <= 690 V coordination type 1 for power circuit 25 A gG at <= 690 V coordination type 2 for power circuit
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947
Pole Contact Composition	4 NO
Connections - Terminals	control circuit: lugs-ring terminals - external diameter: 8 mm power circuit: lugs-ring terminals - external diameter: 8 mm
Coil Technology	with integral suppression device
Time Constant	37 ms
Operating Time	77 ±15 % ms closing 25 ±20 % ms opening
Minimum Switching Voltage	17 V for signalling circuit
Maximum Operating Rate	3600 cyc/h 60 °C
Tightening Torque	control circuit 1.7 N.m lugs-ring terminals flat Ø 6 mm M3.5 control circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5 power circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5 power circuit 1.7 N.m lugs-ring terminals flat Ø 6 mm M3.5 control circuit 1.7 N.m lugs-ring terminals pozidriv No 2 M3.5 power circuit 1.7 N.m lugs-ring terminals pozidriv No 2 M3.5
Electrical Durability	0.8 Mcycles 25 A AC-1 <= 440 V
Mechanical Durability	30 Mcycles
Inrush Power In W	4-4 W 20 °C)
Auxiliary Contacts Type	mechanically linked 1 NO + 1 NC IEC 60947-5-1 mirror contact 1 NC IEC 60947-4-1
Compatibility Code	LC1D
Operating Altitude	0...9842.52 ft (0...3000 m)
Overvoltage Category	III
[Ui] Rated Insulation Voltage	power circuit 690 V IEC 60947-4-1 signalling circuit 690 V IEC 60947-1
Protective Cover	with
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2205004
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
