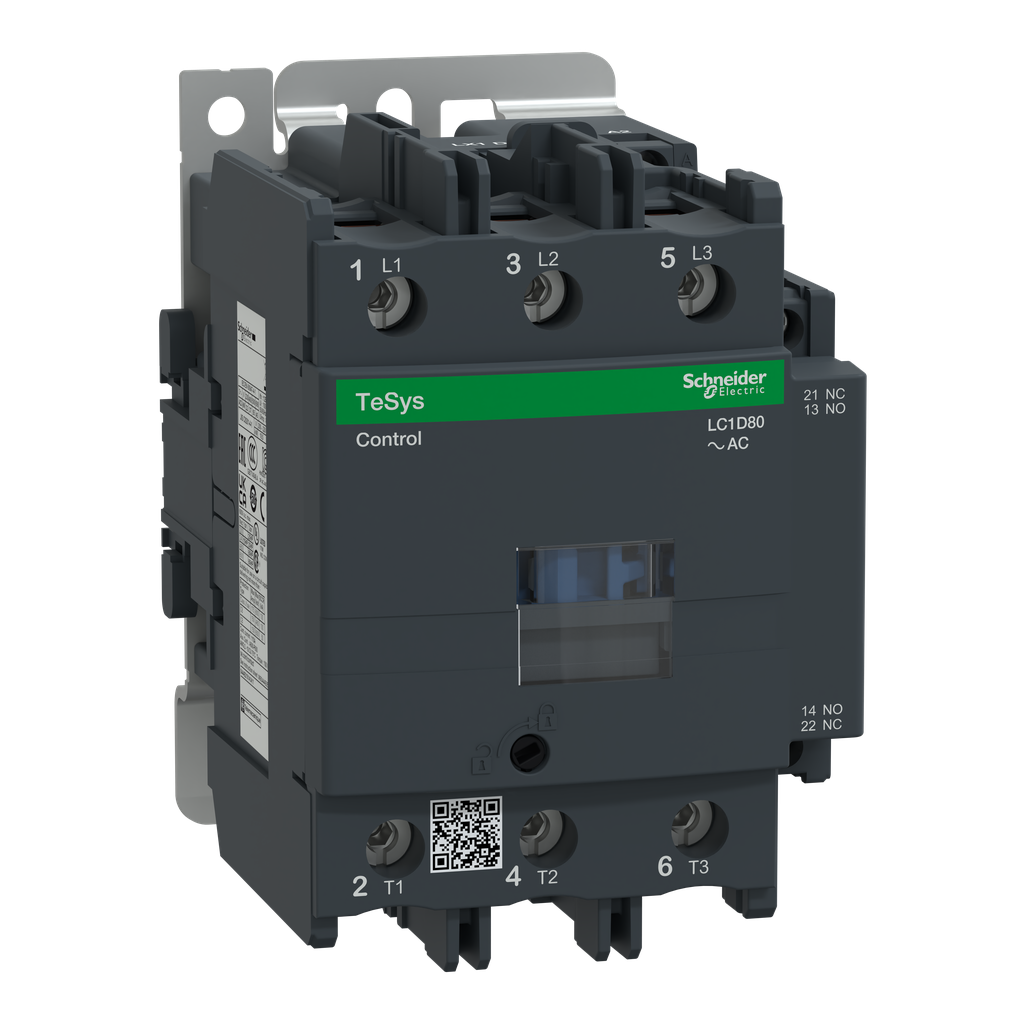

LC1D80X6

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 80A, 600V AC 60Hz coil, screw clamp terminals

Add to Quote Catalogue

Specifications

Product Certifications	CCC UL CB Scheme CSA CE UKCA Marine EAC
Height	127 mm
Standards	EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 CSA C22.2 No 14 UL 60947-4-1 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ IEC 60335-1:Clause 30.2
Climatic Withstand	IACS E10 exposure to damp heat
Net Weight	1.59 kg
Flame Retardance	V1 conforming to UL 94
Protective Treatment	THIEC 60068-2-30
Ip Degree Of Protection	IP20 front face IEC 60529
Mechanical Robustness	vibrations contactor open 2 Gn, 5...300 Hz) shocks contactor open 8 Gn for 11 ms) vibrations contactor closed 3 Gn, 5...300 Hz) shocks contactor closed 10 Gn for 11 ms)
Operating Altitude	0...9842.52 ft (0...3000 m)
Fire Resistance	850 °C IEC 60695-2-1
Width	85 mm
Depth	130 mm
Permissible Ambient Air Temperature Around The Device	-40-60 °C 60-70 °C with derating
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP110205EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	N/A
Sustainable Packaging	Yes
Eu Rohs Directive	Compliant
Non-Overlap Time	1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Minimum Switching Current	5 mA for signalling circuit
Power Dissipation Per Pole	5.1 W AC-3 12.5 W AC-1 5.1 W AC-3e
Average Impedance	0.8 mOhm - Ith 125 A 50 Hz for power circuit
Auxiliary Contact Composition	1 NO + 1 NC
[Ith] Conventional Free Air Thermal Current	10 A (at 60 °C) for signalling circuit 125 A (at 60 °C) for power circuit
Control Circuit Voltage Limits	0.85...1.1 Uc -40-55 °C operational AC 60 Hz 0.3...0.6 Uc -40-70 °C drop-out AC 60 Hz 1...1.1 Uc 55-70 °C operational AC 60 Hz
Mounting Support	rail plate
Control Circuit Type	AC 60 Hz
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Pollution Degree	3
Insulation Resistance	> 10 MOhm for signalling circuit
Rated Breaking Capacity	1100 A at 440 V for power circuit conforming to IEC 60947
Irms Rated Making Capacity	140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 1100 A at 440 V for power circuit conforming to IEC 60947
Associated Fuse Rating	10 A gG for signalling circuit conforming to IEC 60947-5-1 200 A gG at <= 690 V coordination type 1 for power circuit 160 A gG at <= 690 V coordination type 2 for power circuit
Inrush Power In Va	220-220 VA 60 Hz cos phi 0.75 (at 20 °C)
[Uimp] Rated Impulse Withstand Voltage	8 kV IEC 60947
Pole Contact Composition	3 NO
Connections - Terminals	control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end power circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable end power circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable end power circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end power circuit: connector 1 4-50 mm² - cable stiffness: solid without cable end power circuit: connector 2 4-25 mm² - cable stiffness: solid without cable end
Coil Technology	without built-in suppressor module
Operating Time	20...35 ms closing 6...20 ms opening
Minimum Switching Voltage	17 V for signalling circuit
Maximum Operating Rate	3600 cyc/h at 60 °C
Signalling Circuit Frequency	25...400 Hz
Tightening Torque	control circuit 1.2 N.m screw clamp terminals flat Ø 6 mm control circuit 1.2 N.m screw clamp terminals Philips No 2 power circuit 12 N.m connector flat Ø 6 to Ø 8 mm power circuit 12 N.m connector hexagonal 4 mm control circuit 1.2 N.m screw clamp terminals pozidriv No 2
Electrical Durability	0.8 Mcycles 125 A AC-1 <= 440 V 1.5 Mcycles 80 A AC-3 <= 440 V 1.5 Mcycles 80 A AC-3e <= 440 V
Mechanical Durability	10 Mcycles
Auxiliary Contacts Type	mechanically linked 1 NO + 1 NC IEC 60947-5-1 mirror contact 1 NC IEC 60947-4-1
Compatibility Code	LC1D
Hold-In Power Consumption In Va	22-22 VA 60 Hz cos phi 0.3 (at 20 °C)
Overvoltage Category	III
Maximum Horse Power Rating	7.5 hp at 120 V AC 50/60 Hz for 1 phase motors 15 hp at 230/240 V AC 50/60 Hz for 1 phase motors 30 hp at 200/208 V AC 50/60 Hz for 3 phase motors 30 hp at 230/240 V AC 50/60 Hz for 3 phase motors 60 hp at 460/480 V AC 50/60 Hz for 3 phase motors 60 hp at 575/600 V AC 50/60 Hz for 3 phase motors
Motor Power Kw	22 kW at 220...230 V AC 50/60 Hz (AC-3) 37 kW at 380...400 V AC 50/60 Hz (AC-3) 45 kW at 415...440 V AC 50/60 Hz (AC-3) 55 kW at 500 V AC 50/60 Hz (AC-3) 45 kW at 660...690 V AC 50/60 Hz (AC-3) 15 kW at 400 V AC 50/60 Hz (AC-4) 22 kW at 220...230 V AC 50/60 Hz (AC-3e) 37 kW at 380...400 V AC 50/60 Hz (AC-3e) 45 kW at 415...440 V AC 50/60 Hz (AC-3e) 55 kW at 500 V AC 50/60 Hz (AC-3e) 45 kW at 660...690 V AC 50/60 Hz (AC-3e)
[Ui] Rated Insulation Voltage	power circuit 600 V CSA power circuit 600 V UL power circuit 1000 V IEC 60947-4-1 signalling circuit 690 V IEC 60947-1 signalling circuit 600 V CSA signalling circuit 600 V UL
[Icw] Rated Short-Time Withstand Current	640 A 40 °C - 10 s for power circuit 990 A 40 °C - 1 s for power circuit 135 A 40 °C - 10 min for power circuit 320 A 40 °C - 1 min for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit
Heat Dissipation	6-10 W at 60 Hz
Protective Cover	with
Country of Origin	United States
Width	85 mm
Height	127 mm
Weight	1.59 kg
[Uc] Control Circuit Voltage	600 V AC 60 Hz
[Ue] Rated Operational Voltage	power circuit <= 300 V DC 25...400 Hz power circuit <= 690 V AC
Range Of Product	TeSys Deca
Contactor Application	motor control resistive load
Product Or Component Type	contactor
Range	TeSys
Utilisation Category	AC-3 AC-3e AC-4 AC-1
[Ie] Rated Operational Current	125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit 80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit 80 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Poles Description	3P
Device Short Name	LC1D

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 80A, 600V AC 60Hz coil, screw clamp terminals
