LC1D65AED

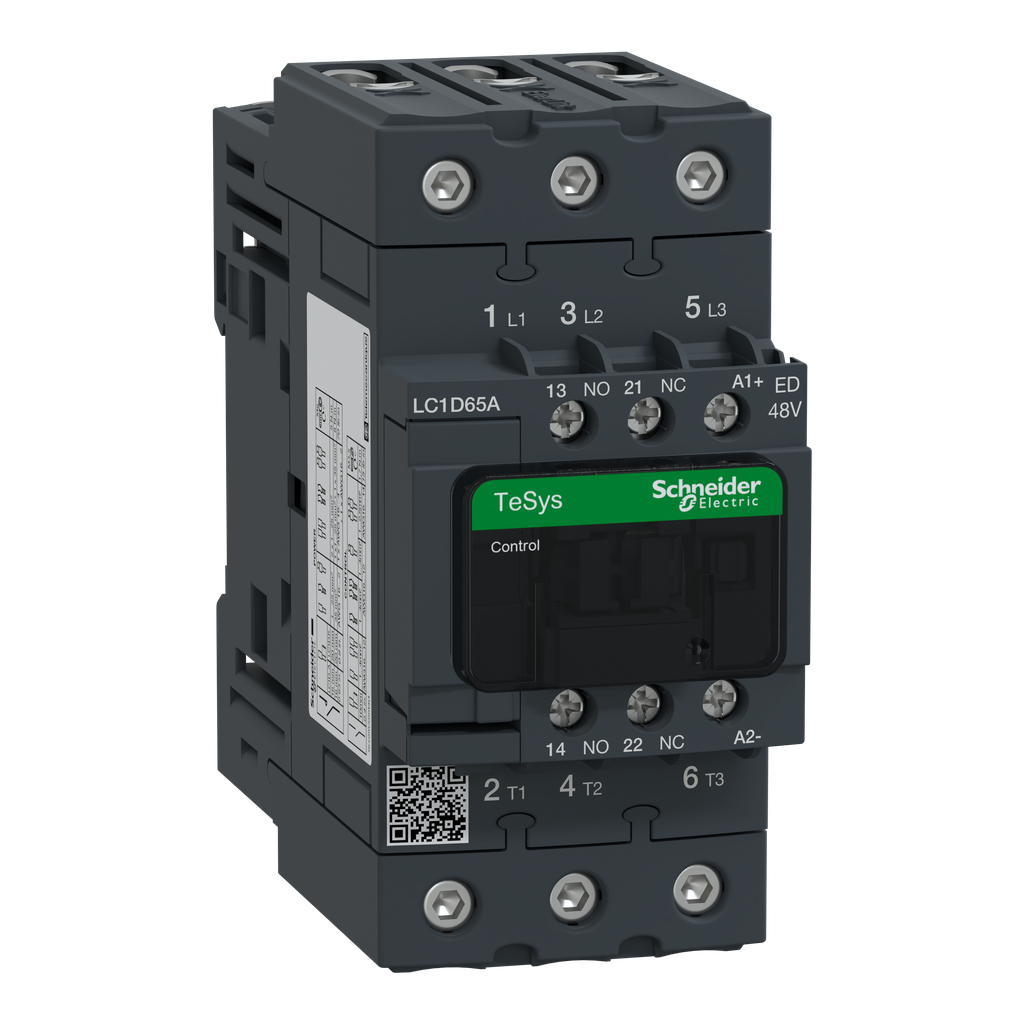

TeSys Deca contactor , 3P(3 NO) , AC-3 , <= 440V, 65 A , 48V DC standard coil

LC1D65AED is a compact 3-pole TeSys D contactor from Schneider Electric for motor applications. Rated 65A AC-3 30kW@400V, it includes a 48V DC coil and 1NO+1NC aux contacts. It can be used in safety applications. LC1D65AED is a 3-pole TeSys D contactor from Schneider Electric for motor applications up to 30kW@400V. It includes a 48V DC coil and 1NO+1NC built-in auxiliary contacts, it can be used in all control systems and safety applications thanks to its certified NC mirror contact. Compact, DIN-rail mounting, it procures high reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Compact product, 55mm wide, for DIN-rail and panel mounting. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with a 48V DC coil for easy integration to all control systems. Provides 2 built-in auxiliary contacts 1NO + 1NC, NC is a certified mirror contact suitable to be included in the control of safety systems. High electrical durability, guaranteed for 1.6 million cycles at 65A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Power connections by EverLink BTR screw terminals providing constant tightening pressure.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	CCC UL CB Scheme CSA CE UKCA Marine EAC
Height	122 mm
Standards	EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 CSA C22.2 No 14 UL 60947-4-1 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ IEC 60335-1:Clause 30.2
Climatic Withstand	IACS E10 exposure to damp heat IEC 60947-1 Annex Q category D exposure to damp heat
Net Weight	0.935 kg
Flame Retardance	V1 conforming to UL 94
Protective Treatment	THIEC 60068-2-30
Ip Degree Of Protection	IP20 front face IEC 60529
Mechanical Robustness	vibrations contactor open 2 Gn, 5...300 Hz) vibrations contactor closed 4 Gn, 5...300 Hz) shocks contactor closed 15 Gn for 11 ms) shocks contactor open 10 Gn for 11 ms)
Operating Altitude	0...9842.52 ft (0...3000 m)
Fire Resistance	850 °C IEC 60695-2-1
Width	55 mm
Depth	120 mm
Permissible Ambient Air Temperature Around The Device	-40-60 °C 60-70 °C with derating
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1503009EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	ENVEOLI1503009EN
Sustainable Packaging	Yes
Eu Rohs Directive	Compliant
Non-Overlap Time	1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Minimum Switching Current	5 mA for signalling circuit
Power Dissipation Per Pole	9.6 W AC-1 6.3 W AC-3
Average Impedance	1.5 mOhm - Ith 80 A 50 Hz for power circuit
Auxiliary Contact Composition	1 NO + 1 NC
[Ith] Conventional Free Air Thermal Current	10 A (at 60 °C) for signalling circuit 80 A (at 60 °C) for power circuit
Control Circuit Voltage Limits	0.1...0.3 Uc -40-70 °C drop-out DC 0.75...1.25 Uc -40-60 °C operational DC 1...1.25 Uc 60-70 °C operational DC
Mounting Support	rail plate
Control Circuit Type	DC standard
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Pollution Degree	3
Hold-In Power Consumption In W	7.4-7.4 W 20 °C
Insulation Resistance	> 10 MOhm for signalling circuit
Rated Breaking Capacity	1000 A at 440 V for power circuit conforming to IEC 60947
Irms Rated Making Capacity	140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 1000 A at 440 V for power circuit conforming to IEC 60947
Associated Fuse Rating	10 A gG for signalling circuit conforming to IEC 60947-5-1 125 A gG at <= 690 V coordination type 1 for power circuit 125 A gG at <= 690 V coordination type 2 for power circuit
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947
Pole Contact Composition	3 NO
Connections - Terminals	control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end power circuit: screw connection 1 1-35 mm² - cable stiffness: flexible without cable end power circuit: screw connection 2 1-25 mm² - cable stiffness: flexible without cable end power circuit: screw connection 1 1-35 mm² - cable stiffness: flexible with cable end power circuit: screw connection 2 1-25 mm² - cable stiffness: flexible with cable end power circuit: screw connection 1 1-35 mm² - cable stiffness: solid without cable end power circuit: screw connection 2 1-25 mm² - cable stiffness: solid without cable end
Coil Technology	built-in bidirectional peak limiting diode suppressor
Time Constant	34 ms
Operating Time	50 ±15 % ms closing 16...24 ms opening
Minimum Switching Voltage	17 V for signalling circuit
Maximum Operating Rate	3600 cyc/h at 60 °C
Signalling Circuit Frequency	25...400 Hz
Tightening Torque	control circuit 1.7 N.m EverLink BTR screw connectors flat Ø 6 mm control circuit 1.7 N.m EverLink BTR screw connectors Philips No 2 power circuit 8 N.m EverLink BTR screw connectors 25-35 mm² hexagonal 4 mm power circuit 5 N.m EverLink BTR screw connectors 1-25 mm² hexagonal 4 mm control circuit 1.7 N.m EverLink BTR screw connectors pozidriv No 2 power circuit 2.5 N.m EverLink BTR screw connectors pozidriv No 2
Electrical Durability	0.5 Mcycles 80 A AC-1 <= 440 V 1.45 Mcycles 65 A AC-3 <= 440 V
Mechanical Durability	10 Mcycles
Inrush Power In W	19-19 W 20 °C)
Auxiliary Contacts Type	mechanically linked 1 NO + 1 NC IEC 60947-5-1 mirror contact 1 NC IEC 60947-4-1
Compatibility Code	LC1D
Overvoltage Category	III
Maximum Horse Power Rating	40 hp at 460/480 V AC 50/60 Hz for 3 phase motors 5 hp at 115 V AC 50/60 Hz for 1 phase motors 10 hp at 230/240 V AC 50/60 Hz for 1 phase motors 20 hp at 200/208 V AC 50/60 Hz for 3 phase motors 20 hp at 230/240 V AC 50/60 Hz for 3 phase motors 50 hp at 575/600 V AC 50/60 Hz for 3 phase motors
Motor Power Kw	11 kW at 400 V AC 50/60 Hz (AC-4) 18.5 kW at 220...230 V AC 50/60 Hz (AC-3) 30 kW at 380...400 V AC 50/60 Hz (AC-3) 37 kW at 500 V AC 50/60 Hz (AC-3) 37 kW at 660...690 V AC 50/60 Hz (AC-3)
[Ui] Rated Insulation Voltage	power circuit 600 V CSA power circuit 600 V UL signalling circuit 690 V IEC 60947-1 signalling circuit 600 V CSA signalling circuit 600 V UL power circuit 690 V IEC 60947-4-1
[Icw] Rated Short-Time Withstand Current	640 A 40 °C - 10 s for power circuit 900 A 40 °C - 1 s for power circuit 110 A 40 °C - 10 min for power circuit 260 A 40 °C - 1 min for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit
Protective Cover	with
Country of Origin	France
Width	55 mm
Height	122 mm
Weight	0.935 kg
[Uc] Control Circuit Voltage	48 V DC
[Ue] Rated Operational Voltage	power circuit <= 690 V AC 25...400 Hz power circuit <= 300 V DC
Range Of Product	TeSys Deca
Contactor Application	motor control resistive load
Product Or Component Type	contactor
Range	TeSys TeSys Deca
Utilisation Category	AC-4 AC-1 AC-3
[Ie] Rated Operational Current	80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit 65 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Poles Description	3P
Device Short Name	LC1D

TeSys Deca contactor , 3P(3 NO) , AC-3 , <= 440V, 65 A , 48V DC standard coil
