Home > Schneider Electric > Contactors and Protection Relays > Contactors & Reversing Contactors > TeSys Deca Contactors > LC1D326BLS207 – IEC contactor, TeSys D, nonreversing, 32A, 20HP at 480VAC, 3 phase, 3 pole, 3 NO, low consumption 24VDC coil, open style

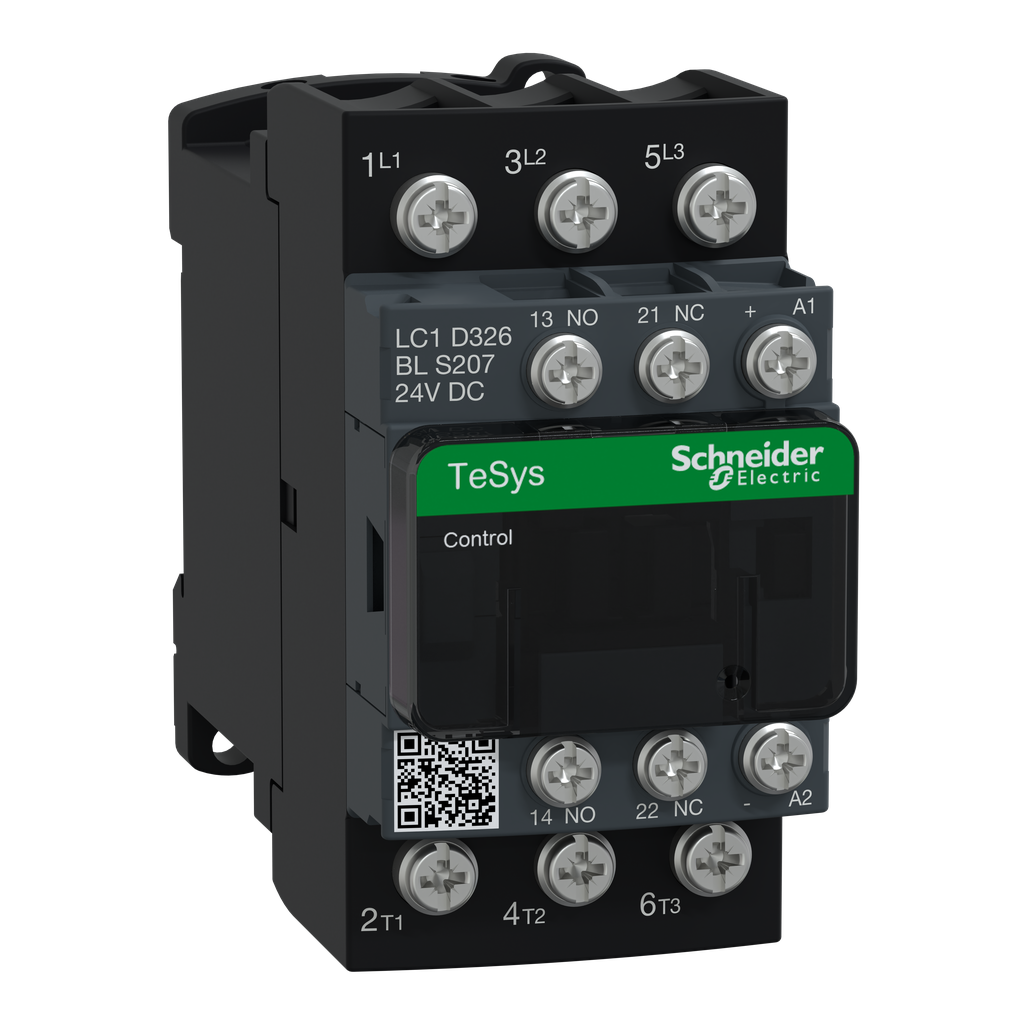

LC1D326BLS207 – IEC contactor, TeSys D, nonreversing, 32A, 20HP at 480VAC, 3 phase, 3 pole, 3 NO, low consumption 24VDC coil, open style
LC1D326BLS207
IEC contactor, TeSys D, nonreversing, 32A, 20HP at 480VAC, 3 phase, 3 pole, 3 NO, low consumption 24VDC coil, open style

This TeSys D contactor has been designed for motor control in railway applications. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 32A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 7.5HP at 200 to 208VAC, 10HP at 240VAC, 20HP at 480VAC and 30HP at 600VAC three phase. Contactor is also rated for 2HP at 115VAC and 5HP at 240VAC single phase. Contactor is supplied with a low consumption 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Ring-lug screw terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.98 inches deep. It weighs 1.18 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Height 85 mm
Climatic Withstand
  • IACS E10
  • IEC 60947-1 Annex Q category D
Net Weight 0.375 kg
Ambient Air Temperature For Storage -60-80 °C
Mechanical Robustness
  • vibrations contactor open 2 Gn, 5...300 Hz)
  • vibrations contactor closed 4 Gn, 5...300 Hz)
  • shocks contactor closed 15 Gn for 11 ms)
  • shocks contactor open 8 Gn for 11 ms)
Fire Resistance 850 °C IEC 60695-2-1
Width 45 mm
Depth 101 mm
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP2205004
Sustainable Offer Status Green Premium product
Pvc Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile N/A
Eu Rohs Directive Compliant with Exemptions
Product Certifications
  • IEC
  • CCC
  • EAC
  • UA
  • TR
  • UKCA
  • CB
Non-Overlap Time
  • 1.5 ms on de-energisation between NC and NO contact
  • 1.5 ms on energisation between NC and NO contact
Minimum Switching Current 5 mA for signalling circuit
Power Dissipation Per Pole
  • 2 W AC-3
  • 5 W AC-1
  • 2 W AC-3e
Average Impedance 2 mOhm - Ith 50 A 50 Hz for power circuit
Auxiliary Contact Composition 1 NO + 1 NC
[Ith] Conventional Free Air Thermal Current
  • 10 A (at 60 °C) for signalling circuit
  • 50 A (at 60 °C) for power circuit
Control Circuit Voltage Limits
  • 0.1...0.25 Uc -40-70 °C drop-out DC
  • 0.7...1.25 Uc -40-70 °C operational DC
Mounting Support
  • rail
  • plate
Control Circuit Type DC low consumption
Standards
  • EN/IEC 60947-4-1
  • EN/IEC 60947-5-1
  • EN 45545: R22 HL3
  • EN 45545: R26 HL3
  • DIN 5510-2
Safety Reliability Level
  • B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
  • B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Hold-In Power Consumption In W 4-4 W 20 °C
Insulation Resistance > 10 MOhm for signalling circuit
Rated Breaking Capacity 550 A at 440 V for power circuit conforming to IEC 60947
Irms Rated Making Capacity
  • 140 A AC for signalling circuit conforming to IEC 60947-5-1
  • 250 A DC for signalling circuit conforming to IEC 60947-5-1
  • 550 A at 440 V for power circuit conforming to IEC 60947
Associated Fuse Rating
  • 10 A gG for signalling circuit conforming to IEC 60947-5-1
  • 63 A gG at <= 690 V coordination type 1 for power circuit
  • 63 A gG at <= 690 V coordination type 2 for power circuit
[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947
Pole Contact Composition 3 NO
Connections - Terminals
  • control circuit: lugs-ring terminals - external diameter: 8 mm
  • power circuit: lugs-ring terminals - external diameter: 12 mm
Coil Technology with integral suppression device
Time Constant 37 ms
Operating Time
  • 77 ±15 % ms closing
  • 25 ±20 % ms opening
Minimum Switching Voltage 17 V for signalling circuit
Maximum Operating Rate 3600 cyc/h 60 °C
Tightening Torque
  • control circuit 1.7 N.m lugs-ring terminals flat Ø 6 mm M3.5
  • control circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5
  • power circuit 2.5 N.m lugs-ring terminals Philips No 2 M4
  • power circuit 2.5 N.m lugs-ring terminals flat Ø 6 mm M4
Electrical Durability
  • 1.65 Mcycles 32 A AC-3 <= 440 V
  • 1.4 Mcycles 50 A AC-1 <= 440 V
  • 1.65 Mcycles 32 A AC-3e <= 440 V
Mechanical Durability 30 Mcycles
Inrush Power In W 4-4 W 20 °C)
Auxiliary Contacts Type
  • mechanically linked 1 NO + 1 NC IEC 60947-5-1
  • mirror contact 1 NC IEC 60947-4-1
Compatibility Code LC1D
Operating Altitude 0...9842.52 ft (0...3000 m)
Overvoltage Category III
Motor Power Kw
  • 7.5 kW at 220/230 V AC 50 Hz (AC-3)
  • 15 kW at 380/400 V AC 50 Hz (AC-3)
  • 15 kW at 415 V AC 50 Hz (AC-3)
  • 15 kW at 440 V AC 50 Hz (AC-3)
  • 18.5 kW at 500 V AC 50 Hz (AC-3)
  • 18.5 kW at 660/690 V AC 50 Hz (AC-3)
  • 7.5 kW at 220/230 V AC 50 Hz (AC-3e)
  • 15 kW at 380/400 V AC 50 Hz (AC-3e)
  • 15 kW at 415 V AC 50 Hz (AC-3e)
  • 15 kW at 440 V AC 50 Hz (AC-3e)
  • 18.5 kW at 500 V AC 50 Hz (AC-3e)
  • 18.5 kW at 660/690 V AC 50 Hz (AC-3e)
[Ui] Rated Insulation Voltage
  • power circuit 690 V IEC 60947-4-1
  • signalling circuit 690 V IEC 60947-1
Protective Cover with
Country of Origin France
Width 45 mm
Height 85 mm
Weight 0.375 kg
[Ue] Rated Operational Voltage power circuit <= 690 V AC 25...400 Hz
Range Of Product TeSys Deca
Contactor Application
  • resistive load
  • motor control
Product Or Component Type contactor
Range
  • TeSys
  • TeSys Deca
Utilisation Category
  • AC-3
  • AC-1
  • AC-3e
[Ie] Rated Operational Current
  • 32 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
  • 50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
  • 32 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Poles Description 3P
Device Short Name LC1D
