Home > Schneider Electric > Contactors and Protection Relays > Contactors & Reversing Contactors > TeSys Deca Contactors > LC1D115004B7 – IEC contactor, TeSys Deca, nonreversing, 200A resistive, 4 pole, 4 NO, 24VAC 50/60Hz coil, open style

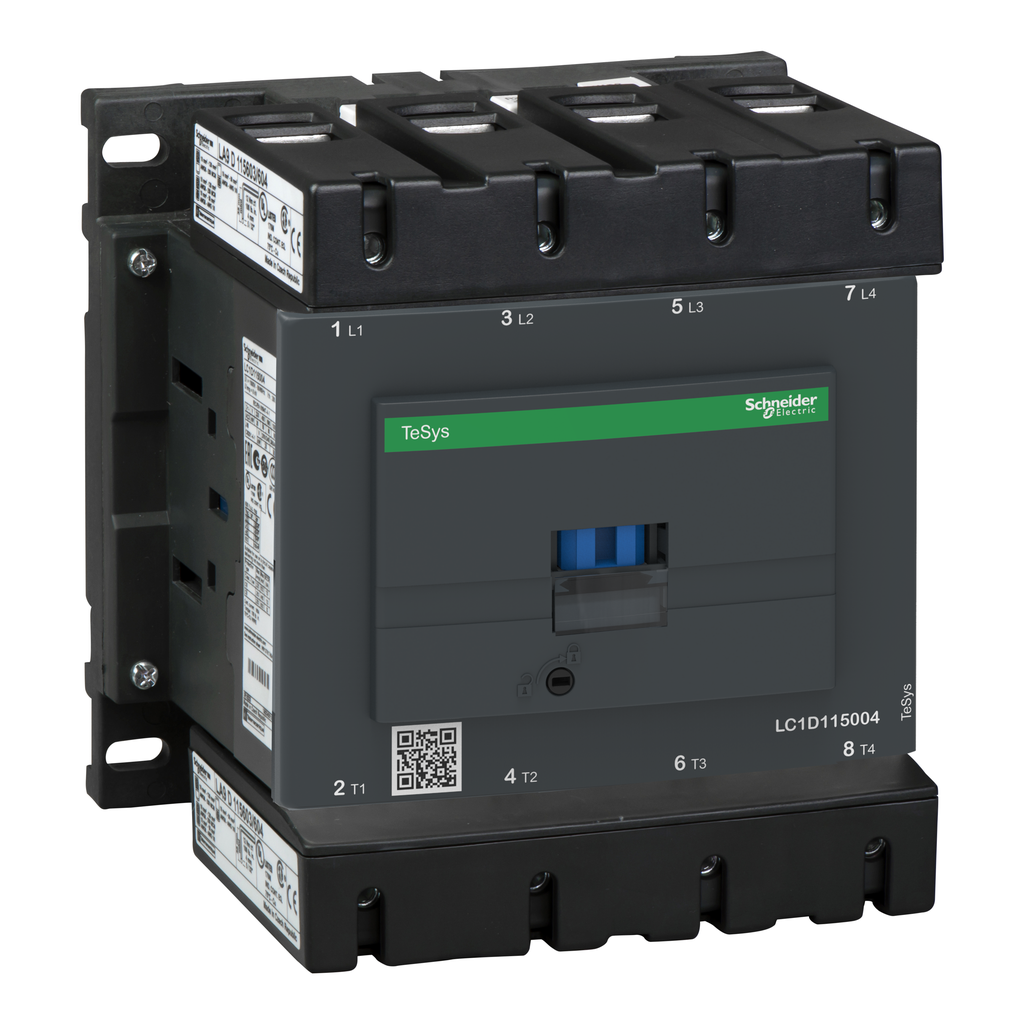

LC1D115004B7 – IEC contactor, TeSys Deca, nonreversing, 200A resistive, 4 pole, 4 NO, 24VAC 50/60Hz coil, open style
LC1D115004B7
IEC contactor, TeSys Deca, nonreversing, 200A resistive, 4 pole, 4 NO, 24VAC 50/60Hz coil, open style

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has four normally open power contacts. Power contacts have a 200A resistive load rating. Contactor is supplied with a 24 VAC 50/60 Hz coil. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 6.22 inches tall, 5.91 inches wide and 5.20 inches deep. It weighs 6.31 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Certifications
  • GOST
  • DNV
  • UL
  • GL
  • BV
  • LROS (Lloyds register of shipping)
  • CSA
  • RINA
  • CCC
  • UKCA
Height 158 mm
Standards
  • CSA C22.2 No 14
  • EN 60947-4-1
  • EN 60947-5-1
  • IEC 60947-4-1
  • IEC 60947-5-1
  • UL 508
Climatic Withstand
  • IACS E10 exposure to damp heat
  • IEC 60947-1 Annex Q category D exposure to damp heat
Net Weight 2.86 kg
Flame Retardance V1 conforming to UL 94
Protective Treatment THIEC 60068-2-30
Ip Degree Of Protection IP20 front face IEC 60529
Mechanical Robustness
  • vibrations contactor open 2 Gn, 5...300 Hz)
  • vibrations contactor closed 4 Gn, 5...300 Hz)
  • shocks contactor closed 15 Gn for 11 ms)
  • shocks contactor open 6 Gn for 11 ms)
Operating Altitude 0...9842.52 ft (0...3000 m)
Fire Resistance 850 °C IEC 60695-2-1
Width 150 mm
Depth 132 mm
Permissible Ambient Air Temperature Around The Device
  • -40-60 °C
  • 60-70 °C with derating
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP060301EN
Sustainable Offer Status Green Premium product
Pvc Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile ENVEOLI100405EN
Eu Rohs Directive Compliant with Exemptions
Power Dissipation Per Pole 24 W AC-1
Average Impedance 0.6 mOhm - Ith 200 A 50 Hz for power circuit
[Ith] Conventional Free Air Thermal Current 200 A (at 60 °C) for power circuit
Control Circuit Voltage Limits
  • 0.3...0.5 Uc -40-70 °C drop-out AC 50/60 Hz
  • 0.8...1.15 Uc -40-55 °C operational AC 50/60 Hz
  • 1...1.15 Uc 55-70 °C operational AC 50/60 Hz
Mounting Support
  • rail
  • plate
Control Circuit Type AC 50/60 Hz
Safety Reliability Level
  • B10d = 684932 cycles contactor with nominal load EN/ISO 13849-1
  • B10d = 10000000 cycles contactor with mechanical load EN/ISO 13849-1
Pollution Degree 3
Rated Breaking Capacity 1100 A at 440 V for power circuit conforming to IEC 60947
Irms Rated Making Capacity 1260 A at 440 V for power circuit conforming to IEC 60947
Associated Fuse Rating
  • 250 A gG at <= 690 V coordination type 1 for power circuit
  • 200 A gG at <= 690 V coordination type 2 for power circuit
Inrush Power In Va
  • 280-350 VA 60 Hz cos phi 0.8 (at 20 °C)
  • 280-350 VA 50 Hz cos phi 0.8 (at 20 °C)
[Uimp] Rated Impulse Withstand Voltage 8 kV IEC 60947
Pole Contact Composition 4 NO
Connections - Terminals
  • control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
  • control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end
  • control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible without cable end
  • control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible without cable end
  • control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: solid without cable end
  • control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: solid without cable end
  • power circuit: connector 1 10-120 mm² - cable stiffness: flexible without cable end
  • power circuit: connector 2 10-50 mm² - cable stiffness: flexible without cable end
  • power circuit: connector 1 10-120 mm² - cable stiffness: flexible with cable end
  • power circuit: connector 2 10-50 mm² - cable stiffness: flexible with cable end
  • power circuit: connector 1 10-120 mm² - cable stiffness: solid without cable end
  • power circuit: connector 2 10-50 mm² - cable stiffness: solid without cable end
Coil Technology built-in bidirectional peak limiting diode suppressor
Operating Time
  • 6...20 ms opening
  • 20...50 ms closing
Maximum Operating Rate 2400 cyc/h 60 °C
Tightening Torque
  • control circuit 1.2 N.m screw clamp terminals flat Ø 6 mm
  • control circuit 1.2 N.m screw clamp terminals Philips No 2
  • power circuit 12 N.m connector hexagonal 4 mm
  • control circuit 1.2 N.m screw clamp terminals pozidriv No 2 M3.5
Electrical Durability 0.8 Mcycles 200 A AC-1 <= 440 V
Mechanical Durability 8 Mcycles
Compatibility Code LC1D
Hold-In Power Consumption In Va
  • 2-18 VA 60 Hz cos phi 0.3 (at 20 °C)
  • 2-18 VA 50 Hz cos phi 0.3 (at 20 °C)
Overvoltage Category III
[Ui] Rated Insulation Voltage
  • power circuit 600 V CSA
  • power circuit 600 V UL
  • power circuit 1000 V IEC 60947-4-1
[Icw] Rated Short-Time Withstand Current
  • 250 A 40 °C - 10 min for power circuit
  • 550 A 40 °C - 1 min for power circuit
  • 950 A 40 °C - 10 s for power circuit
  • 1100 A 40 °C - 1 s for power circuit
Heat Dissipation 3-8 W at 50/60 Hz
Protective Cover with
Country of Origin Czechia
Width 150 mm
Height 158 mm
Weight 2.86 kg
[Uc] Control Circuit Voltage 24 V AC 50/60 Hz
[Ue] Rated Operational Voltage
  • power circuit <= 1000 V AC 25...400 Hz
  • power circuit <= 460 V DC
Range Of Product TeSys Deca
Contactor Application resistive load
Product Or Component Type contactor
Range TeSys
Utilisation Category
  • AC-1
  • AC-3
  • AC-3e
  • AC-4
[Ie] Rated Operational Current 200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Poles Description 4P
Device Short Name LC1D
