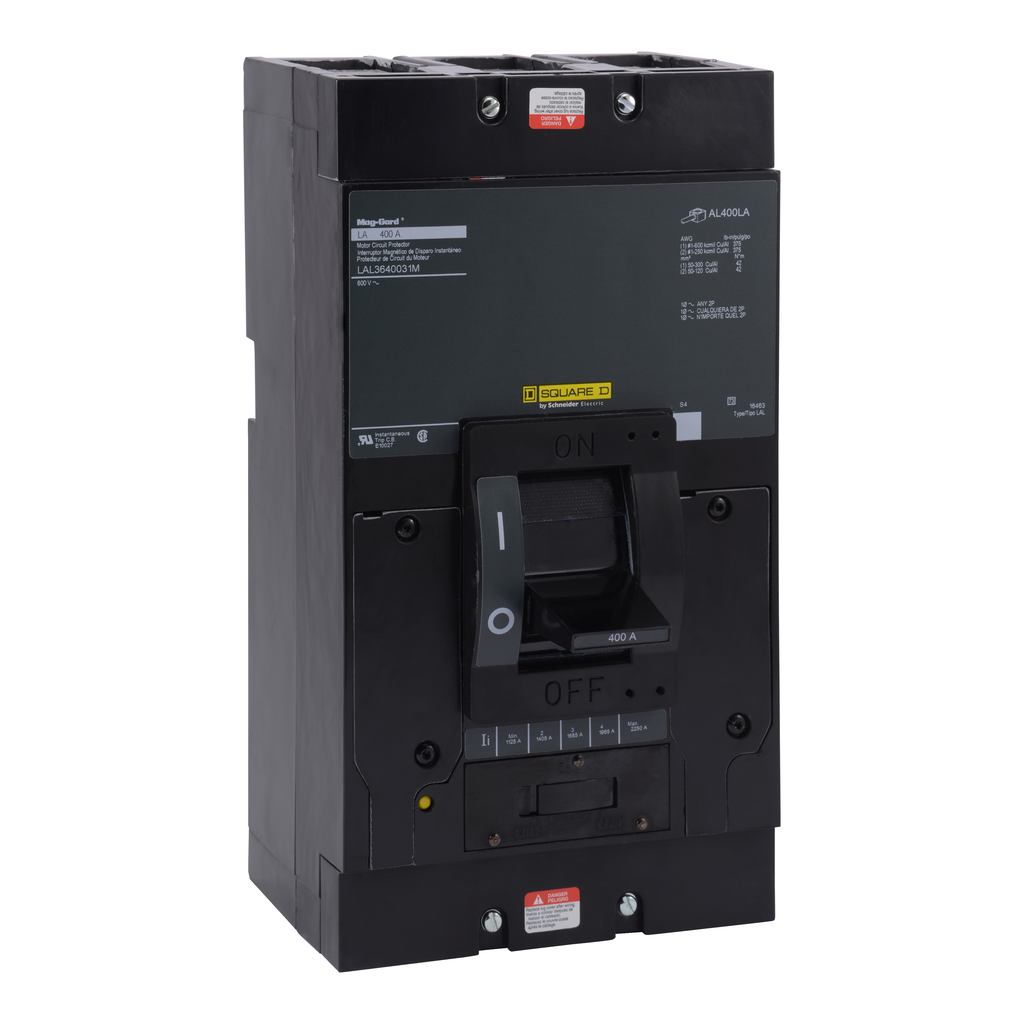

LAL3640031M
Motor circuit protector, LA, unit mount, 400A, 3 pole, 22kA, 600VAC, 10kA, 250VDC
Square D LA magnetic only molded case circuit breakers (Mag-Gard) provide motor circuit protection. They are designed as disconnect devices for use in combination with motor starts. They are magnetic detection so provide short circuit protection only. This Square D LA Mag-Gard is 3 pole unit mount, 400A and 600VAC, with lugs. Mag-Gard circuit breakers have an adjustable amperage pick up so can be set to open instantaneously to coordinate with the motor.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1410004EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant with Exemptions |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free plastic parts product |
| Terminal Identifier | AL400LA |
| Height | 11 in |
| Mounting Mode | unit mount |
| Tightening Torque |
|
| Magnetic Tripping Current | 2250-2250 A |
| Poles Description | 3P |
| Line Rated Current | 400 A |
| Width | 6 in |
| Electrical Connection |
|
| Depth | 5.84 in |
| Magnetic Hold Current | 1125 A |
| Country of Origin | Mexico |
| Width | 6 in |
| Height | 11 in |
| Trip Unit Technology | thermal-magnetic |
| Product Or Component Type | Motor Circuit Protector |
