Circuit breaker, LA, 200A, 2 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic, short handle

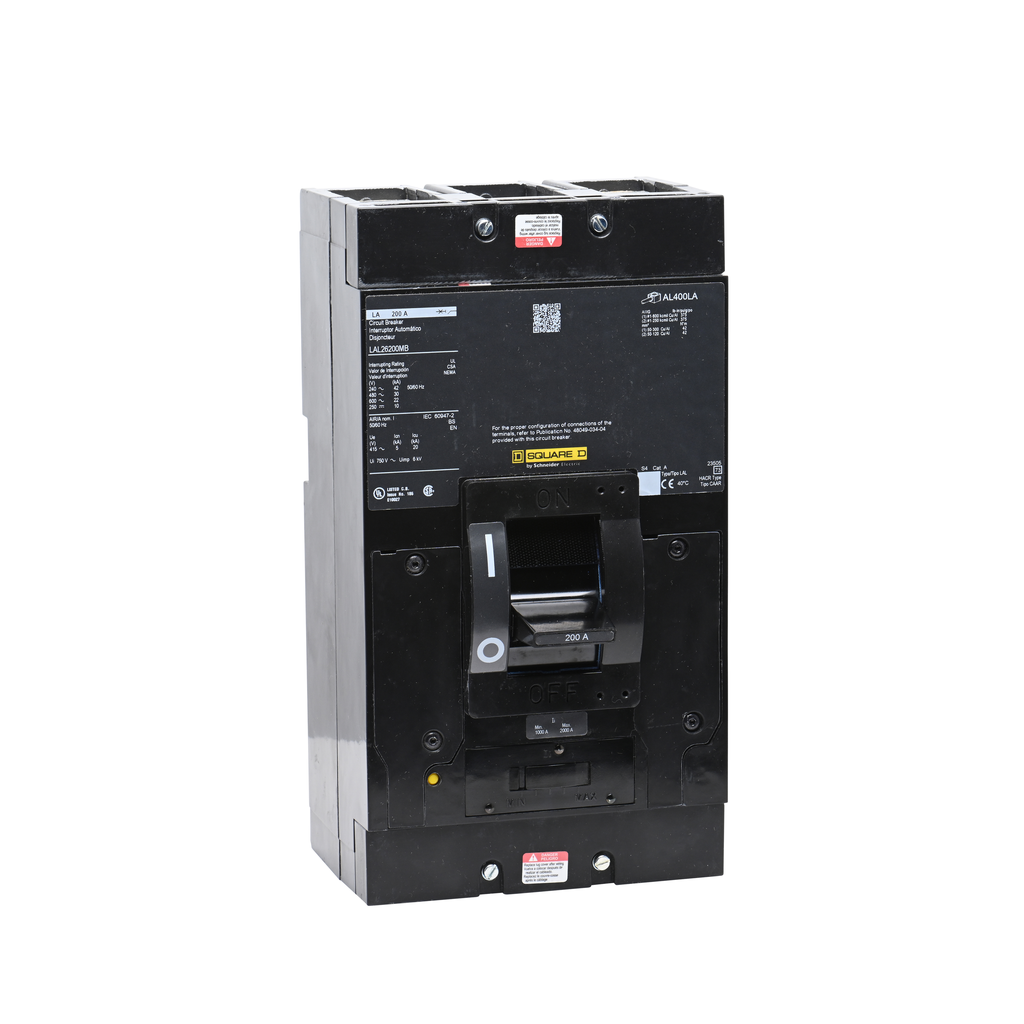

Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 2 pole unit mount breaker, 200A and 600VAC, with lugs. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. The circuit breaker MB suffix indicates a shorter handle so that a panel door can close. LA breakers are UL 489, CSA, IEC certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1410004EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Terminal Identifier | AL400LA |
| Height | 11 in |
| Tightening Torque |
|
| Magnetic Tripping Current | 2000-2000 A |
| Operator Profile | short lever |
| Electrical Connection |
|
| Magnetic Hold Current | 1000 A |
| Circuit Breaker Application | HACR rated |
| Mounting Mode | unit mount |
| Poles Description | 2P |
| Line Rated Current | 200 A |
| Width | 6 in |
| Depth | 5.84 in |
| Country of Origin | Mexico |
| Width | 6 in |
| Height | 11 in |
| Trip Unit Technology | thermal-magnetic |
| Product Or Component Type | circuit breaker |
| Range | PowerPact |
