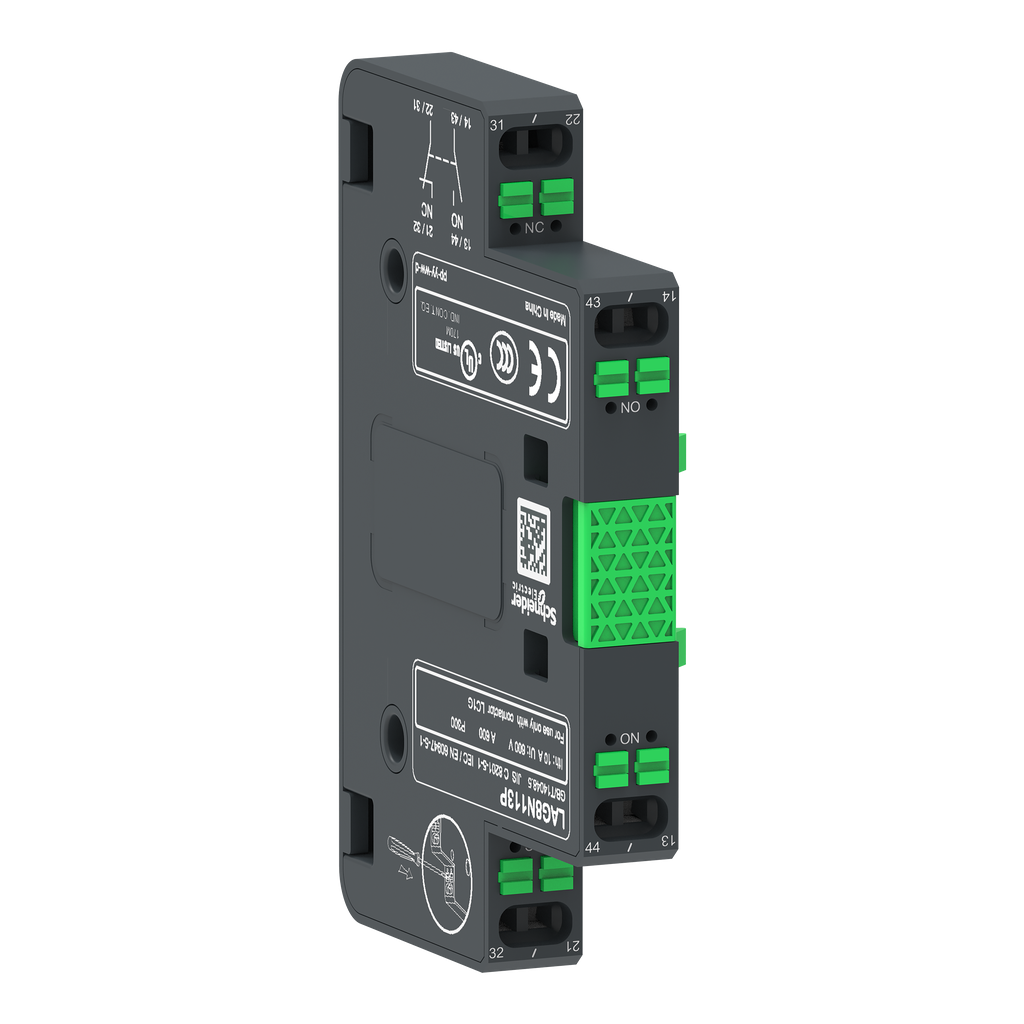

LAG8N113P – Auxiliary contact block,TeSys Giga contactor,1NO   1NC,lateral face side mounting,push-in terminals L1/R1
LAG8N113P
Auxiliary contact block,TeSys Giga contactor,1NO + 1NC,lateral face side mounting,push-in terminals L1/R1

These accessories are auxiliary contact block 1NO+1NC for TeSys Giga contactors. Highly reliable and suitable for 17V 1mA to address more challenging specific control applications. It is designed to side mounting by spring terminals R1/L1. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP2105013
Sustainable Offer Status Green Premium product
Pvc Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation X
Circularity Profile ENVEOLI2105013
Eu Rohs Directive Compliant with Exemptions
Halogen Content Performance Halogen free plastic parts product
Product Certifications
  • CB Scheme
  • CCC
  • cULus
  • CE
  • UKCA
  • EU-RO-MR by DNV-GL
  • EAC
Ambient Air Temperature For Operation -25-60 °C
Standards
  • EN/IEC 60947-5-1
  • UL 60947-5-1
  • CSA C22.2 No 60947-5-1
  • GB 14048.5
Ip Degree Of Protection IP20 conforming to IEC 60529
Ambient Air Temperature For Storage -60-80 °C
Protective Treatment TH
Operating Altitude 9842.52 ft (3000 m)
Country of Origin France
Width 15.4 mm
Height 55.8 mm
Weight 0.05 kg
Range Of Product TeSys G
Range Compatibility TeSys G LC1G
Product Or Component Type auxiliary contact block
Connections - Terminals
  • screw clamp terminals 0.75-2.5 mm²solid stranded without cable end
  • screw clamp terminals 0.75-2.5 mm²flexible with cable end
Range TeSys
Pole Contact Composition 1 NO + 1 NC
Auxiliary Contacts Operation instantaneous
Device Short Name LAG8N
Non-Overlap Time
  • 1.5 ms on de-energisation no overlap between NC and NO contact
  • 1.5 ms on energisation no overlap between NC and NO contact
Permissible Short-Time Rating
  • 100 A 60 °C 1 s
  • 120 A 60 °C 500 ms
  • 140 A 60 °C 100 ms
Minimum Switching Current 1 mA
Height 55.8 mm
[Ith] Conventional Free Air Thermal Current 10 A (at 60 °C)
[Ue] Rated Operational Voltage 600 V AC 25...400 Hz
Protection Type gG fuse 10 A
Insulation Resistance > 10 MOhm
Irms Rated Making Capacity
  • 140 A AC conforming to IEC 60947-5-1
  • 250 A DC conforming to IEC 60947-5-1
Net Weight 0.05 kg
Mounting Location side
[Ui] Rated Insulation Voltage
  • 600 V IEC 60947-5-1
  • 600 V CSA
  • 600 V UL
Minimum Switching Voltage 17 V
Mechanical Durability 8 Mcycles
Width 15.4 mm
Depth 84.8 mm
