LADT9R1
Kit for assembling 4P changeover contactors, LC1DT20-DT40 with screw clamp terminals, without electrical interlock

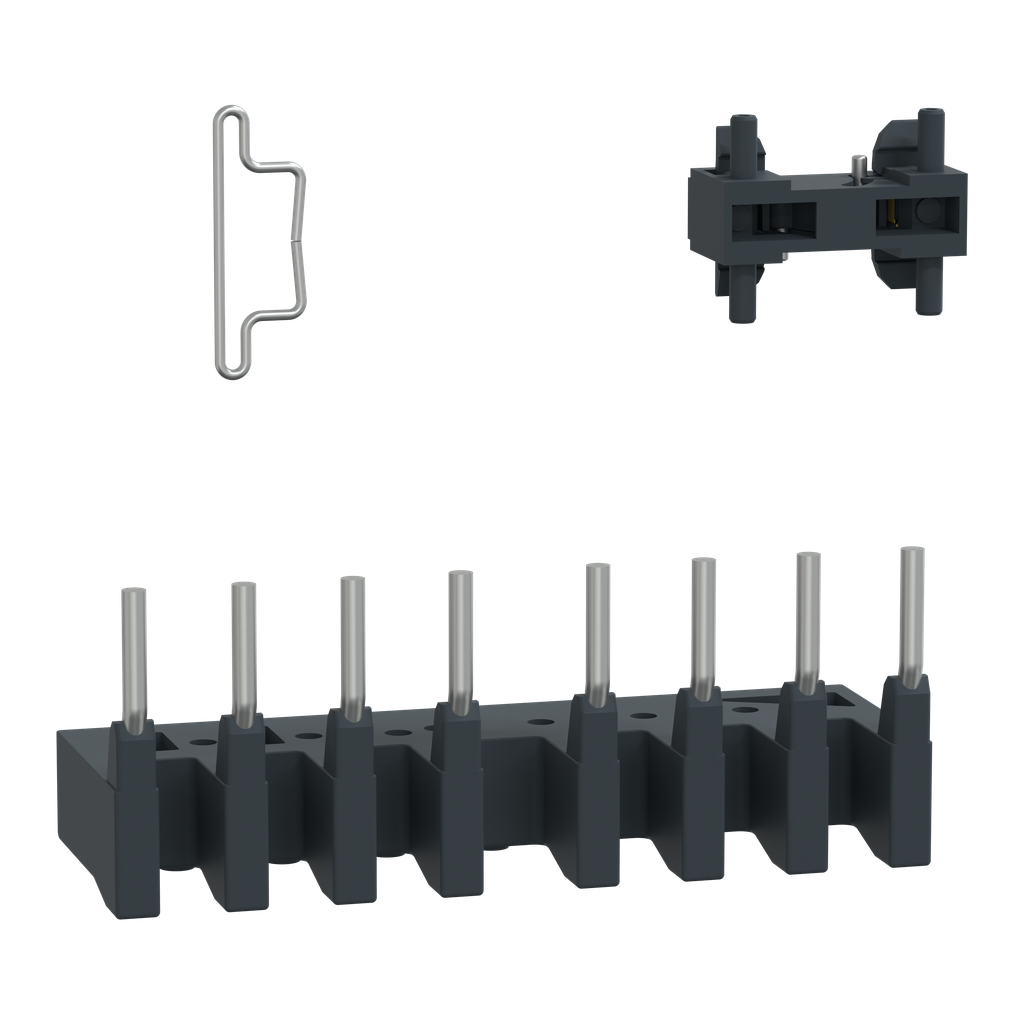

TeSys D kit for changeover contactors assembly, for 4-pole contactors LC1DT20-DT40. It contains a mechanical interlock LAD9V2 without electrical interlocking, a set of 4 parallel bars LAD9V7. For assembling 2 identical contactors horizontally mounted, with screw clamp Everlink terminals. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | France |
|---|---|
| Weight | 0.035 kg |
| Range Of Product | TeSys Deca |
| Range Compatibility |
|
| Product Or Component Type | kits for changeover contactor |
| Range |
|
| Poles Description | 4P |
| Product Compatibility |
|
| Device Short Name | LAD9 |
| Net Weight | 0.035 kg |
| Kit Composition |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Warranty | 18 months |
