LADT2 - TeSys Deca, pneumatic time delay attachment, on delay, 0.1 to 30 sec, 1 NO and 1 NC, screw clamp terminals

LADT2

TeSys Deca, pneumatic time delay attachment, on delay, 0.1 to 30 sec, 1 NO and 1 NC, screw clamp terminals

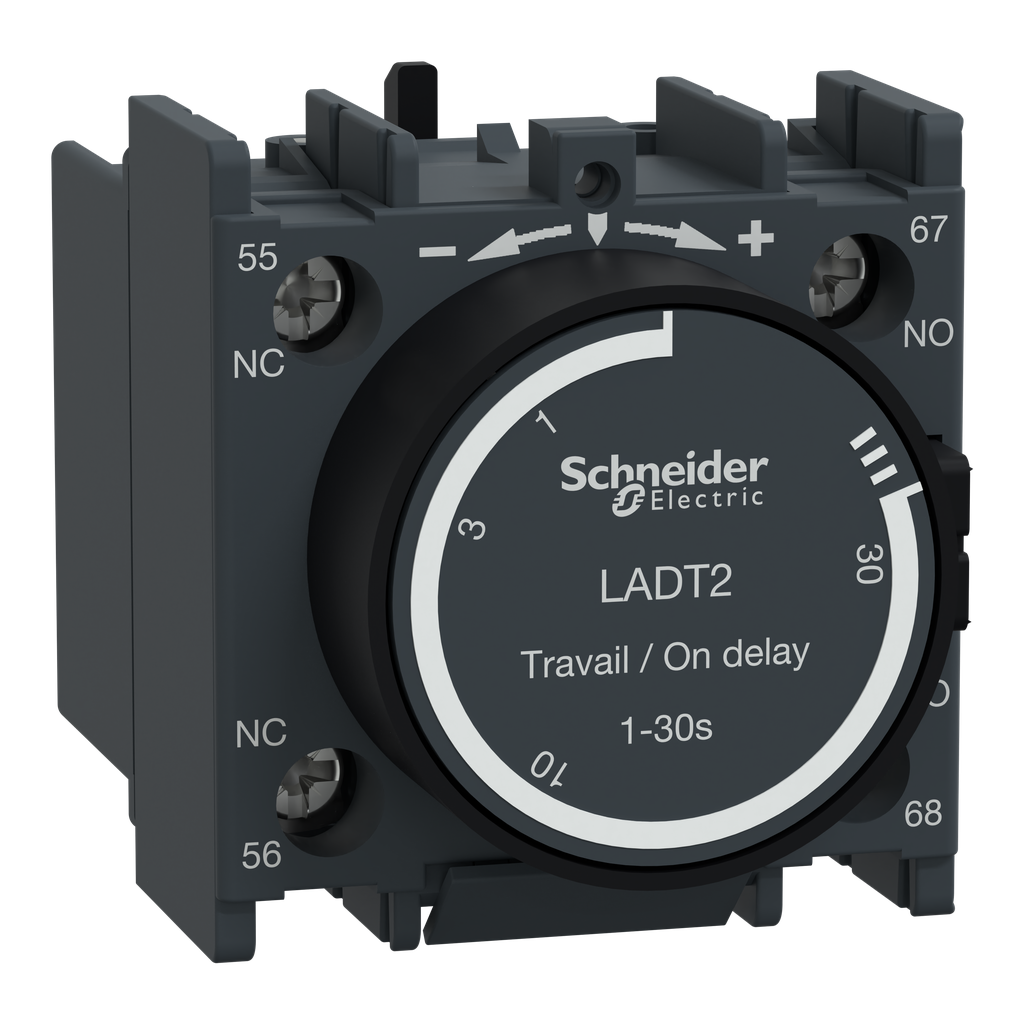

TeSys Deca time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, On-delay setting range 1-30s, connection by screw clamp terminals. The one NO and one NC contacts can be used in the control circuit. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach). TeSys Deca contactors offer quick simple setup, while maintaining a compact size. Contactors have both horsepower and Kw motor rating for international acceptance. An extennsive line of accessories makes it easy to meet the requirements of most applications. These contactors have UL, CSA, GOST, RINA, BV, CCC, DNV, GL, LROS certifications.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Ambient Air Temperature For Operation	-40-70 °C
Ip Degree Of Protection	IP20 conforming to IEC 60529
Ambient Air Temperature For Storage	-60-80 °C
Environmental Characteristic	normal environment
Protective Treatment	TH IEC 60068
Operating Altitude	9842.52 ft (3000 m)
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP110702EN_V01
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
California Proposition 65	WARNING: Cancer - www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Sustainable Packaging	Yes
Eu Rohs Directive	Compliant with Exemptions
Non-Overlap Time	1.5 ms on de-energisation no overlap between NC and NO contact 1.5 ms on energisation no overlap between NC and NO contact
Permissible Short-Time Rating	100 A 60 °C 1 s 120 A 60 °C 500 ms 140 A 60 °C 100 ms
Minimum Switching Current	5 mA
Height	48 mm
Protection Type	gG fuse 10 A
Insulation Resistance	> 10 MOhm
Irms Rated Making Capacity	140 A at <= 690 V AC conforming to IEC 60947-5-1 250 A at <= 690 V DC conforming to IEC 60947-5-1
Connections - Terminals	screw clamp terminals 1 1-2.5 mm²flexible with cable end screw clamp terminals 1 1-2.5 mm²flexible without cable end screw clamp terminals 2 1-2.5 mm²flexible with cable end screw clamp terminals 2 1-2.5 mm²flexible without cable end screw clamp terminals 1 1-2.5 mm²rigid screw clamp terminals 2 1-2.5 mm²rigid screw clamp terminals
Minimum Switching Voltage	17 V
Tightening Torque	1.7 N.m flat Ø 6 mm 1.7 N.m Philips No 2 1.7 N.m pozidriv No 2
Mechanical Durability	5 Mcycles
Color	dark grey
Width	44 mm
Depth	61 mm
Country of Origin	United States
Width	44 mm
Height	48 mm
Product Certifications	IECEE CB Scheme UL CSA CCC EAC UKCA
[Ith] Conventional Free Air Thermal Current	10 A (at 60 °C)
Timer Type	on delay
[Ue] Rated Operational Voltage	690 V AC 25...400 Hz
Standards	EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5 EN 50012 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ
Range Compatibility	TeSys Deca CAD TeSys Deca LC1D TeSys F LC1F TeSys F CR1F
Product Or Component Type	time delay auxiliary contact block
Product Name	TeSys Deca
Range	TeSys TeSys Deca
Mounting Location	front
Pole Contact Composition	1 NO + 1 NC
[Ui] Rated Insulation Voltage	690 V IEC 60947-5-1 600 V UL 60947-5-1 600 V CSA C22.2 No 60947-5-1
[Ie] Rated Operational Current	6 A at 120 V AC-15 1.04 A at 690 V AC-15 0.55 A at 125 V DC-13 0.1 A at 600 V DC-13
Time Delay Range	1...30 s
Auxiliary Contacts Operation	time delay
