LAD9V5

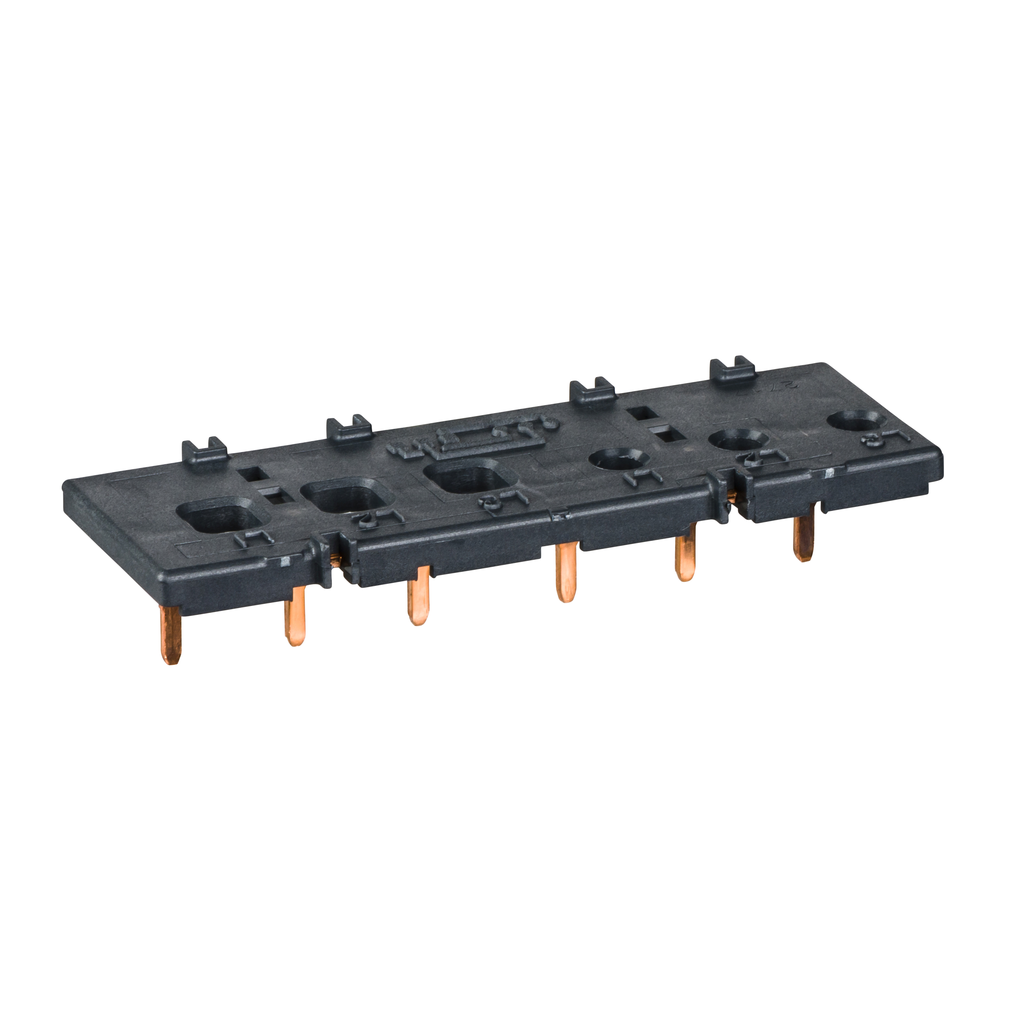

Set of power connections, parallel busbar, for 3P reversing contactors assembly, LC1D09-D38 screw clamp terminals
TeSys D power connector for 3-pole contactors LC1D09-D38 (with screw clamp terminals). For assembling contactors in reversing motor starters. It provides the parallel connection of 2 contactors on line side. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Connections - Terminals | screw clamp terminals |
|---|---|
| Mounting Location | upstream |
| Country of Origin | United States |
| Range Of Product | TeSys Deca |
| Range Compatibility |
|
| Product Or Component Type | set of connections |
| Range |
|
| Poles Description | 3P |
| Electrical Circuit Type | reversing contactor |
| Product Compatibility |
|
| Device Short Name | LAD9 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Warranty | 18 months |
