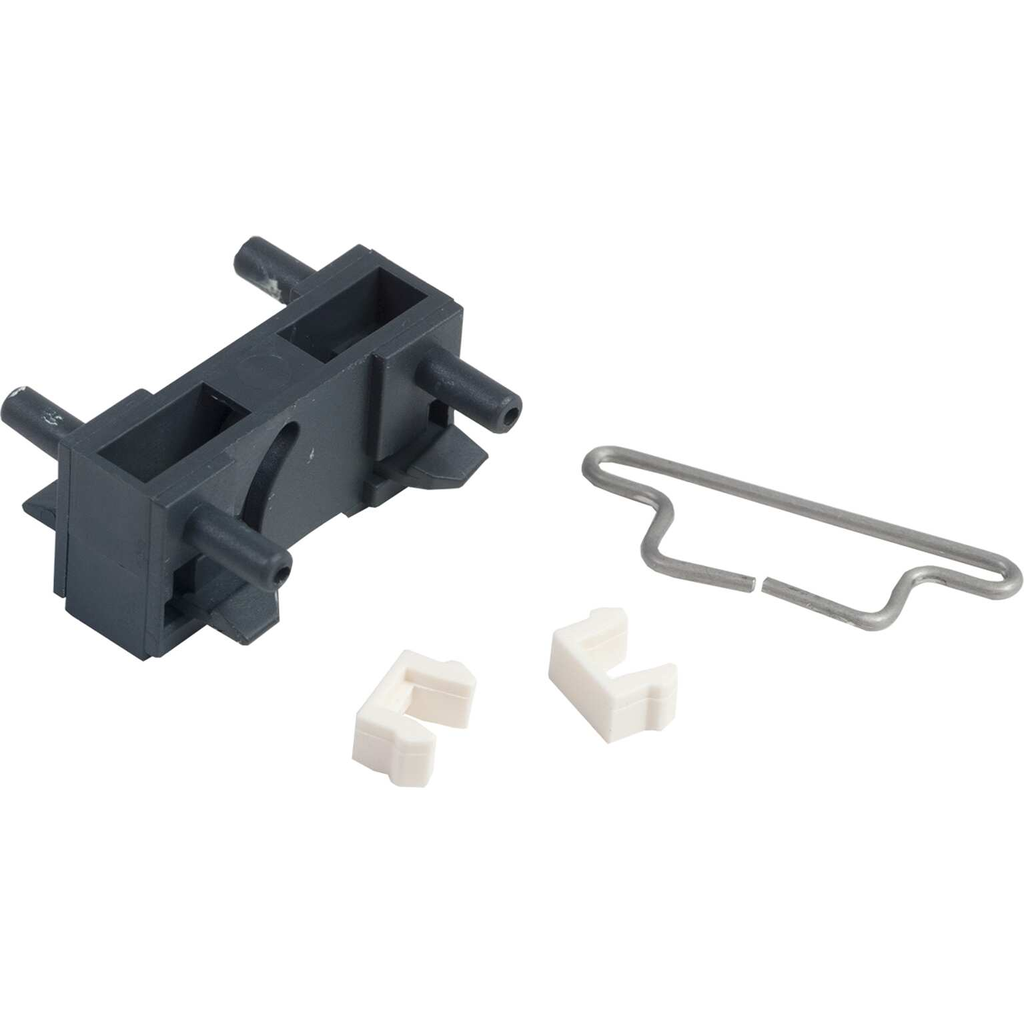

LAD9V2
Mechanical interlock, TeSys Deca contactors LC1D09-D38, LC1DT20-DT40
TeSys D mechanical interlock, for contactors LC1D09-D38 and LC1DT20-DT40. To be used for reversing and changeover assemblings. Without electrical interlocking. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Interlocking Type | mechanical |
|---|---|
| Range Of Product | TeSys Deca |
| Range Compatibility | TeSys (TeSys D) contactor |
| Accessory / Separate Part Category | interlocking accessory |
| Product Or Component Type | mechanical interlock |
| Range | TeSys |
| Poles Description |
|
| Electrical Circuit Type |
|
| Product Compatibility |
|
| Device Short Name | LAD9 |
| Warranty | 18 months |
| Net Weight | 0.04 kg |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111213EN_V1 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
