LAD9R3S
Kit for assembling 3P changeover contactors, LC1D40A-D80A with screw clamp terminals, without electrical interlock

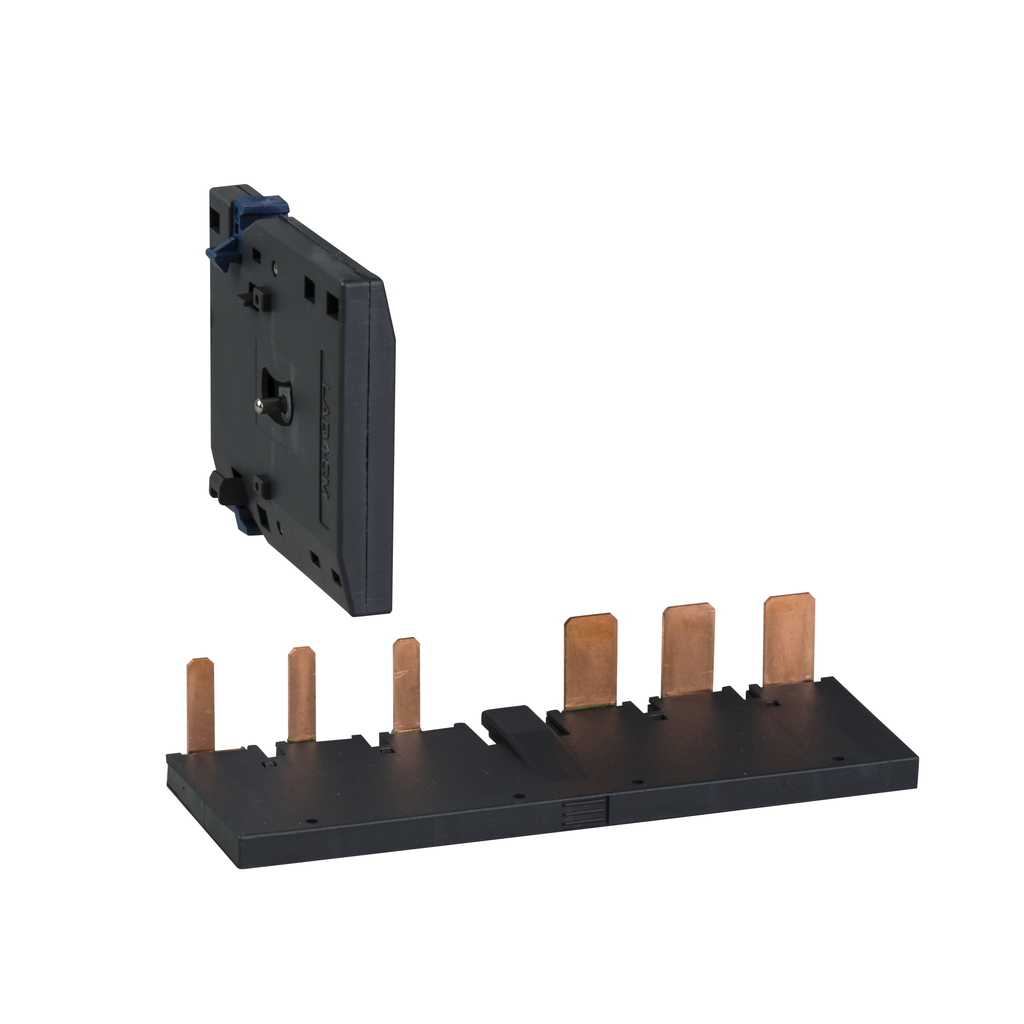

TeSys D kit for changeover contactors assembly, for 3-pole contactors LC1D40A-D80A. For assembling 2 identical contactors horizontally mounted, connection by screw clamp Everlink terminals. It contains a mechanical interlock LAD4CM, a parallel power busbar LA9D65A6. It conforms to RoHS/REACh regulation.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Weight | 0.105 kg |
| Range Of Product | TeSys Deca |
| Range Compatibility |
|
| Product Or Component Type | kits for changeover contactor |
| Range |
|
| Poles Description | 3P |
| Product Compatibility |
|
| Device Short Name | LAD9 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1505009EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI1505009EN |
| Eu Rohs Directive | Compliant |
| Net Weight | 0.105 kg |
| Kit Composition |
|
| Warranty | 18 months |
Documents
- LC1D.., LC2D.. and T02DN.. 3-pole contactors and reversing contactors 40 to 80 A AC-3 - Instruction Sheet - 172718901A50-19 (pdf)
- T02DN13 and T02DN23 Size 2 NEMA Rated Contactors Installation Instructions - HRB33723 (pdf)
- Industrial Automation and Control Product Lines Brochure - 998-20256927_2019_Line_Card_GM (pdf)
- TeSys Refresh Informational Guide - Brochure - 998-20803955_GMA-US (pdf)
- Square D Model 6 Intelligent Motor Control Centers Brochure - 8998BR0001 (pdf)
- Spec Sheet
- TeSys - Catalog 2024 - Innovative and connected solutions for motor starters - MKTED210011EN (pdf)
