LAD9R3
Kit for assembling 3P reversing contactors, LC1D40A-D80A with screw clamp terminals, without electrical interlock

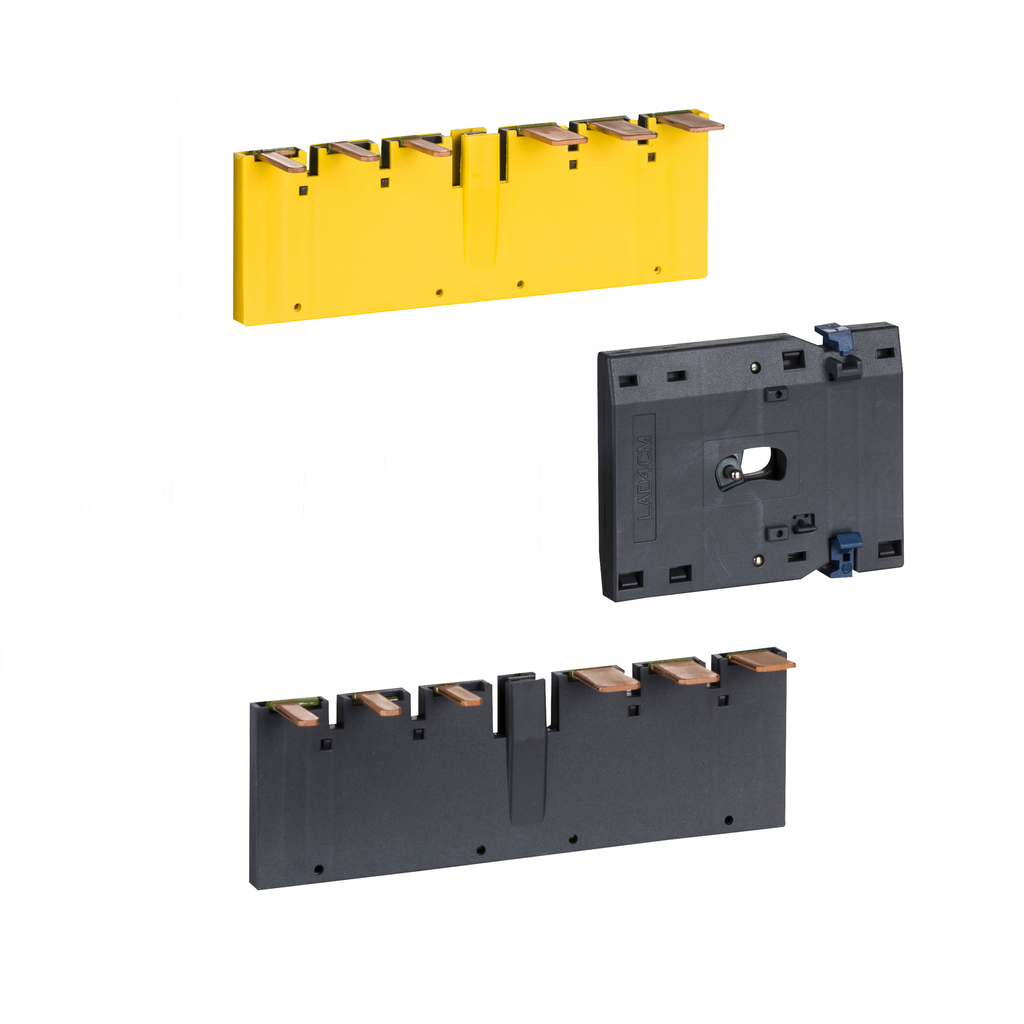

TeSys D kit for reversing contactors assembly, for 3-pole contactors LC1D40A-D80A. For assembling 2 identical contactors horizontally mounted, connection by EverLink BTR screw terminals. It contains a mechanical interlock LAD4CM, a set of power connections LA9D65A69. It conforms to RoHS/REACh regulation.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Net Weight | 0.17 kg |
|---|---|
| Kit Composition |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1505009EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI1505009EN |
| Eu Rohs Directive | Compliant |
| Country of Origin | Czechia |
| Weight | 0.17 kg |
| Range Of Product | TeSys Deca |
| Range Compatibility |
|
| Product Or Component Type | kits for reversing contactor |
| Range |
|
| Poles Description | 3P |
| Product Compatibility |
|
| Device Short Name | LAD9 |
| Warranty | 18 months |
