LAD9R1
Kit for assembling 3P reversing contactors, LC1D09-D38 with screw clamp terminals, without electrical interlock

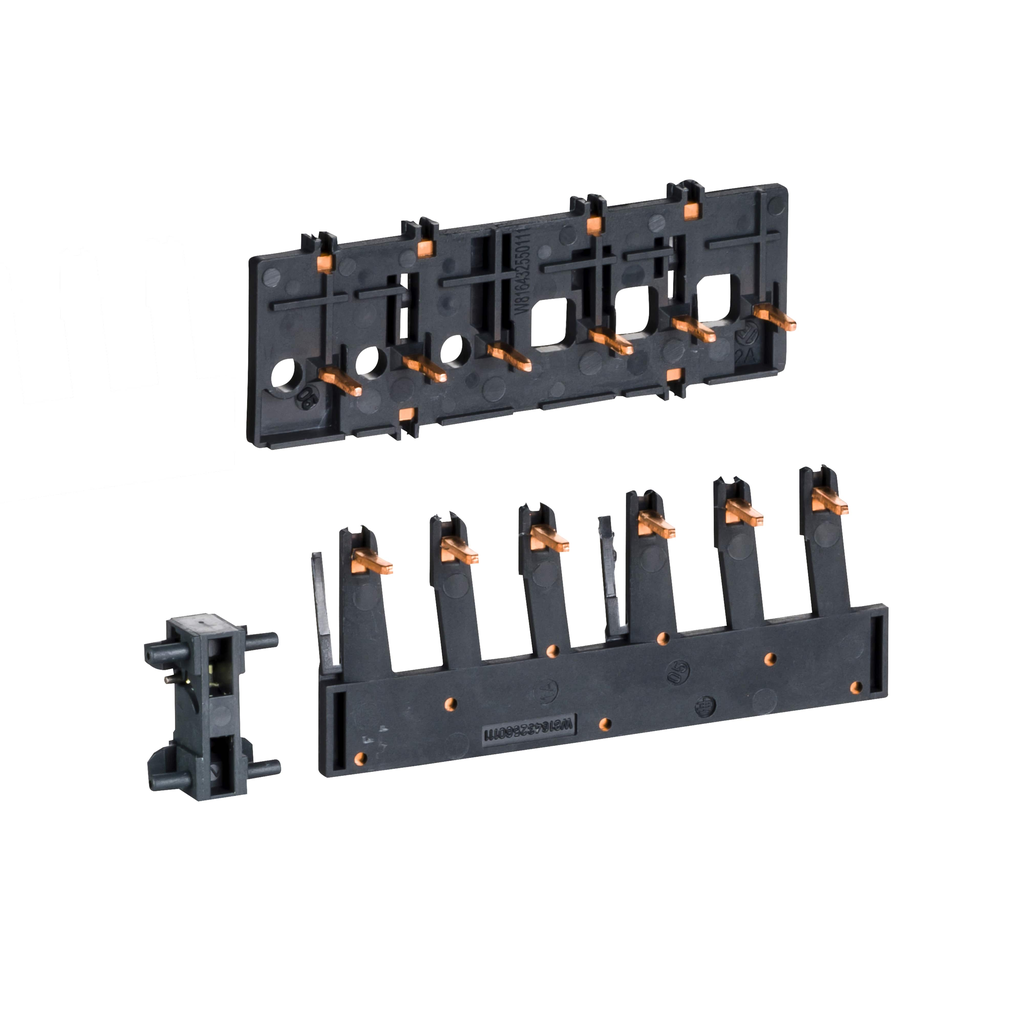

TeSys D kit for reversing contactors assembly, for 3-pole contactors LC1D09-D38. For assembling 2 identical contactors horizontally mounted, connection by screw clamp terminals. It contains a mechanical interlock LAD9V2 (without electrical interlocking), a set of 3 parallel bars LAD9V5, a set of 3 reverser bars LAD9V6. It conforms to RoHS/REACh regulation.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | France |
|---|---|
| Weight | 0.045 kg |
| Range Of Product | TeSys Deca |
| Range Compatibility |
|
| Product Or Component Type | kits for reversing contactor |
| Range |
|
| Poles Description | 3P |
| Product Compatibility |
|
| Device Short Name | LAD9 |
| Net Weight | 0.045 kg |
| Kit Composition |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Warranty | 18 months |
Documents
- LAD9R1. Accessories for starters and equipment, open version - Instruction Sheet - 1643363_01A55_06 (pdf)
- Industrial Automation and Control Product Lines Brochure - 998-20256927_2019_Line_Card_GM (pdf)
- TeSys Refresh Informational Guide - Brochure - 998-20803955_GMA-US (pdf)
- Square D Model 6 Intelligent Motor Control Centers Brochure - 8998BR0001 (pdf)
- Spec Sheet
- IEC Contactors and Starters: Section 17 - Digest 179 (2024) - IEC-Contactors-Digest-Catalog-0100CT2401-SEC-17 (pdf)
- NEMA and Definite Purpose Contactors and Starters: Section 16 - Digest 179 (2024) - NEMA-Contactors-Digest-Catalog-0100CT2401-SEC-16 (pdf)
- Digest Catalog 18: Contactors and Starters-IEC - 0100CT1901_SEC-18 (pdf)
- Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters - 0100CT1901_SEC-16 (pdf)
- Industrial Control Panel Solutions Catalog - 8800CT1801 (pdf)
- TeSys - Catalog 2024 - Innovative and connected solutions for motor starters - MKTED210011EN (pdf)
