LAD96570

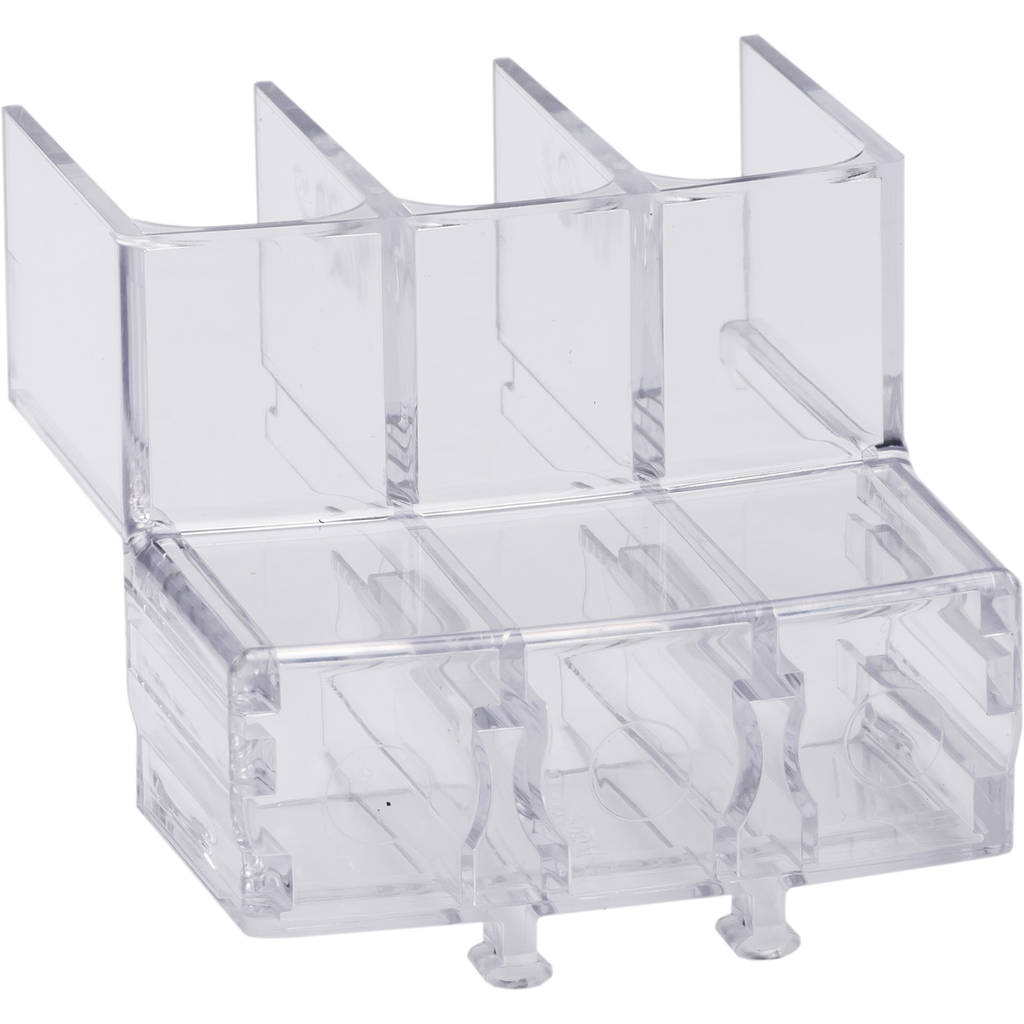

Independent mounting IP 20 cover for lug type terminals
TeSys D protective cover, for IP20 protection of lug type terminals. For 3-pole contactors LC1D40A6-D80A6 and thermal overload relays LRD3136-D3806. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Czechia |
|---|---|
| Weight | 0.021 kg |
| Range Of Product | TeSys Deca |
| Accessory / Separate Part Category | installation accessory |
| Product Or Component Type | protective cover for connector |
| Range | TeSys |
| Poles Description | 3P |
| Product Compatibility |
|
| Device Short Name | LAD9 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP060901 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI060901 |
| Eu Rohs Directive | Compliant |
| Net Weight | 0.021 kg |
| Warranty | 18 months |
Documents
- LC1D..A6 3-pole contactor with ring-type connection 40 to 80 A AC-3 - Instruction sheet - 1727249_01A55-11 (pdf)
- LRD3..6, LRD3..L6, LR3D3..6 - 3 pole thermal overload relays with lugs 18.5 to 30 kW - Instruction sheet - AAV37590-08 (pdf)
- Industrial Automation and Control Product Lines Brochure - 998-20256927_2019_Line_Card_GM (pdf)
- TeSys Refresh Informational Guide - Brochure - 998-20803955_GMA-US (pdf)
- Square D Model 6 Intelligent Motor Control Centers Brochure - 8998BR0001 (pdf)
- Spec Sheet
- IEC Contactors and Starters: Section 17 - Digest 179 (2024) - IEC-Contactors-Digest-Catalog-0100CT2401-SEC-17 (pdf)
- Digest Catalog 18: Contactors and Starters-IEC - 0100CT1901_SEC-18 (pdf)
- TeSys - Catalog 2024 - Innovative and connected solutions for motor starters - MKTED210011EN (pdf)
- TeSys Catalogue - 2022 - Chapter B11 - Overload relays TeSys LRK, Deca, Giga, RM1, LT3 - B11+-+Overload+relays_EN+(web) (pdf)
