LAD96566

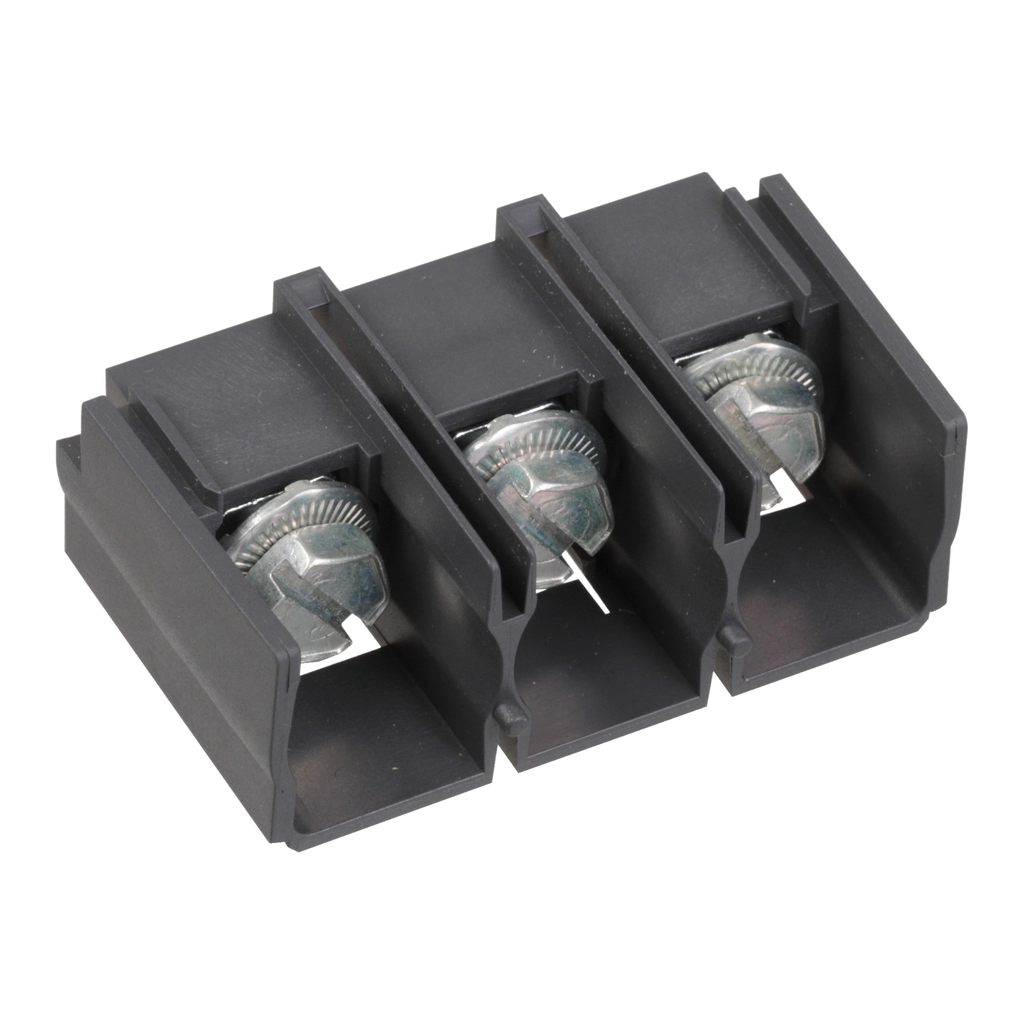

Terminal block, TeSys Deca, for contactors LC1D40A-D80A 3P, ring-lugs screw terminals
Specifications
| Country of Origin | France |
|---|---|
| Weight | 0.01 kg |
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | terminal block |
| Range | TeSys |
| Poles Description | 3P |
| Product Compatibility | LRD3136...3656 |
| Device Short Name | LAD9 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1505009EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1505009EN |
| Eu Rohs Directive | Compliant |
| Connections - Terminals | lugs-ring terminals |
| Net Weight | 0.01 kg |
| Warranty | 18 months |
