LAD91217
Kit for star delta starter assembling, for 3 x contactors LC1D09-D38 star identical, with timer block

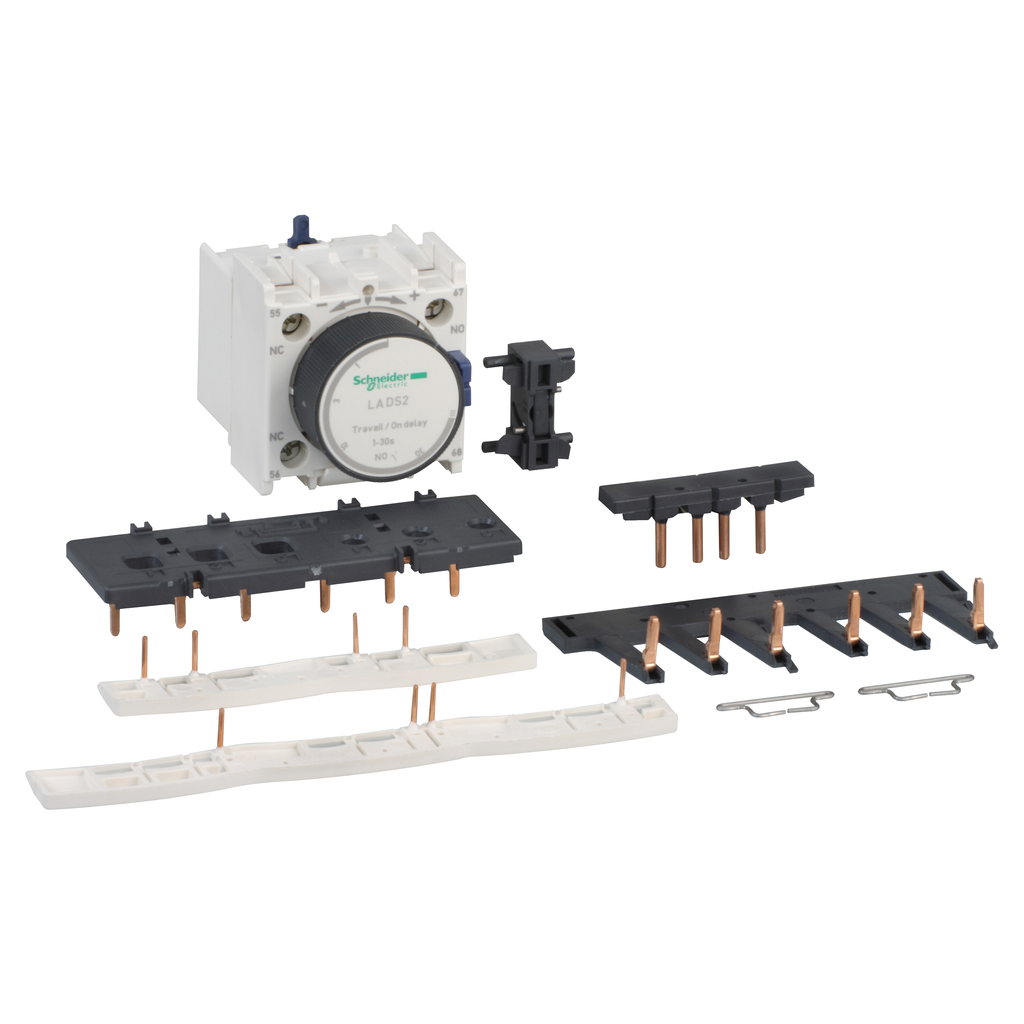

TeSys D mounting kit, for star-delta starter assembly with 3-pole contactors LC1D09-D38 (all with the same physical size). For motor applications up to 25kW@400V in delta connection. It contains power circuit connections, screws and clamps for fixing 3 contactors to a plate, a time delay contact block LADS2 (1-30s). Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | TeSys Deca |
|---|---|
| Range Compatibility | TeSys (TeSys Deca) |
| Product Or Component Type | stater assembly |
| Product Name | TeSys Deca |
| Range | TeSys |
| Poles Description | 3P |
| Product Compatibility | LC1D09...D38 |
| Device Short Name | LAD9 |
| Warranty | 18 months |
| Net Weight | 0.18 kg |
| Kit Composition |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111213EN_V1 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
