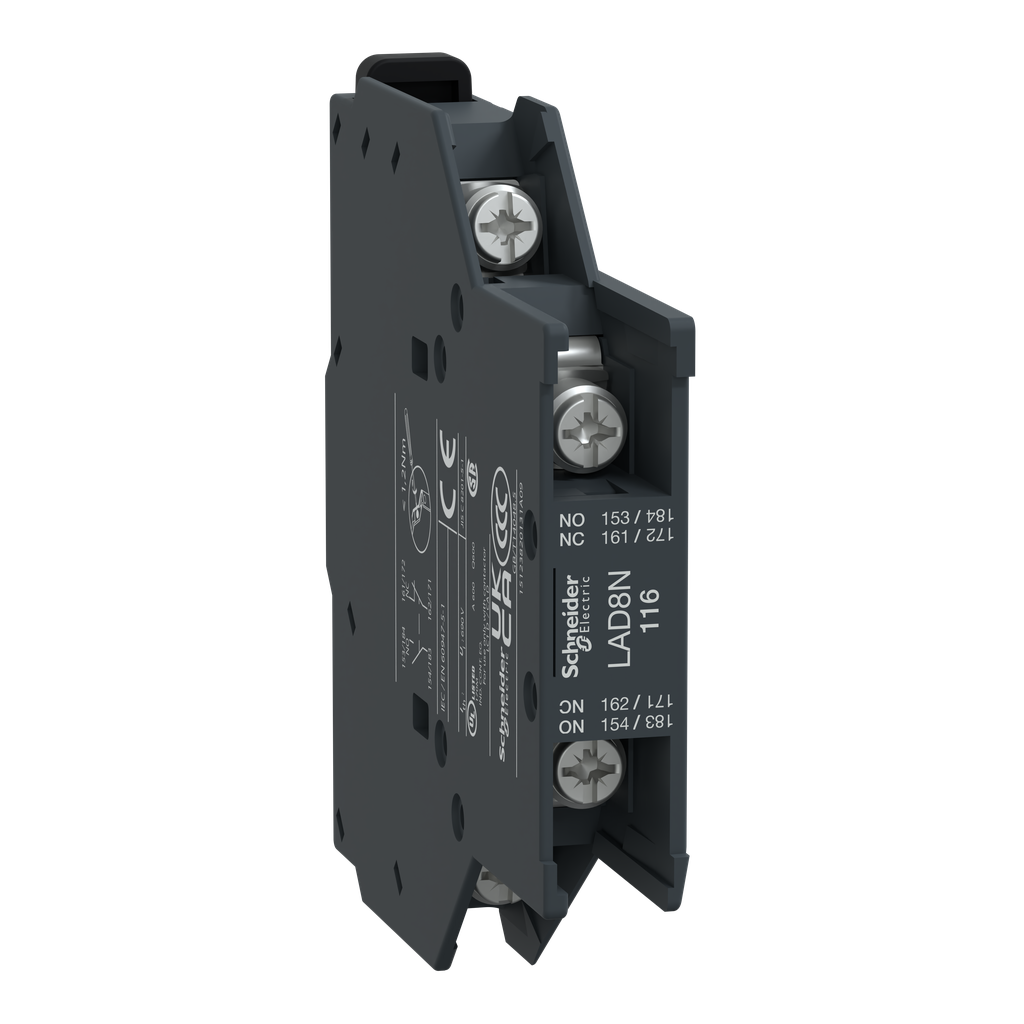

LAD8N116
Auxiliary contact block, TeSys Deca, 1NO + 1NC, side mounting, lugs-ring terminals
TeSys Deca instantaneous auxiliary contact block, for LC.D contactors and CAD control relays with AC coils only. It provides 1NO+1NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by ring lugs screw terminals. Clip-on side mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation | -5-60 °C |
|---|---|
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Ambient Air Temperature For Storage | -60-80 °C |
| Environmental Characteristic | normal environment |
| Protective Treatment | TH IEC 60068 |
| Operating Altitude | 9842.52 ft (3000 m) |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110807EN_V3 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Non-Overlap Time |
|
| Permissible Short-Time Rating |
|
| Minimum Switching Current | 5 mA |
| Height | 76 mm |
| Protection Type | gG fuse 10 A |
| Insulation Resistance | > 10 MOhm |
| Irms Rated Making Capacity |
|
| Connections - Terminals | lugs-ring terminals 8 mm) |
| Minimum Switching Voltage | 17 V |
| Tightening Torque |
|
| Mechanical Durability | 30 Mcycles |
| Width | 12.5 mm |
| Depth | 76 mm |
| Country of Origin | Indonesia |
| Width | 12.5 mm |
| Height | 76 mm |
| Product Certifications |
|
| [Ith] Conventional Free Air Thermal Current | 10 A (at 60 °C) |
| [Ue] Rated Operational Voltage | 690 V AC 25...400 Hz |
| Standards |
|
| Range Compatibility |
|
| Product Or Component Type | auxiliary contact block |
| Product Name | TeSys Deca |
| Range | TeSys |
| Mounting Location | side |
| Pole Contact Composition | 1 NO + 1 NC |
| [Ui] Rated Insulation Voltage |
|
| [Ie] Rated Operational Current |
|
| Auxiliary Contacts Operation | instantaneous |
