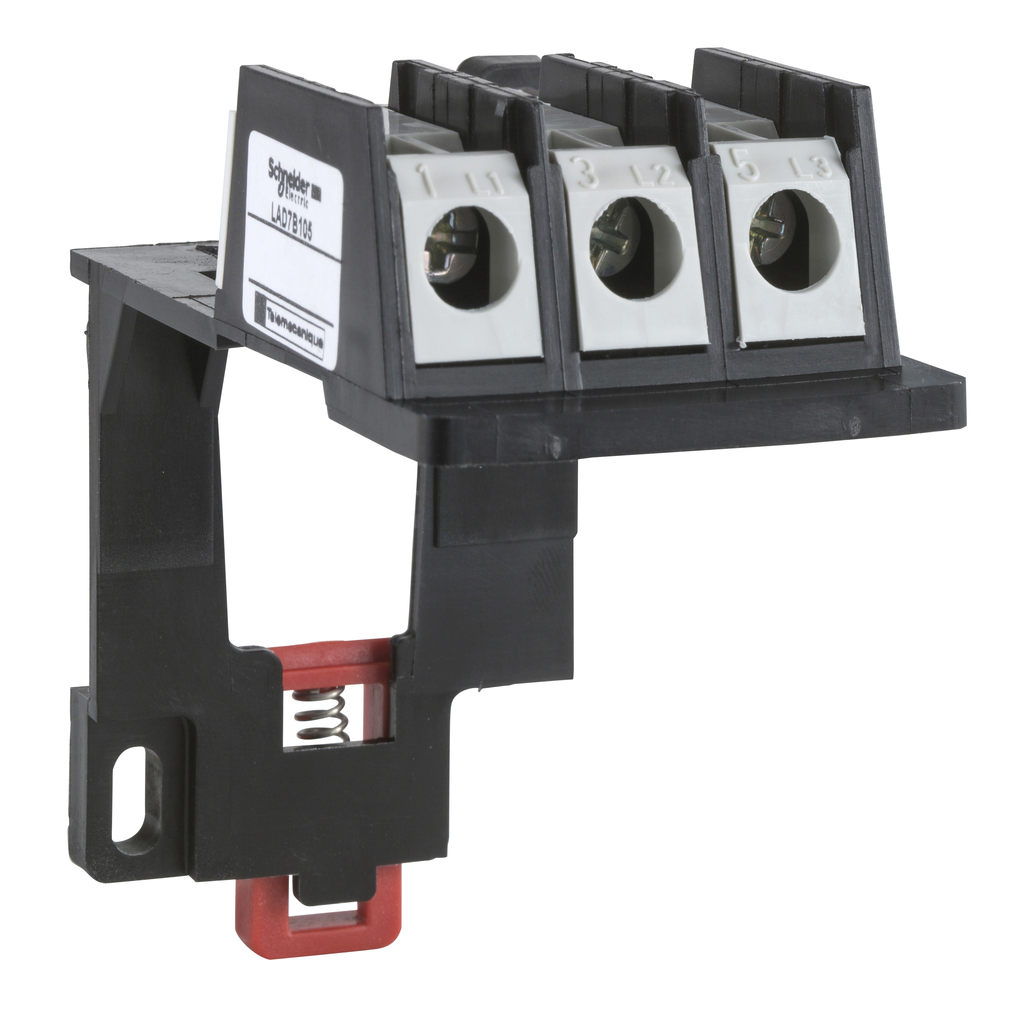

LAD7B105
Adapter terminal block,TeSys Deca,for separate mounting of LRD15**/LR3D15**
TeSys LRD terminal block for mounting of thermal overload relays LRD15, LR3D15. To be used for a separate mounting between overload relay and contactor. It provides top connections with screw clamp terminals, clip-on fixing on 35 mm DIN-rail or fixing by screws. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Width | 45 mm |
| Height | 82 mm |
| Weight | 0.1 kg |
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | terminal block |
| Range | TeSys |
| Quantity Per Set | set of 1 |
| Product Compatibility |
|
| Device Short Name | LAD |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Connections - Terminals | screw terminals |
| Height | 82 mm |
| Net Weight | 0.1 kg |
| Width | 45 mm |
| Depth | 100 mm |
