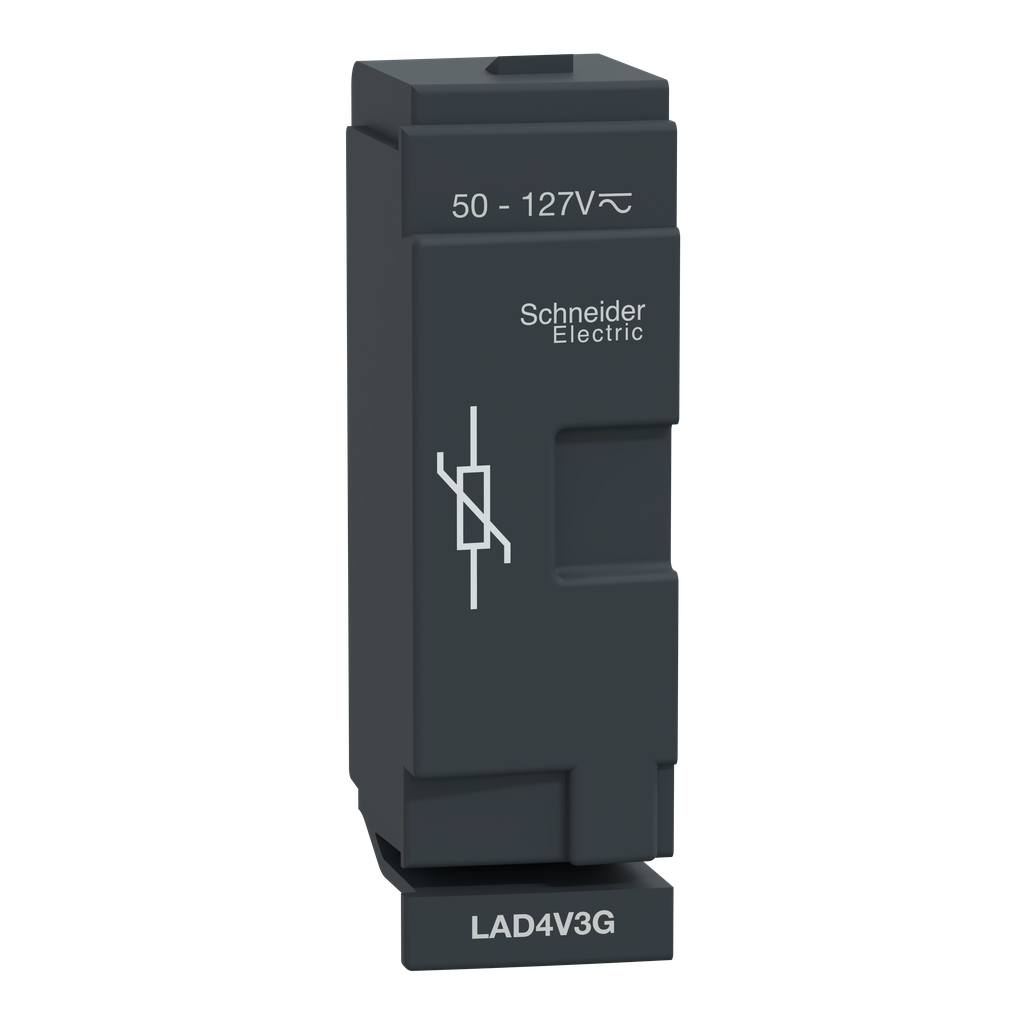

LAD4V3G
TeSys Deca - suppressor module - varistor - 50...127 V AC/DC
TeSys D suppressor module, for LC1D40A-D80A, LC1DT60A-DT80A contactors. To be used with 50-127V AC or DC control circuit voltage, it provides a varistor protection limiting the transient voltage to 2 Uc max. Clip-on front mounting, overall size of the contactor is unchanged. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -25-55 °C |
| Standards |
|
| Ip Degree Of Protection | IP2XIEC 60529 |
| Ambient Air Temperature For Storage | -40-80 °C |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111253EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| [Uc] Control Circuit Voltage |
|
| Net Weight | 0.02 kg |
| Mounting Location | side |
| Maximum Peak Voltage | 2 Uc |
| Mounting Mode | by clips |
| Color | dark grey |
| Suppressor Technology | varistor (peak limiting) |
| Country of Origin | Czechia |
| Weight | 0.02 kg |
| Product Or Component Type | suppressor module |
| Range |
|
| Product Compatibility |
|
| Device Short Name | LAD4 |
