LAD322

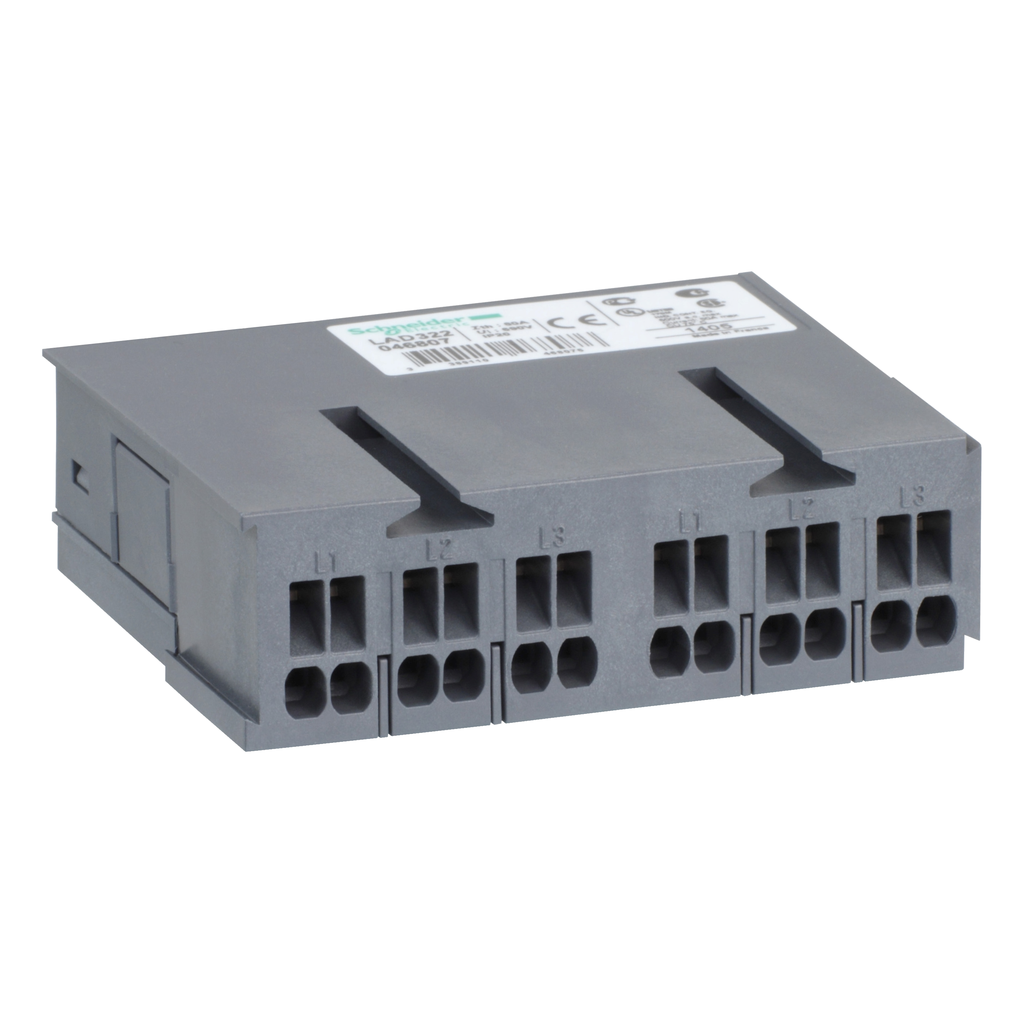

Power splitter box,TeSys Deca Fram 2,63A,for 2 starters composed by GV2ME**3/LS1D323 and LC1D**3 (spring terminal)
TeSys D power splitter block, for groups of motor starters made with motor circuit breakers GV2 or fuse carriers LS1D32. It permits the quick wiring of the upstream power circuit for 2 starters positionned side by side. To be used for GV2 and LS1D32 models with spring terminal connections. Upstream connection can be completed with an upstream terminal block LAD3B1 (to be ordered separately) for cables connection until 16mm². Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | France |
|---|---|
| Weight | 0.12 kg |
| Range Of Product | TeSys fuse-disconnector |
| Product Or Component Type | power splitter box |
| Poles Description | 3P |
| Product Compatibility | LAD32. |
| Device Short Name | LAD |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Net Weight | 0.12 kg |
| Number Of Outgoers | 2 |
| [Ie] Rated Operational Current | 63 A |
| Warranty | 18 months |
Documents
- LAD-311 Motor starter components - TeSys Quickfit Power - 1675442_01A55 (pdf)
- APP2... Motor starter components - Quickfit Power Technology - Instruction Sheet - 1605945_01A55 (pdf)
- GV2MEoo3, GV2RToo3 - Motor circuit breakers with connex terminals - Instruction sheet - 1645883_01A50-09 (pdf)
- LS1D30/32 Disconnector fuse carriers - Instruction Sheet - 1675331_01A50-06 (pdf)
- LAD-341 Power connection module - TeSys Quickfit Power - 1645669_01A55 (pdf)
- LAD-31 Motor starter components - TeSys Quickfit Power - 1643411_01A55 (pdf)
- Spec Sheet
- Digest Catalog 18: Contactors and Starters-IEC - 0100CT1901_SEC-18 (pdf)
- TeSys - Catalog 2024 - Innovative and connected solutions for motor starters - MKTED210011EN (pdf)
