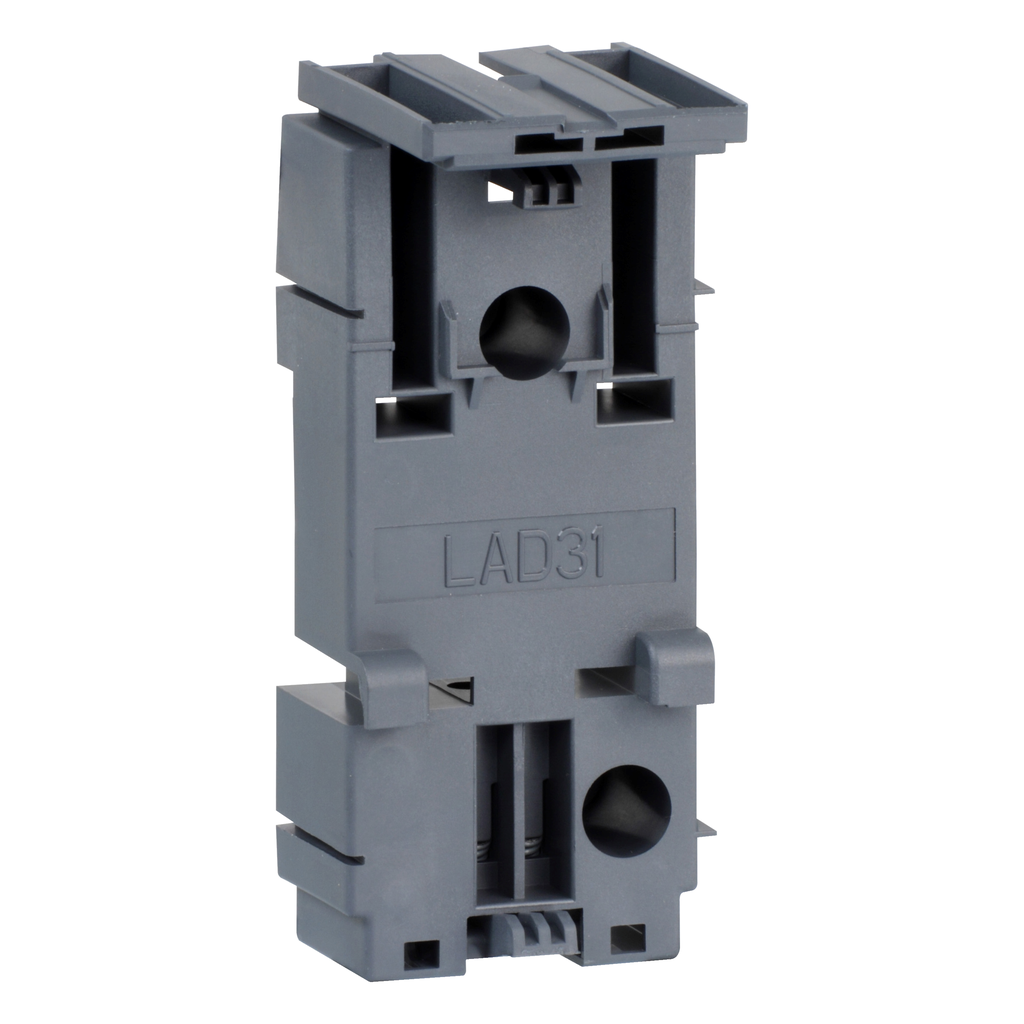

LAD31
Mounting plate for Tesys Deca GV2ME
TeSys D mounting plate, for motor circuit breakers GV2 or fuse carriers LS1D32. It permits to have a motor starter assembly with contactors LC1D09-D38 with front faces aligned devices. The plate is to be fixed on 35mm DIN-rail by clip-on. Other accessories (terminals blocks, busbars, combination blocks) for motor starter assembly are available (to be ordered separately). Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Warranty | 18 months |
| Country of Origin | France |
| Weight | 0.042 kg |
| Range Of Product |
|
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | plate |
| Range | TeSys |
| Product Compatibility |
|
| Device Short Name | LAD |
| Net Weight | 0.042 kg |
