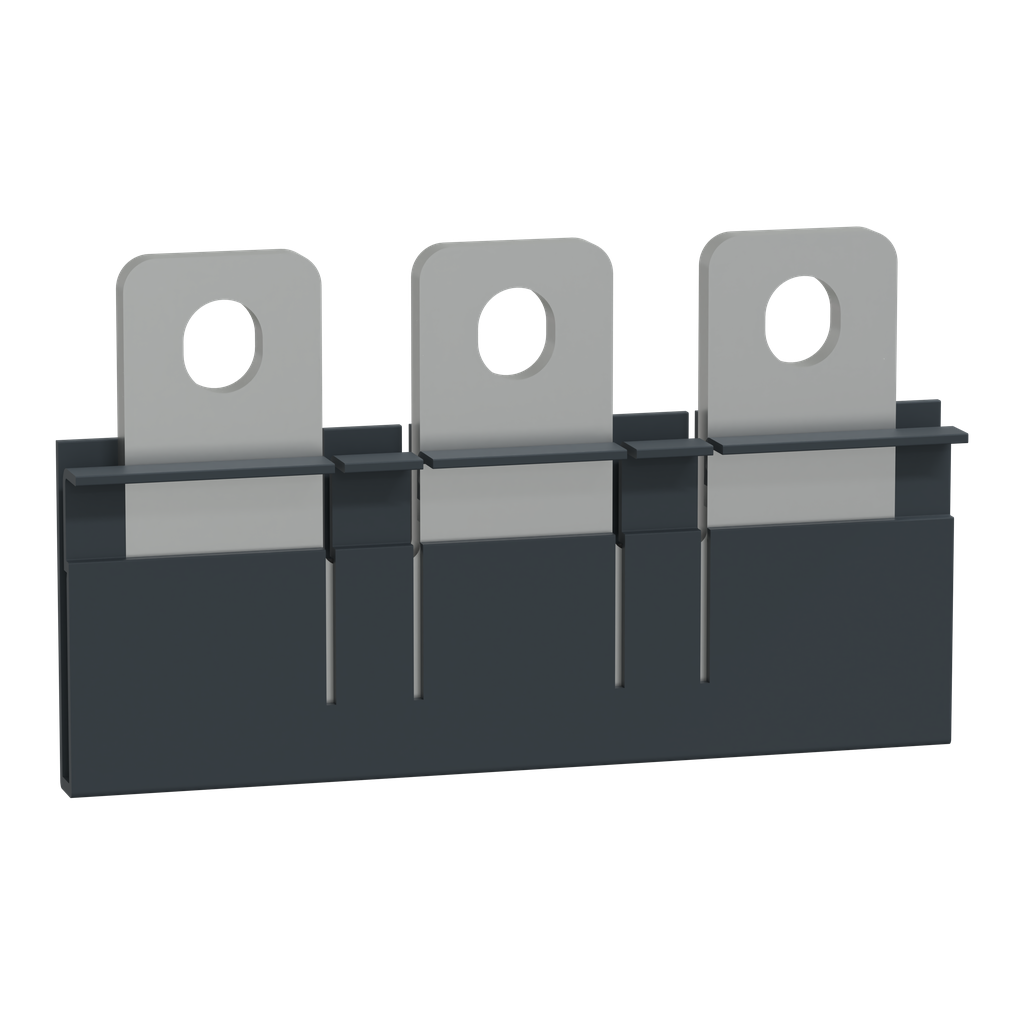

LA9GSW601 – Star connection bar for TeSys Giga contactor LC1G265-500
LA9GSW601
Star connection bar for TeSys Giga contactor LC1G265-500
Specifications
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP2105013
Sustainable Offer Status Green Premium product
California Proposition 65 WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation X
Circularity Profile ENVEOLI2105013
Eu Rohs Directive Compliant with Exemptions
Standards EN/IEC 60947-4-1
Ambient Air Temperature For Storage -60-80 °C
Operating Altitude
  • 9842.52 ft (3000 m) without derating
  • 5000 m with derating factor
Country of Origin China
Width 138 mm
Height 81 mm
Weight 363 g
Accessory / Separate Part Category connection accessory
Product Or Component Type set of connections
Range TeSys
Quantity Per Set set of 1
Electrical Circuit Type star
Device Short Name LA9G
Height 81 mm
Range Compatibility TeSys Giga
Net Weight 363 g
Poles Description 3P
Width 138 mm
Depth 15 mm
Product Compatibility
  • LC1G265...500
  • LC1G300...475C
