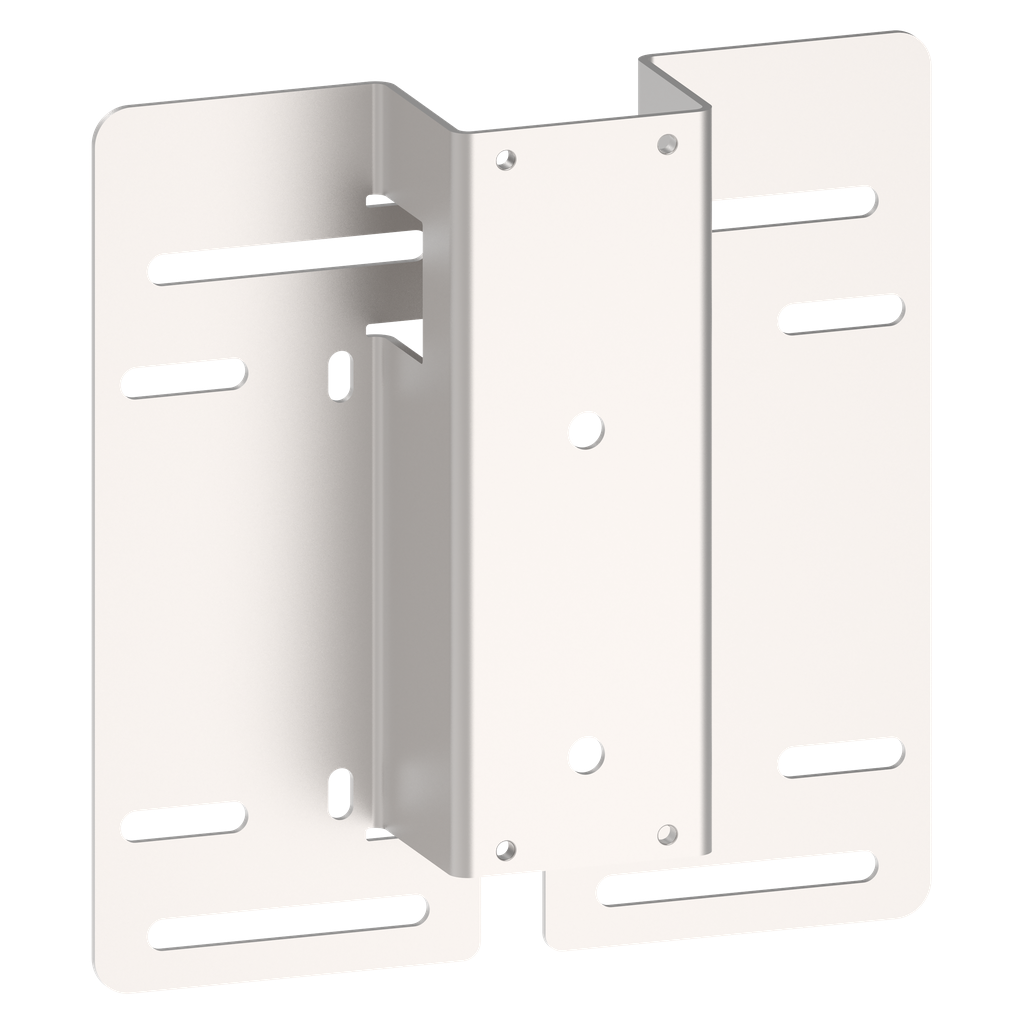

LA9GRFB2
Retrofit Base, for TeSys Giga contactor LC1G265-500
These accessories are retrofit bases for TeSys Giga 265-500 contactor. Designed to integrate TeSys G 265-500 contactors into existing installation with TeSys F contactors. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2105013 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2105013 |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Height | 240 mm |
| Net Weight | 1.27 kg |
| Quantity Per Set | set of 1 |
| Width | 233 mm |
| Depth | 58 mm |
| Country of Origin | France |
| Width | 233 mm |
| Height | 240 mm |
| Weight | 1.27 kg |
| Range Of Product | TeSys G |
| Product Or Component Type | plate |
| Range | TeSys |
| Product Compatibility |
|
| Device Application | retrofit installation |
| Device Short Name | LA9G |
| Ambient Air Temperature For Operation | -25-60 °C |
| Pollution Degree | 3 IEC 60947-1 |
| Ambient Air Temperature For Storage | -60-80 °C |
| Operating Altitude |
|
