LA9GQW601

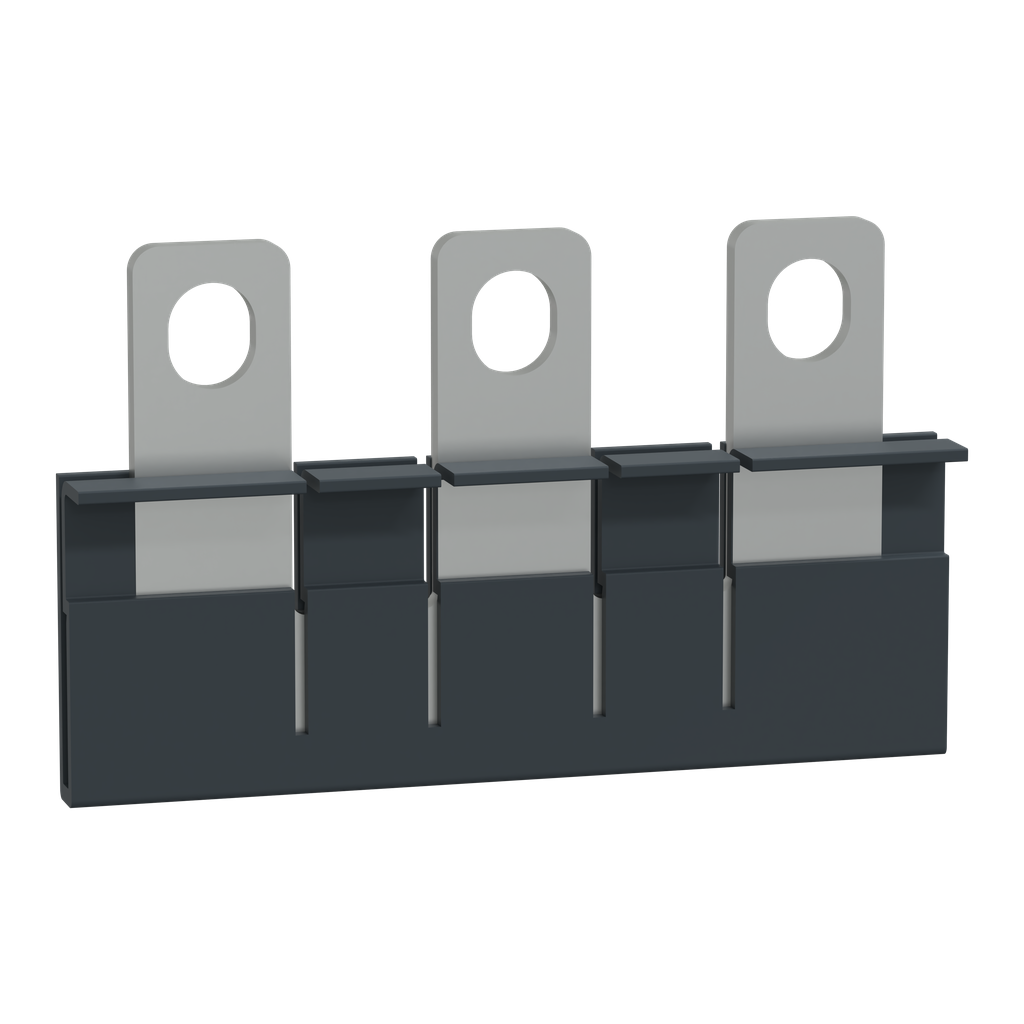

Star connection bar for TeSys Giga contactor LC1G115-225
Specifications
| Standards | EN/IEC 60947-4-1 |
|---|---|
| Ambient Air Temperature For Storage | -60-80 °C |
| Operating Altitude |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2105013 |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2105013 |
| Eu Rohs Directive | Compliant with Exemptions |
| Country of Origin | China |
| Width | 104 mm |
| Height | 63 mm |
| Weight | 113 g |
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | set of connections |
| Range | TeSys |
| Quantity Per Set | set of 1 |
| Electrical Circuit Type | star |
| Device Short Name | LA9G |
| Height | 63 mm |
| Range Compatibility | TeSys Giga |
| Net Weight | 113 g |
| Poles Description | 3P |
| Width | 104 mm |
| Depth | 13 mm |
| Product Compatibility |
|
