LA9GQQ330 - Star-Delta connection bar, for TeSys Giga contactor LC1G115-225 (Line, Delta & Star)

LA9GQQ330

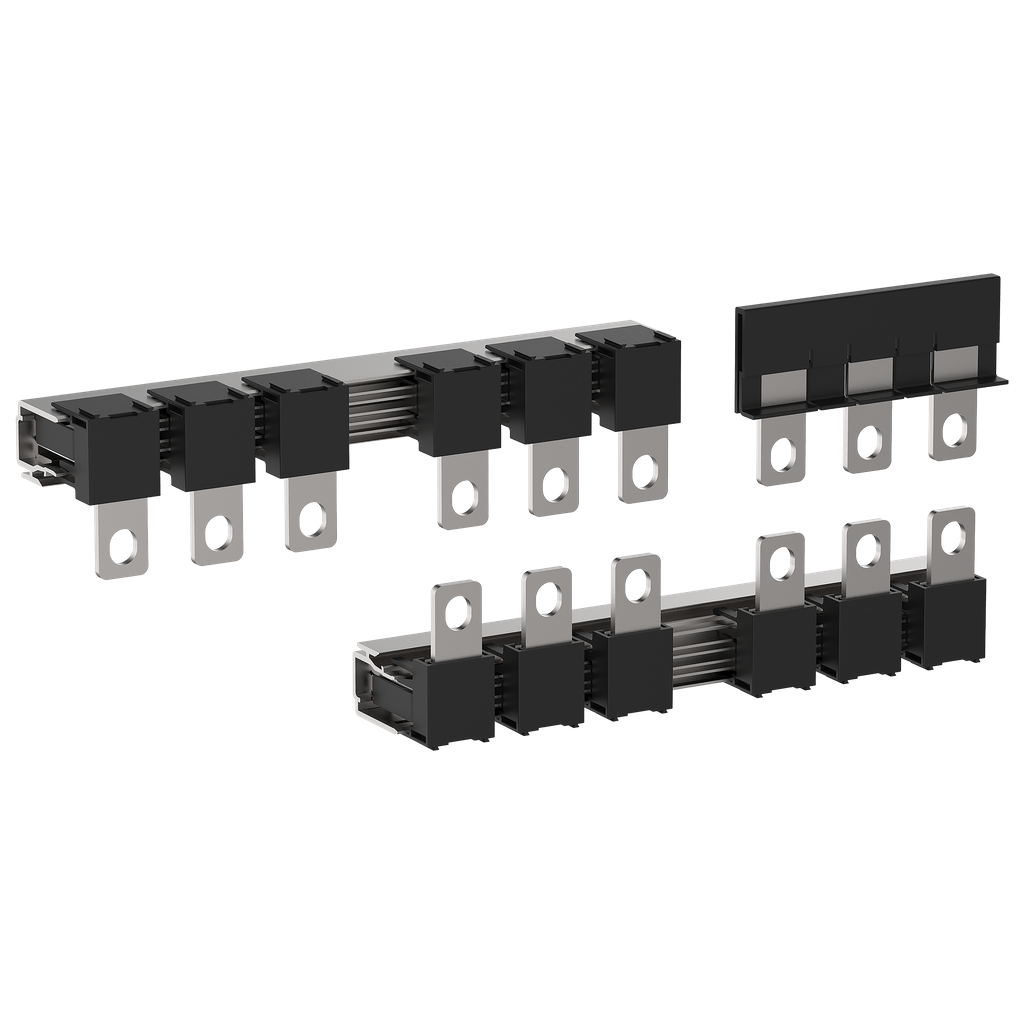

Star-Delta connection bar, for TeSys Giga contactor LC1G115-225 (Line, Delta & Star)

These accessories are star delta connection Kit for TeSys Giga contactor. To be used by Line-Delta-Star bars for TeSys Giga 115-225 contactor. They are sold by set of 1 part. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Country of Origin	China
Width	350 mm
Height	50 mm
Weight	1.0 kg
Accessory / Separate Part Category	connection accessory
Product Or Component Type	set of connections
Range	TeSys
Quantity Per Set	set of 1
Electrical Circuit Type	star-delta
Device Short Name	LA9G
Standards	EN/IEC 60947-4-1
Ambient Air Temperature For Storage	-60-80 °C
Operating Altitude	9842.52 ft (3000 m) without derating 5000 m with derating factor
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2105013
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	X
Circularity Profile	ENVEOLI2105013
Eu Rohs Directive	Compliant with Exemptions
Halogen Content Performance	Halogen free plastic parts product
Height	50 mm
Range Compatibility	TeSys Giga
Net Weight	1.0 kg
Poles Description	3P
Width	350 mm
Depth	240 mm
Product Compatibility	LC1G115...225

Star-Delta connection bar, for TeSys Giga contactor LC1G115-225 (Line, Delta & Star)
