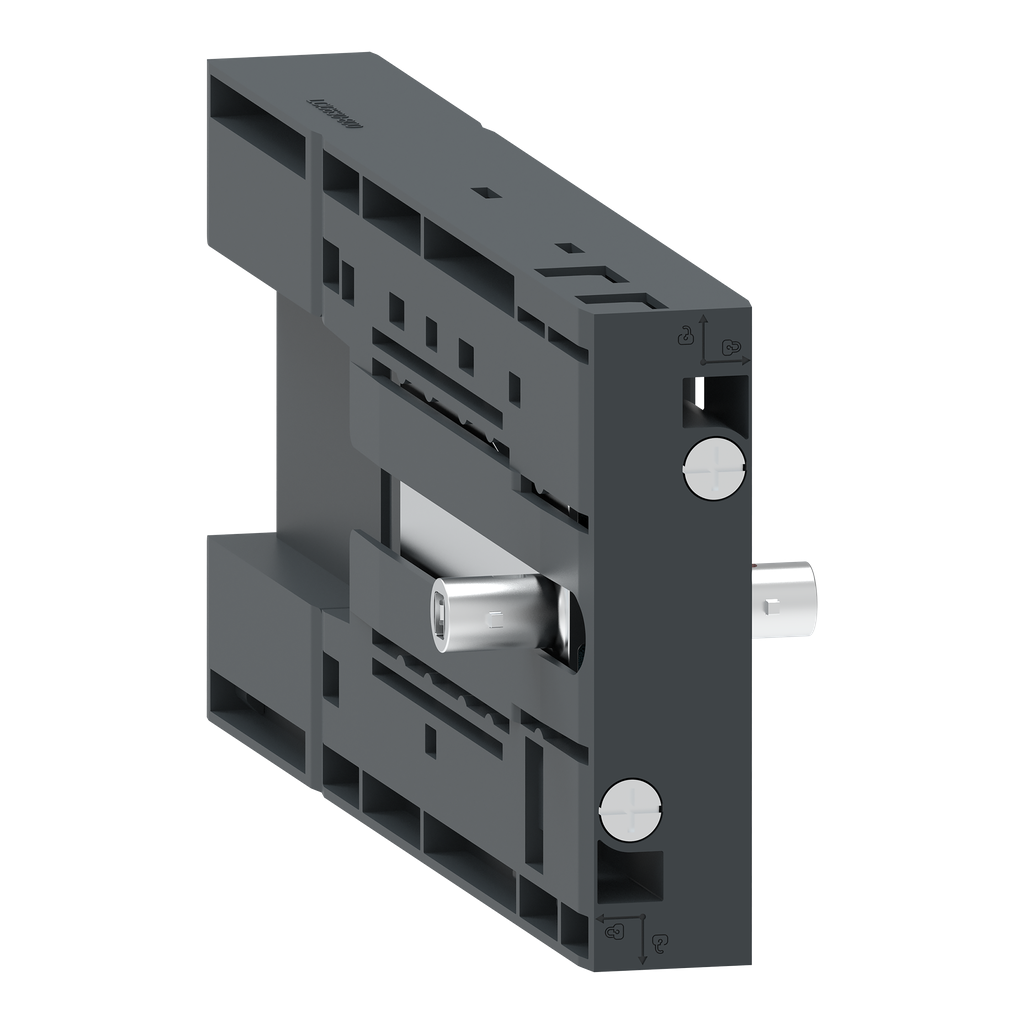

LA9G973
Contactor accessory, mechanical interlock, TeSys Giga, LC1G630-800 with LC1G630-800
These accessories are mechanical interlock for TeSys Giga 630-800 and TeSys Giga 630-800 contactors. To be used for reversing and changeover assemblings. Without electrical interlocking. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -25-60 °C |
| Standards |
|
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Pollution Degree | 3 IEC 60947-1 |
| Ambient Air Temperature For Storage | -60-80 °C |
| Operating Altitude |
|
| Height | 50 mm |
| Net Weight | 0.25 kg |
| Width | 80 mm |
| Depth | 120 mm |
| Country of Origin | France |
| Width | 80 mm |
| Height | 50 mm |
| Weight | 0.25 kg |
| Interlocking Type | mechanical |
| Accessory / Separate Part Category | interlocking accessory |
| Product Or Component Type | mechanical interlock |
| Range | TeSys |
| Poles Description | 3P |
| Electrical Circuit Type |
|
| Range Compatibility | TeSys Giga |
| Product Compatibility |
|
| Device Short Name | LA9G |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2105013 |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2105013 |
| Eu Rohs Directive | Compliant with Exemptions |
Documents
- Mechanical Interlock and Coupling Bars Instruction Sheet - TeSys-Giga-Interlock-Coupling-Bars-Instruction-Sheet-NNZ4813501-04 (pdf)
- Spec Sheet
- TeSys Catalogue - 2022 - Chapter B9 - Giga high power contactors - B9+-+Giga+High+power+contactors_EN+(web) (pdf)
- IEC Contactors and Starters: Section 17 - Digest 179 (2024) - IEC-Contactors-Digest-Catalog-0100CT2401-SEC-17 (pdf)
- TeSys - Catalog 2024 - Innovative and connected solutions for motor starters - MKTED210011EN (pdf)
