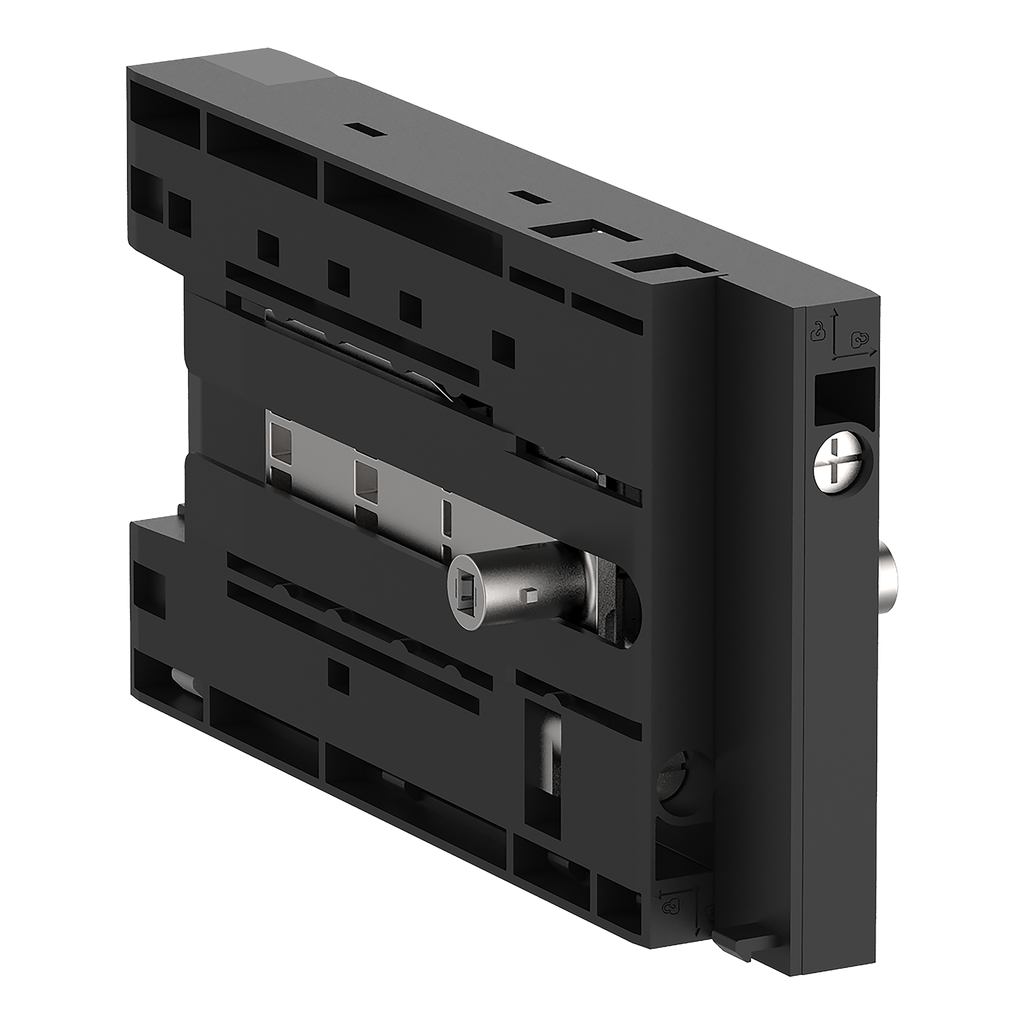

LA9G971
Mechanical interlock, for TeSys Giga contactor LC1G265-500 and LC1G115-225, IP20
These accessories are mechanical interlock for TeSys Giga 265-500 and TeSys Giga 115-225 contactors. To be used for reversing and changeover assemblings. Without electrical interlocking. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2105013 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2105013 |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Ambient Air Temperature For Operation | -25-60 °C |
| Standards |
|
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Pollution Degree | 3 IEC 60947-1 |
| Ambient Air Temperature For Storage | -60-80 °C |
| Operating Altitude |
|
| Country of Origin | France |
| Width | 80 mm |
| Height | 50 mm |
| Weight | 0.15 kg |
| Interlocking Type | mechanical |
| Accessory / Separate Part Category | interlocking accessory |
| Product Or Component Type | mechanical interlock |
| Range | TeSys |
| Poles Description | 3P |
| Electrical Circuit Type | star-delta |
| Range Compatibility | TeSys Giga |
| Product Compatibility |
|
| Device Short Name | LA9G |
| Height | 50 mm |
| Net Weight | 0.15 kg |
| Width | 80 mm |
| Depth | 140 mm |
