LA9G82

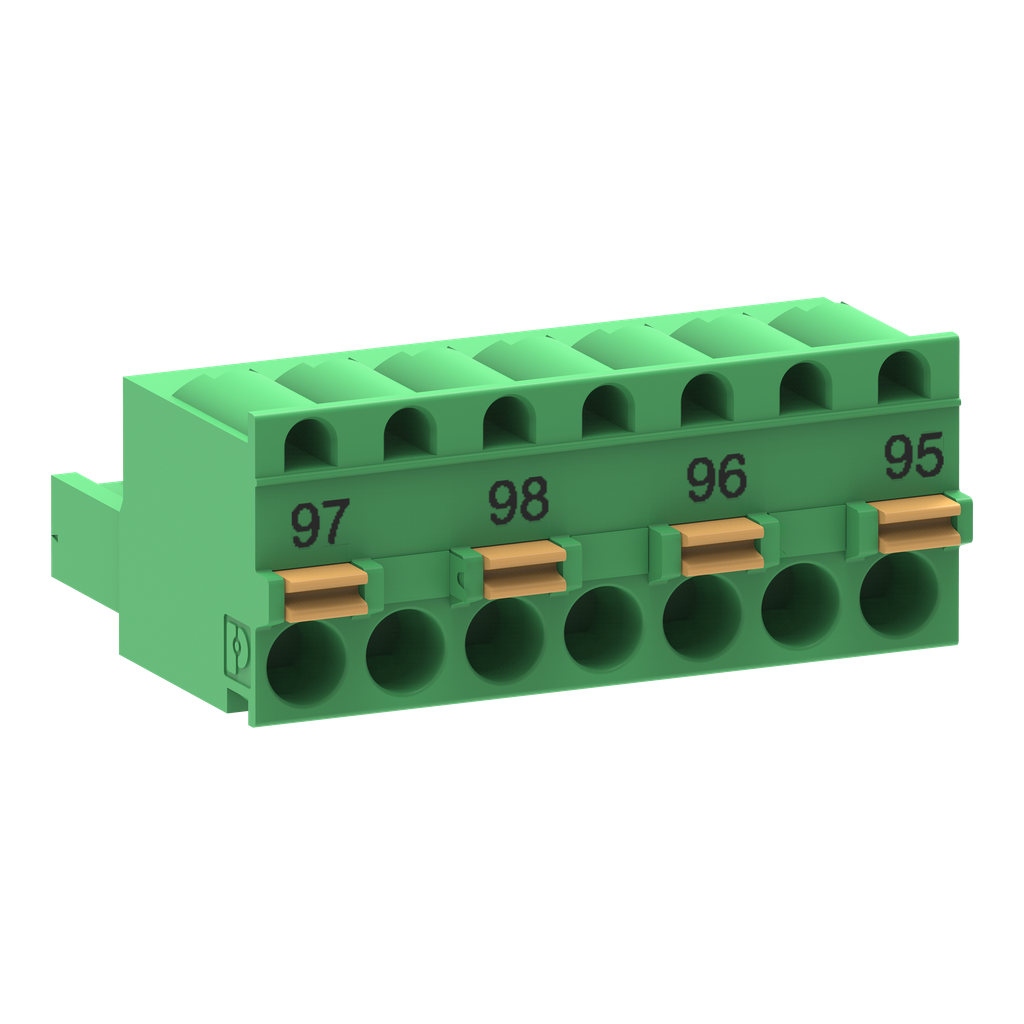

Terminal block,TeSys Giga electronic overload relay,for LR9G,push-in terminals
These accessories are terminal block for TeSys Giga electronic overload relay LR9G. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | China |
|---|---|
| Width | 26 mm |
| Height | 15 mm |
| Weight | 0.05 kg |
| Product Or Component Type | connector |
| Range | TeSys |
| Quantity Per Set | set of 1 |
| Range Compatibility | TeSys G |
| Device Application | control circuit |
| Device Short Name | LA9G |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Height | 15 mm |
| Dielectric Test Voltage | 3000 kV AC, 1 minute |
| Connections - Terminals |
|
| Net Weight | 0.05 kg |
| Maximum Horse Power Rating |
|
| [Ie] Rated Operational Current | 10 A |
| Width | 26 mm |
| Overvoltage Category | III |
| Depth | 36 mm |
| Pin Number | 4 |
| Ambient Air Temperature For Operation | -25-60 °C |
| Standards |
|
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Pollution Degree | 3 IEC 60947-1 |
| Ambient Air Temperature For Storage | -60-80 °C |
