LA9G81

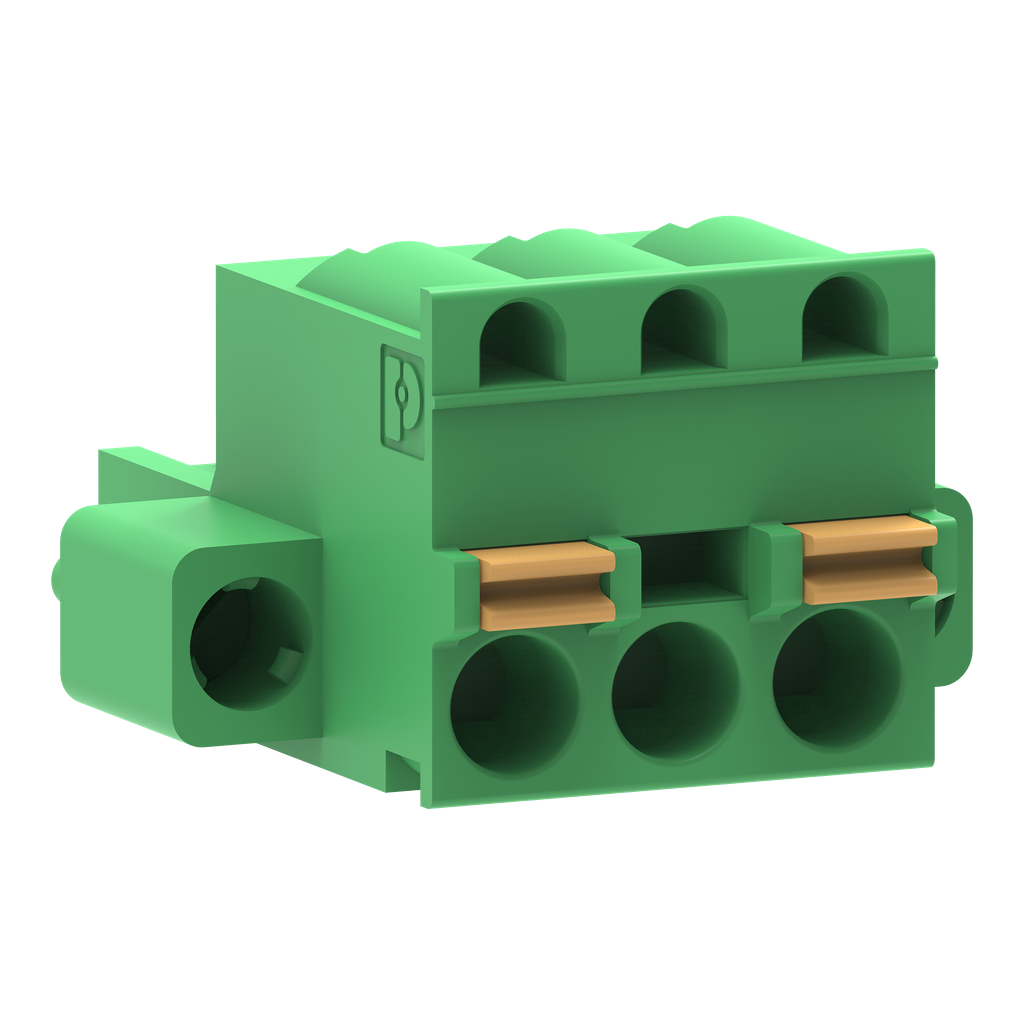

Terminal block,TeSys Giga contactor,for LC1G,control module,push-in terminals
These accessories are push-in terminal block for TeSys Giga control module. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| [Ue] Rated Operational Voltage | <= 600 V 50/60 Hz |
|---|---|
| Height | 15 mm |
| Net Weight | 0.05 kg |
| Connections - Terminals |
|
| Rated Short-Duration Power Frequency Withstand Voltage | 3 kV 1 minute |
| [Ie] Rated Operational Current | 10 A |
| Quantity Per Set | set of 1 |
| Width | 26 mm |
| Depth | 26 mm |
| Pin Number | 3 |
| Country of Origin | China |
| Width | 26 mm |
| Height | 15 mm |
| Weight | 0.05 kg |
| Product Or Component Type | connector |
| Range | TeSys |
| Device Short Name | LA9G |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2105013 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2105013 |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Ambient Air Temperature For Operation | -25-60 °C |
| Standards |
|
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Pollution Degree | 3 IEC 60947-1 |
| Ambient Air Temperature For Storage | -60-80 °C |
| Operating Altitude |
|
| Overvoltage Category | III |
