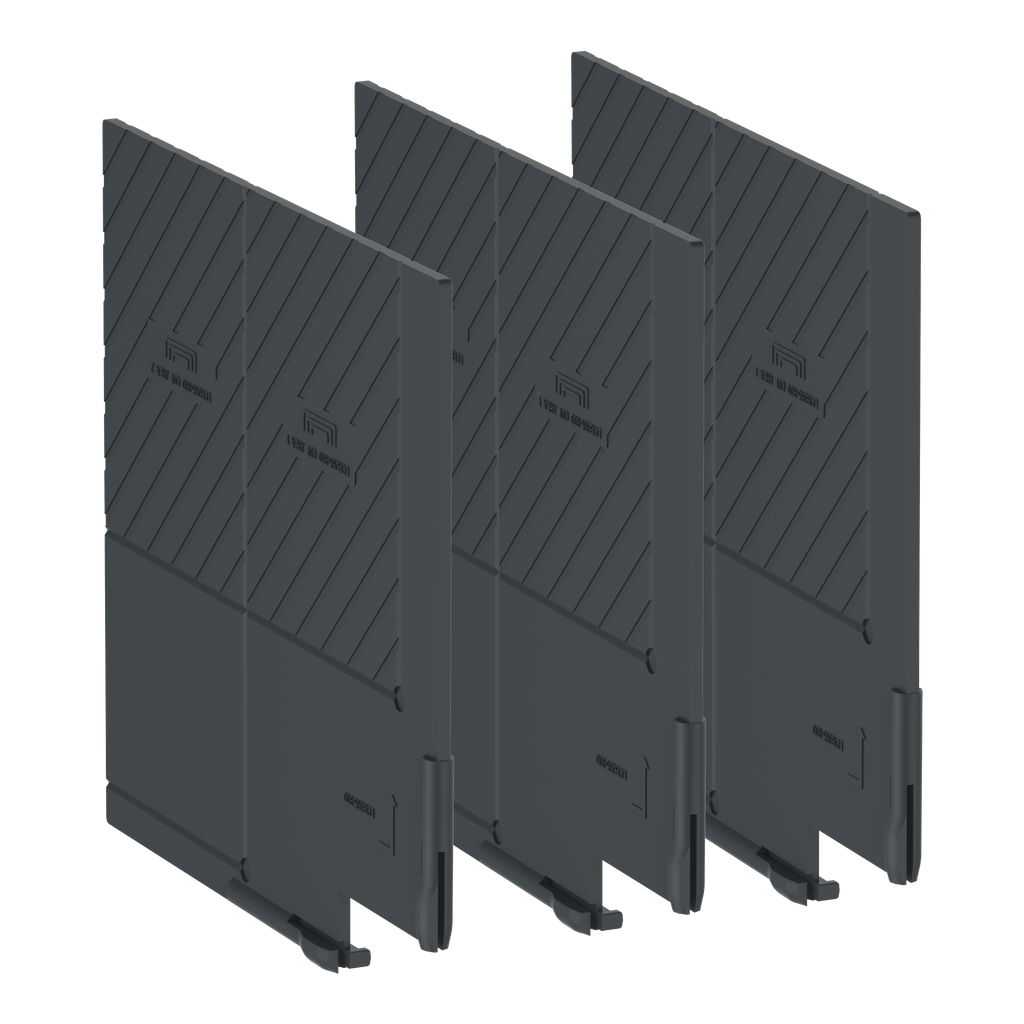

LA9G4801
Phase separator,TeSys Giga contactor,for LC1G115-800,4 pole
These accessories are phase separator for TeSys Giga 115-500 contactor. It is used to 4 Poles electrical circuit. These phase barriers are accessories used to reinforce insulation at the power connection points. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2105013 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2105013 |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Height | 2 mm |
| [Ui] Rated Insulation Voltage | 1000 V |
| Net Weight | 0.06 kg |
| Width | 117.6 mm |
| Depth | 81.2 mm |
| Product Compatibility |
|
| Country of Origin | China |
| Width | 117.6 mm |
| Height | 2 mm |
| Weight | 0.06 kg |
| Accessory / Separate Part Category | installation accessories |
| Product Or Component Type | phase barrier |
| Poles Description | 4P |
| Quantity Per Set | set of 3 |
| Ambient Air Temperature For Operation | -40-60 °C |
| Standards |
|
| Product Certifications |
|
| Pollution Degree | 3 IEC 60947-1 |
| Ambient Air Temperature For Storage | -60-80 °C |
| Operating Altitude |
|
