LA9G4712

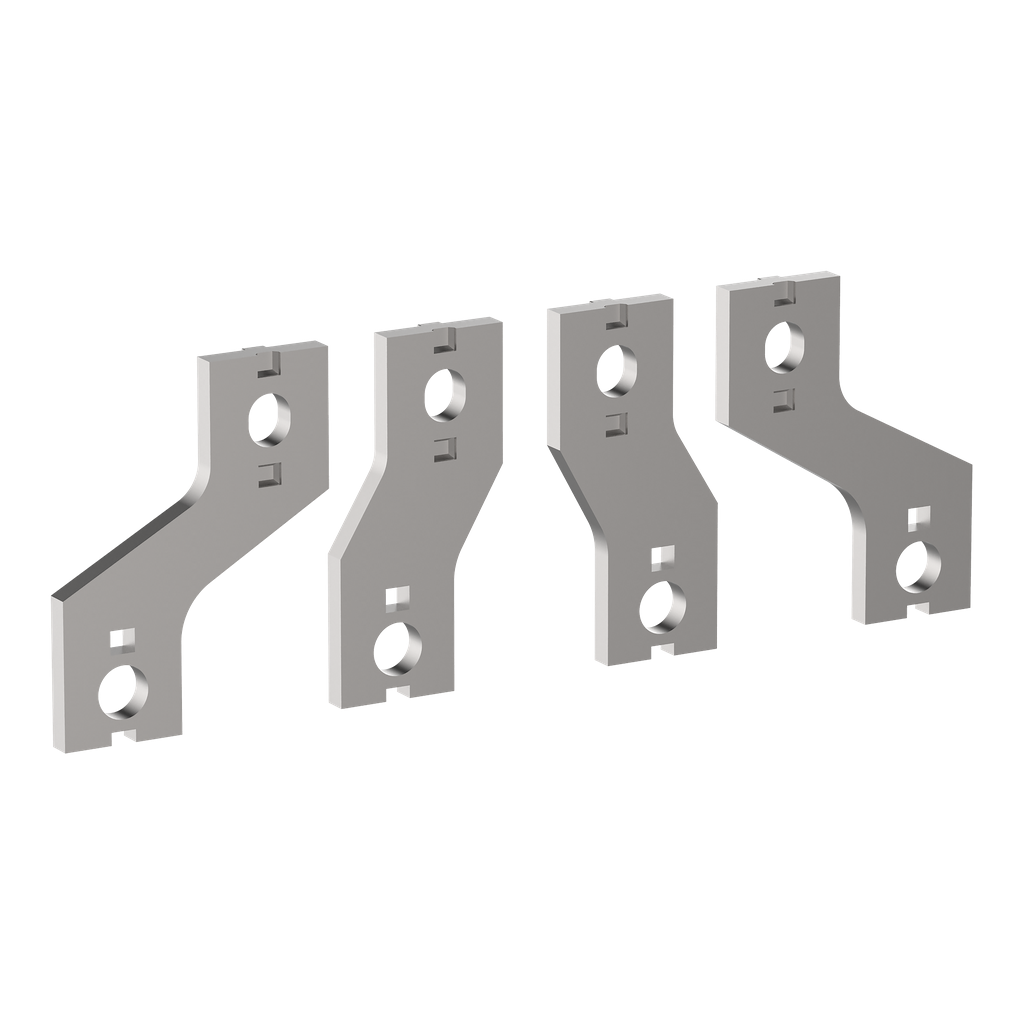

Spreader Kit,TeSys Giga contactor,for LC1G265-500,4 pole,box lug connections,45-70 mm pole pitch
These accessories are spreader kit for TeSys Giga 265-500 contactor. It is used to 4 Poles electrical circuit. They are screwed to the contactor terminals to increase the pitch between poles from 45mm to 70mm. The rated current is up to 500 A. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL |
|---|---|
| Ambient Air Temperature For Operation | -40-60 °C |
| Standards |
|
| Pollution Degree | 3 IEC 60947-1 |
| Ambient Air Temperature For Storage | -60-80 °C |
| Operating Altitude |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2105013 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2105013 |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Height | 6 mm |
| Net Weight | 0.52 kg |
| Width | 55 mm |
| Depth | 85 mm |
| Product Compatibility | LC1G265...500 |
| Country of Origin | China |
| Width | 55 mm |
| Height | 6 mm |
| Weight | 0.52 kg |
| Range Compatibility |
|
| Accessory / Separate Part Category | connection accessories |
| Product Or Component Type | spreader |
| Poles Description | 4P |
| Quantity Per Set | set of 4 |
| Device Short Name | LA9G |
