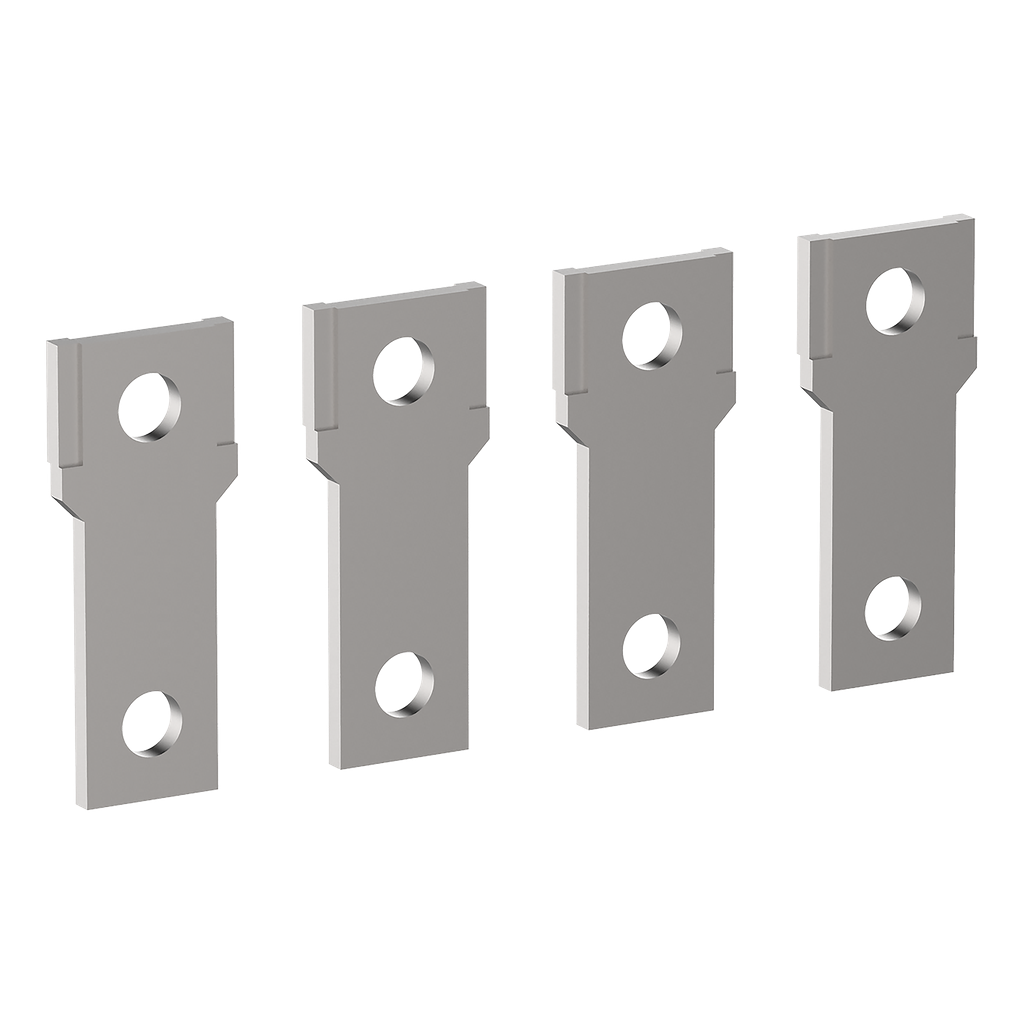

LA9G4601
Straight terminal extension,TeSys Giga contactor,for LC1G115-225,4 pole
These accessories are straight terminal extension bars for Tesys Giga 115-225 contactor. It is used to 4 Poles electrical circuit. These terminal extensions can be attached to the standard terminals. The rated current is up to 225 A. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | China |
|---|---|
| Width | 3 mm |
| Height | 58 mm |
| Weight | 0.12 kg |
| Range Compatibility |
|
| Accessory / Separate Part Category | connection accessories |
| Product Or Component Type | terminal extension |
| Poles Description | 4P |
| Quantity Per Set | set of 4 |
| Device Short Name | LA9G |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2105013 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2105013 |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Ambient Air Temperature For Operation | -40-60 °C |
| Standards |
|
| Pollution Degree | 3 IEC 60947-1 |
| Ambient Air Temperature For Storage | -60-80 °C |
| Operating Altitude |
|
| Height | 58 mm |
| Net Weight | 0.12 kg |
| Width | 3 mm |
| Depth | 24 mm |
| Product Compatibility | LC1G115...225 |
