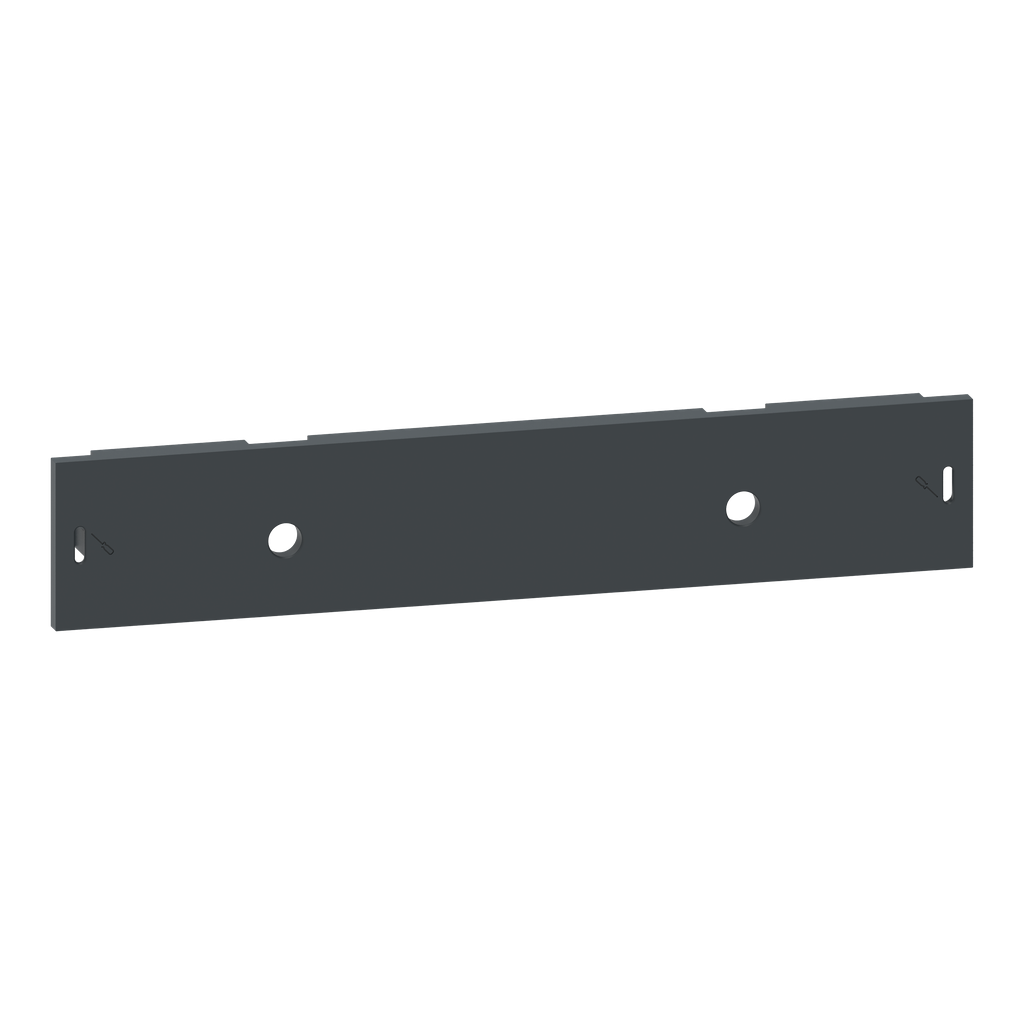

LA9G3706
Contactor accessory, front protection cover, TeSys Giga, for terminals between LC1G630-800 and LR9G630, IP20
These accessories are front protection cover for TeSys LR9G630 thermal overload relay. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Country of Origin | China |
| Width | 210 mm |
| Height | 13.5 mm |
| Weight | 0.065 kg |
| Range Of Product | TeSys G |
| Product Or Component Type | plate |
| Range | TeSys |
| Poles Description | 3P |
| Range Compatibility | TeSys G |
| Product Compatibility | LR9G630 |
| Device Short Name | LA9G |
| Height | 13.5 mm |
| Net Weight | 0.065 kg |
| Quantity Per Set | set of 1 |
| Width | 210 mm |
| Depth | 51.7 mm |
| Ambient Air Temperature For Operation | -25-60 °C |
| Standards |
|
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Pollution Degree | 3 IEC 60947-1 |
| Ambient Air Temperature For Storage | -60-80 °C |
| Operating Altitude |
|
