LA9G3705

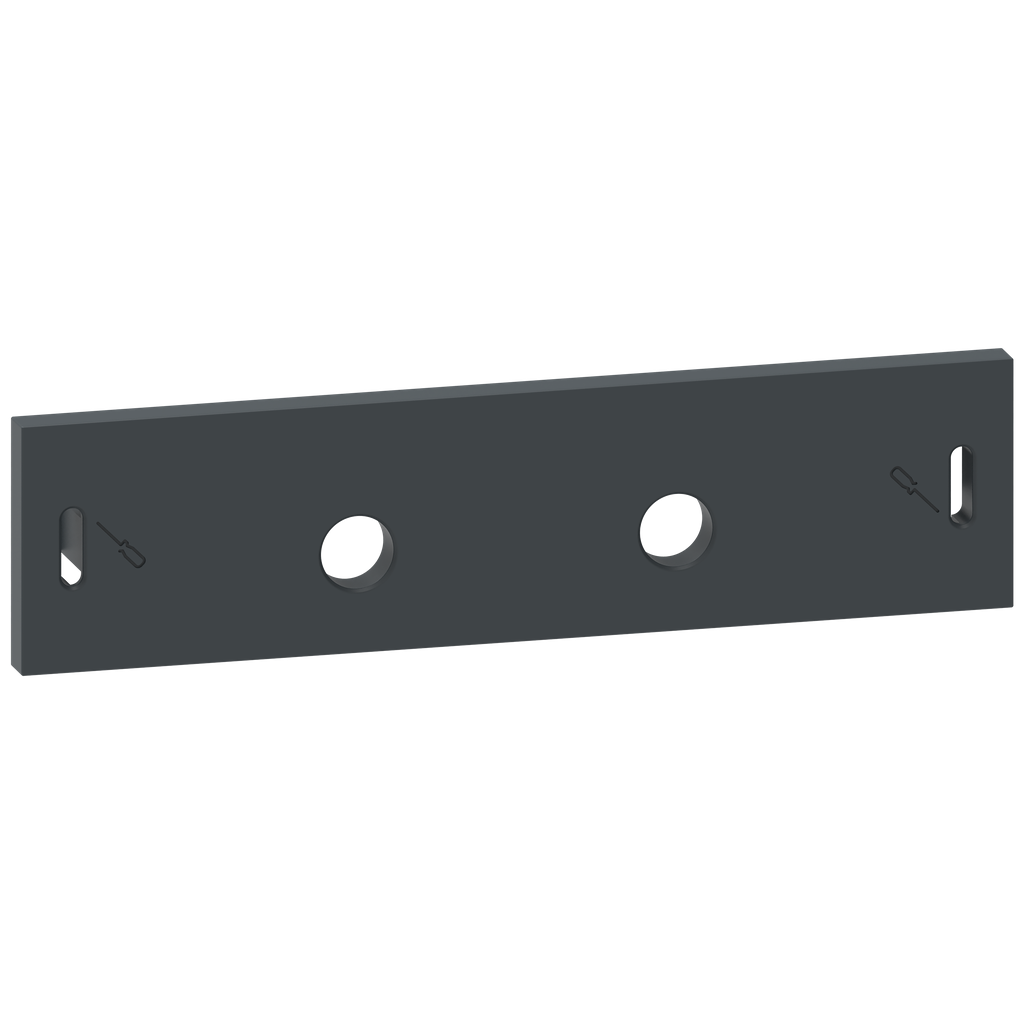

Front protection cover, for TeSys Giga electronic overload relay LR9G500
These accessories are front protection cover for TeSys LR9G500 thermal overload relay. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | China |
|---|---|
| Width | 40 mm |
| Height | 20 mm |
| Weight | 0.16 kg |
| Range Of Product | TeSys G |
| Product Or Component Type | plate |
| Range | TeSys |
| Poles Description | 3P |
| Range Compatibility | TeSys G |
| Product Compatibility | LR9G500 |
| Device Short Name | LA9G |
| Height | 20 mm |
| Net Weight | 0.16 kg |
| Quantity Per Set | set of 1 |
| Width | 40 mm |
| Depth | 140 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Ambient Air Temperature For Operation | -25-60 °C |
| Standards |
|
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Pollution Degree | 3 IEC 60947-1 |
| Ambient Air Temperature For Storage | -60-80 °C |
| Operating Altitude |
|
