LA9G3673

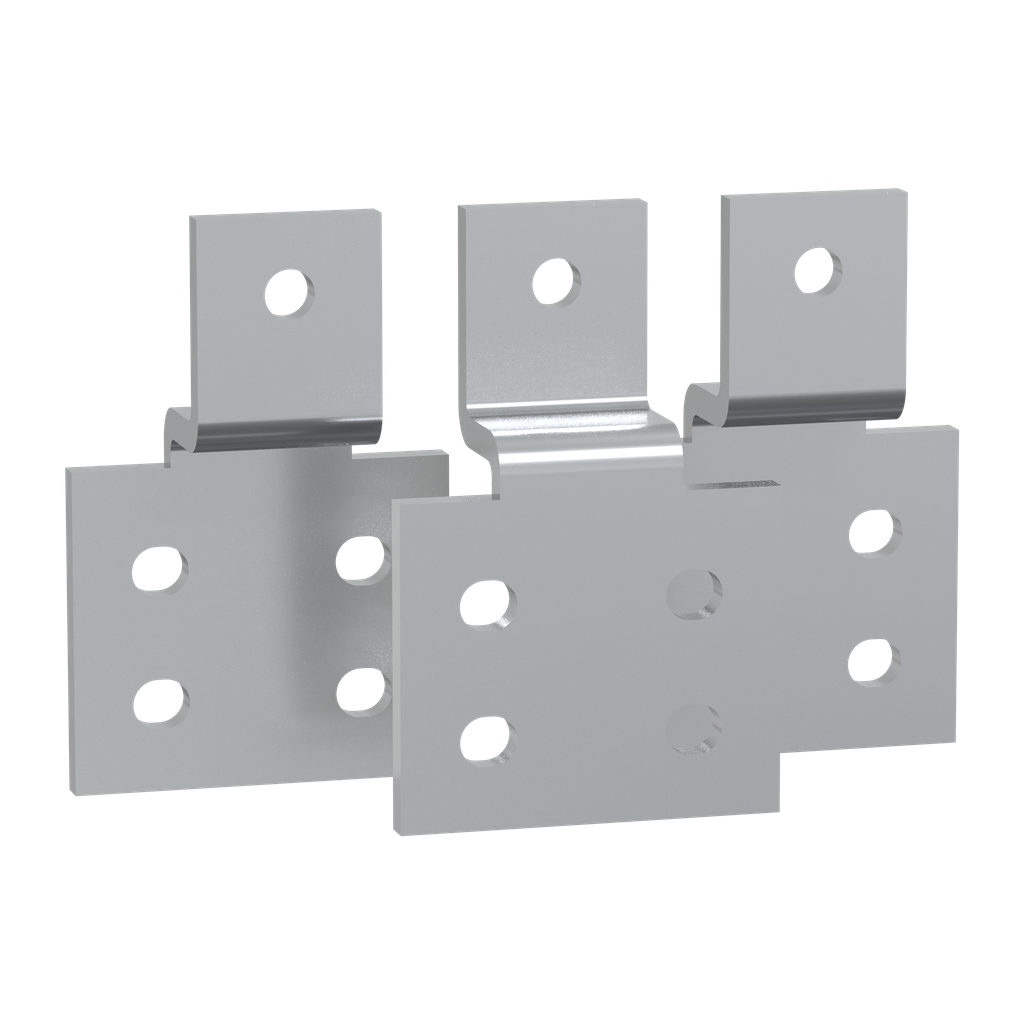

Contactor accessory, terminal extension, right angle large terminal, TeSys Giga, LC1G630-800, 3 pole
These accessories are right angled large terminal extension bars for TeSys Giga 630-800 contactor. It is used to 3 Poles electrical circuit. These terminal extensions can be attached to the standard terminals. The rated current is up to 800 A. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Height | 170 mm |
|---|---|
| Range Compatibility | TeSys LC1G |
| Net Weight | 2.79 kg |
| Connector Type | large |
| Quantity Per Set | set of 3 |
| Width | 100 mm |
| Depth | 57 mm |
| Product Compatibility |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2105013 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2105013 |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Ambient Air Temperature For Operation | -40-60 °C |
| Standards |
|
| Pollution Degree | 3 IEC 60947-1 |
| Ambient Air Temperature For Storage | -60-80 °C |
| Operating Altitude |
|
| Country of Origin | France |
| Width | 100 mm |
| Height | 170 mm |
| Weight | 2.79 kg |
| Accessory / Separate Part Category | extension accessories |
| Product Or Component Type | terminal extension |
| Range | TeSys |
| Device Short Name | LA9G |
