LA9G3653

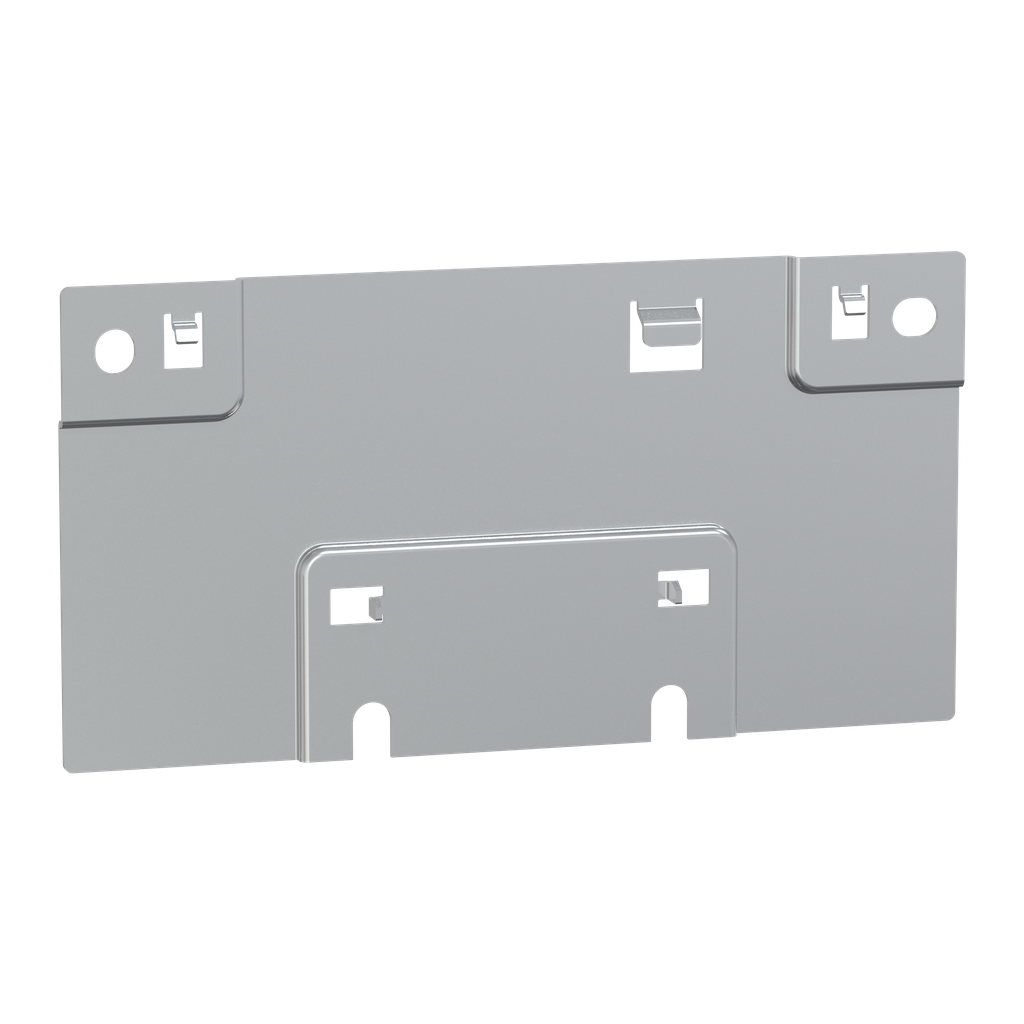

Contactor accessory, mounting base, TeSys Giga, align LR9G630 with LC1G630-800
These accessories are mounting base for TeSys LR9G630 align with LC1G630-G800. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | China |
|---|---|
| Weight | 1.2 kg |
| Range Compatibility | TeSys G LC1G contactor |
| Accessory / Separate Part Category | installation accessories |
| Product Or Component Type | mounting base |
| Range | TeSys |
| Quantity Per Set | set of 1 |
| Product Compatibility |
|
| Device Short Name | LA9G |
| Net Weight | 1.2 kg |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| [Ie] Rated Operational Current | 800 A |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Ambient Air Temperature For Operation | -40-60 °C |
| Standards |
|
| Pollution Degree | 3 IEC 60947-1 |
| Ambient Air Temperature For Storage | -60-80 °C |
| Operating Altitude |
|
Documents
- OLR Mounting Base Instruction Sheet - NNZ4806801-01 (pdf)
- Spec Sheet
- TeSys Catalogue - 2022 - Chapter B9 - Giga high power contactors - B9+-+Giga+High+power+contactors_EN+(web) (pdf)
- TeSys - Catalog 2024 - Innovative and connected solutions for motor starters - MKTED210011EN (pdf)
- TeSys Catalogue - 2022 - Chapter B11 - Overload relays TeSys LRK, Deca, Giga, RM1, LT3 - B11+-+Overload+relays_EN+(web) (pdf)
