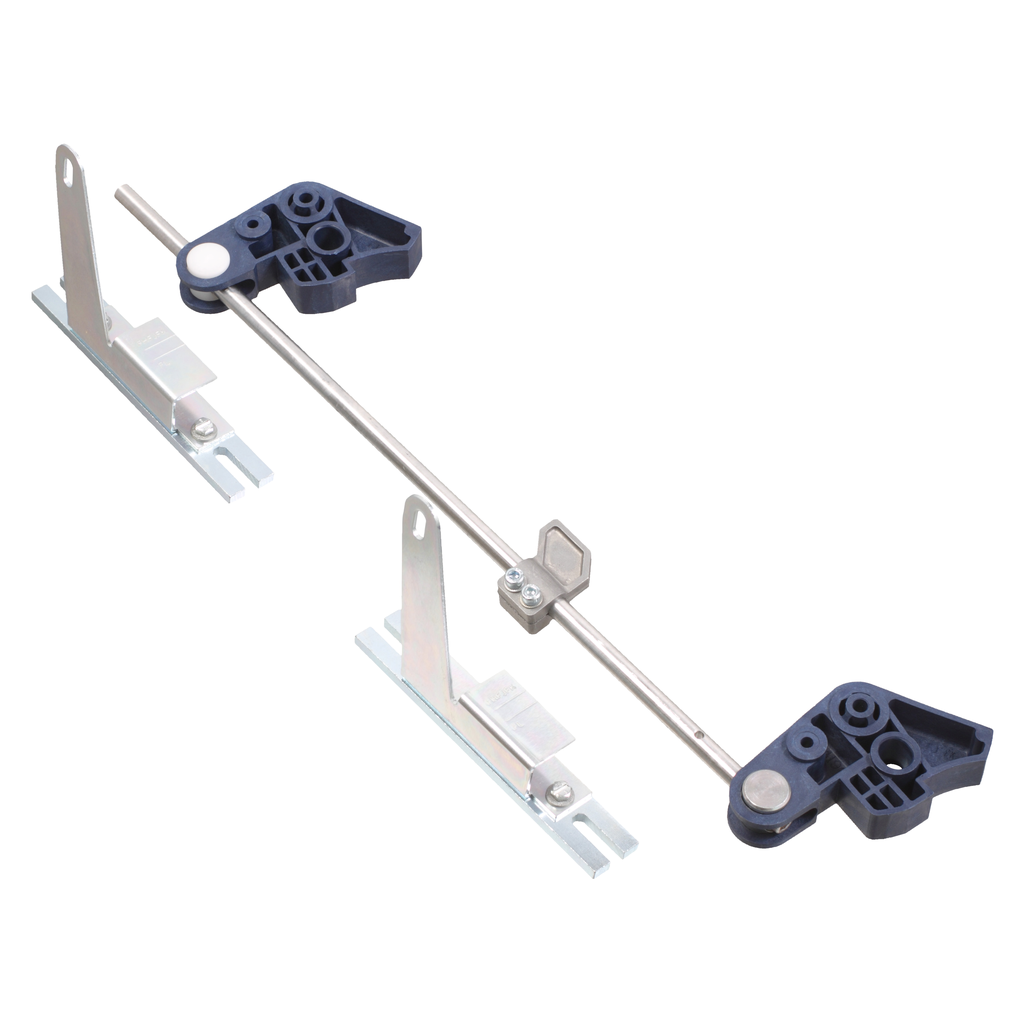

LA9FL4L - TeSys F- mechanical interlock - for 2 vertical contactors

LA9FL4L

Add to Quote Catalogue

Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1505009EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1505009EN
Eu Rohs Directive	Compliant with Exemptions
Mounting Support	asymmetrical AM1-EC rail
Net Weight	1.22 kg
Mounting Position	2 vertical
Interlocked Device	top LC1F630 3P or 4P top LC1F800 3P top CR1F630 3P or 4P bottom LC1F630 3P or 4P bottom LC1F800 3P bottom CR1F630 3P or 4P
Country of Origin	Czechia
Weight	1.22 kg
Interlocking Type	mechanical
Accessory / Separate Part Category	interlocking accessory
Product Or Component Type	mechanical interlock
Range	TeSys
Product Compatibility	LC1F CR1F
Device Short Name	LA9F
Warranty	18 months
